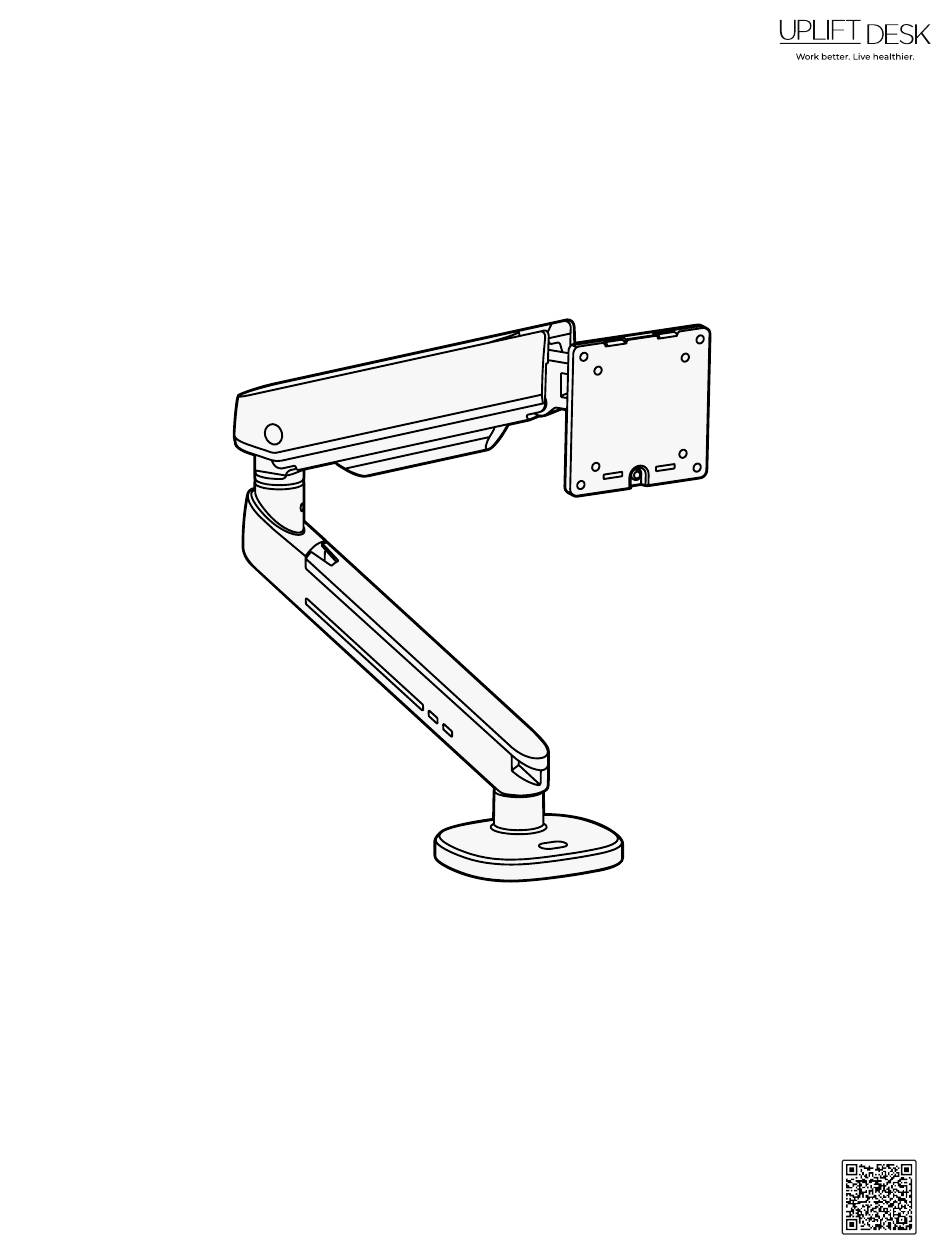

- Page 1 Domain RGB Single Monitor Arm MON071 Scan QR code for product webpage For assembly assistance, visit upliftdesk.com/contact, call 800-349-3839, or email support@upliftdesk.com ©2024 UPLIFT Desk®. All Rights Reserved...
- Page 2 Package Contents Base Clamp VESA Mount Wire Cover Bolt-Through Knob Upper Bolt-Through Plate Mounting Bolt Lower Bolt-Through Plate Upper Cable Cover Hardware Components M6 x 12 Screw Adhesive Pad VESA Bolt VESA Washer VESA Nut qty 4 qty 2 qty 2 M4 x 12 Screw M5 x 12 Screw VESA Monitor Washer...
- Page 3 Assembly Instructions Domain RGB Single Monitor Arm support monitors that weigh 4.4 lb to 19.8 lb. WARNING: This product contains a spring mechanism that can cause injury. Be careful when removing monitors as the arm can spring up when the weight of the monitor is removed. Step 1 - Determine Your Mounting Method There are two ways to attach the Domain RGB Single Monitor Arm to a desktop or table:...
- Page 4 Upper Clamp Step 2.A - Clamp Method 1. Use the 4mm Allen Wrench to loosen the Lower Clamp screws. Lower Clamp 2. Remove the Lower Clamp from the Upper Clamp. 3. Use the 4mm Allen Wrench to attach the Upper Clamp to the Base in the orientation shown with the four M6 x 12 Screws.
- Page 5 6. Set the Clamp and Base assembly onto the back edge of the desktop and tighten the Clamp. Note: Leave a gap of about ⅛" between the Clamp and back edge of the desktop for the Wire Cover attachment. 7. Attach the Wire Cover to the back of the Clamp. 8.
-
Page 6: Step 3 - Arm Assembly
5. Place the base assembly on top of the desktop while inserting the Mounting Bolt through the hole. 6. Slide the Lower Bolt-Through Plate onto the Mounting Bolt. 7. Thread the Bolt-Through Knob onto the Mounting Bolt and tighten to secure the Base to the desktop. WARNING: The arm is shipped with a cable tie holding the upper and lower sections of the arm together. - Page 7 D. Pass the connecting cable from the Base up through the Arm post into the lower arm section. E. Insert the Arm into the post of the Base until it is fully seated. F. Connect the Arm and Base cables. You will hear a click when the cables are properly connected.
- Page 8 Step 5 - Attach VESA Mount The VESA Mount is designed to fit the industry standard 75mm and 100mm VESA hole patterns. A. To avoid scratching the screen, place the monitor face down on a clean, soft, flat surface such as a carpet or blanket.
-
Page 9: Step 6 - Install The Monitor
Step 6 - Install the Monitor A. Holding the monitor on each side, hook the top of the VESA plate to the top of the VESA Mount. B. Slowly lower the bottom of the monitor until the VESA plate is flush with the VESA Mount. C. -
Page 10: Step 9 - Wire Management
Step 9 - Wire Management A. Route the monitor cables through the Upper Cable Cover and place it into position on the Arm. B. Route the monitor cables through the channel in the lower arm section then replace the lower cable management cover that was removed in Step 3. - Page 11 Step 10 - Connect Cables A. Connect the monitor cables following the instructions from the monitor manufacturer. B. Connect the monitor arm's LED USB cable to a USB-A port. Step 11 - LED Light Settings A. Place your finger on the capacitive touch button on the Base for about 3 seconds to turn the LEDs on (or off).
- Page 12 This manual is a component of this UPLIFT Desk product. This manual is a part of the scope of delivery, even if the item is resold. This manual is also available on the UPLIFT Desk website: upliftdesk.com. This manual is subject AI-MON071-1.0...
