Uplift Desk MON053 Quick Start Manual

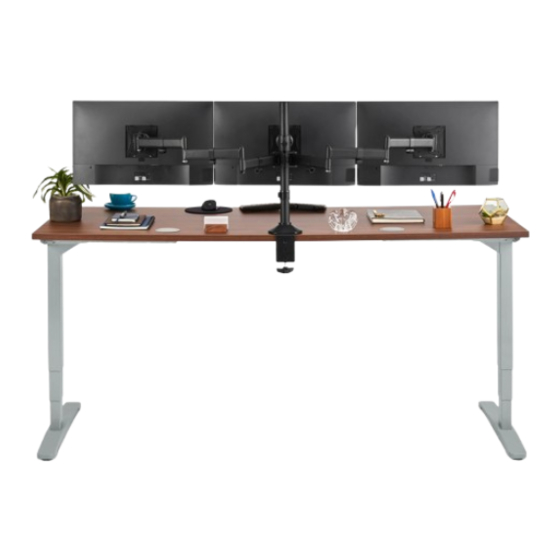

Moontower Triple Monitor Arm
SKU: MON053

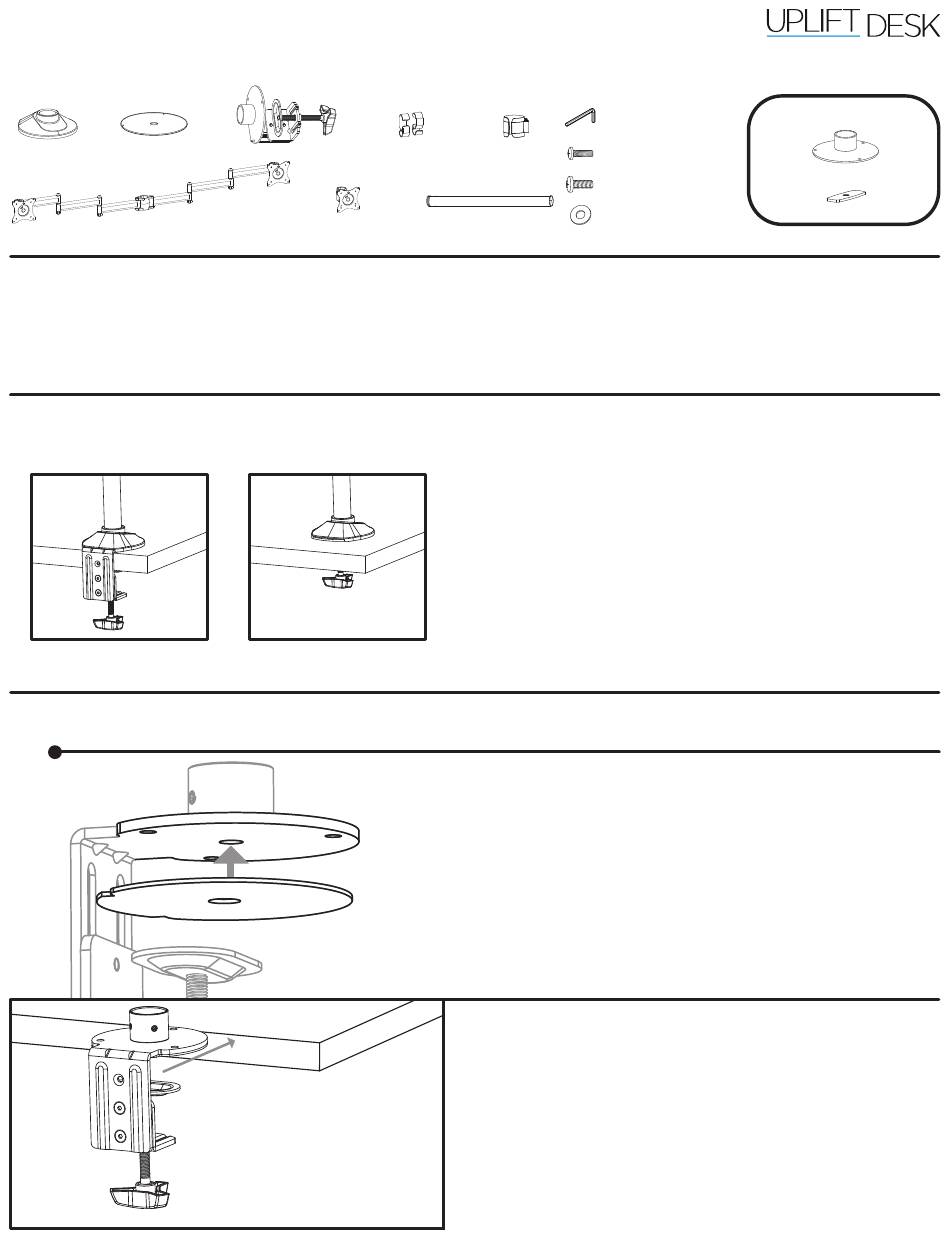

Package Contents
Base Cover Adhesive Pad
Wide Dual Arm
• Maximum monitor weight: 17.6 lb (each monitor)
• Recommended monitor size: up to 27"
• Desktop thickness compatibility: 0.4"-3.4" thick
There are two ways to attach the Moontower Triple Monitor Arm to your desktop. If you would like to attach it along the
back edge of your desktop, follow the Clamp Method instructions on this page. If you prefer to attach it through your desk-
top, follow the Bolt-Through Method instructions starting on page 2.
Clamp Method
Clamp Method
© UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com
Base
Base Vesa mount (x1)
Clamp Mount Arm Wire Clip
Upper Clamp
(qty 6)
Base Vesa mount (x1)
3mm Allen wrench
Upper Clamp
L
Adhesive Pad
Upper arm
Center Arm
Upper Clamp
Adhesive Pad
Upper arm Base screw (x4)
Lower Clamp
Lower arm
Adhesive Pad
Lower Clamp
Wire Cover
Lower arm
Upper base plate
Lower Clamp
Wire Cover
Lower base plate
Upper base plate
Wire Cover
Lower base plate
Bar
Lower base plate
Bar Handle
Bolt-Through Method
Allen Wrenches
Vesa mount (x1)
(set of three:
4mm Allen wrench
3mm Allen wrench 6mm Allen wrench
L M N
3mm, 5mm, 6mm)
M4x12 Screw (M-A)
Cable Clip
3mm Allen wrench 4mm Allen wrench 6mm Allen wrench
L M N
(qty 12)
M4x12 bolt (x4)
Upper arm Base screw (x4)
M5x12 Screw (M-B)
4mm Allen wrench 6mm Allen wrench
M N (qty 12)
M4x12 bolt (x4) D5 Washers (x4)
Base screw (x4) M5x12 bolt (x4)
M5 Washer (M-C)
Pole
Lower arm (qty 12)
N Bolt (x4)
M4x12 bolt (x4) D5 Washers (x4)
M5x12 bolt (x4)
Upper base plate N Bolt (x4)
O Bolt (x4)
N Bolt (x4)
O Bolt (x4)
Bar Handle
Handle
Step 1
Determine your mounting method. There are two
ways to attach the Moontower Triple Monitor Arm to
your desktop:
Clamp Method: If you would like to attach the monitor
arm along the back edge of your desktop, follow the
Clamp Method instructions (Steps 2 - 3).
Bolt-Through Method: If you prefer to attach the
monitor arm through your desktop, skip Steps 2 - 3
and follow the Bolt-Through Method instructions
(Steps 4 - 7).
Step 2 (Clamp Method)
Peel the adhesive backing off of the Adhesive Pad and
attach it to the bottom of the Clamp Mount as shown.
Align the Pad with the front edge of the Clamp Mount
base first, then work to the back.
Step 3 (Clamp Method)
A. Slide the Clamp Mount onto the back of the desk-
top, then tighten the bolt of the clamp onto your
desktop using the knob.
B. If you chose the Clamp Method for mounting,
please skip the Bolt-Through Method (Steps 4-7)
and proceed with Step 8.
Bolt-Through assembly
D5 Washers (x4) Bolt-Through Mount
M5x12 bolt (x4)
Bolt-Through Plate
O Bolt (x4)
Parts for
