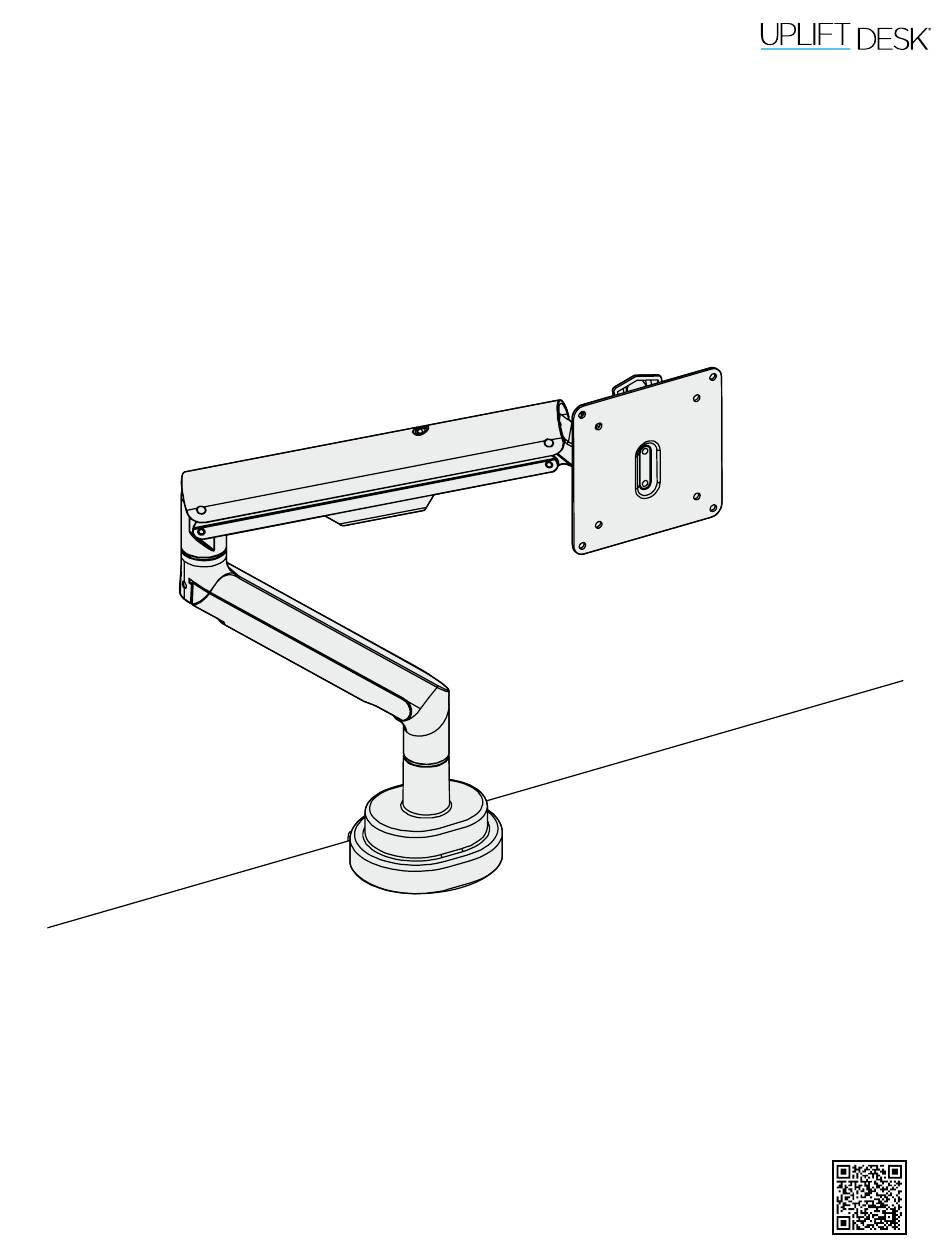

- Page 1 Zilker Single Monitor Arm MON001 Scan QR code for product webpage For assembly assistance, visit upliftdesk.com/contact, call 800-349-3839, or email info@upliftdesk.com ©2023 UPLIFT Desk®. All Rights Reserved...
- Page 2 Safety and Warnings CAUTION: Read all instructions before assembly. Failure to assemble or operate properly may result in damage or personal injury. Retain manual for future reference. Warning: This product contains a spring mechanism that can cause injury. Be careful when removing monitors as the arm can spring up when the weight of the monitor is removed.
- Page 3 3. bottom bolt clamp Note: If you’re mounting this to an UPLIFT V2 4-Leg Desk, 2.5’’ will be the maximum thickness that will work with the clamp. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 4 Step 2.2 - Bolt-through Method To mount your monitor arm through a hole in your desktop, first measure the hole. It must be between a minimum of 0.4’’ and a maximum of 3.15’’ in diameter. Prepare the Base for the Bolt-through mount by first loosening the screw under the clamp with the 6 mm Allen Wrench.
- Page 5 Make sure the VESA Mount is securely fastened to your monitor before moving on to the next step. Note: make sure the tab on the VESA Mount is facing the top of your monitor. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 6 Step 6 A. Insert your monitor and VESA Mount assembly into the monitor joint at the end of the Spring Arm. Hold it firmly as you insert it until you feel it click into place. B. The Zilker Spring Arm tension is factory set for the lightest monitor weight.
- Page 7 Notes © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 8 Study this manual carefully. If this product is sold, please provide this manual to the buyer, installers, or support personnel operating the product. Copyright Notice: This manual is a component of this UPLIFT Desk product. This manual is a ©...
