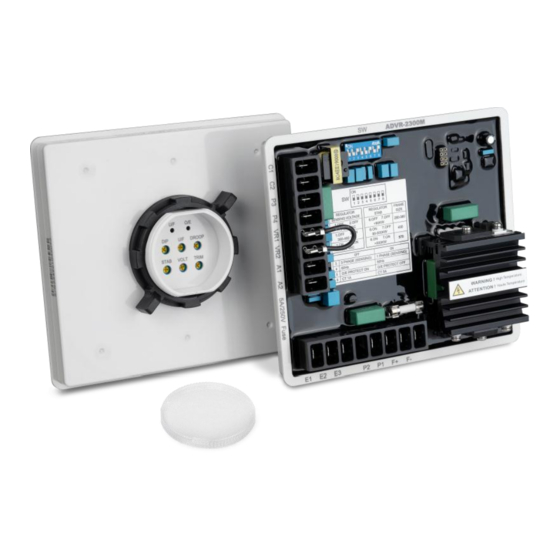

Universal hybrid analog-digital voltage regulator
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

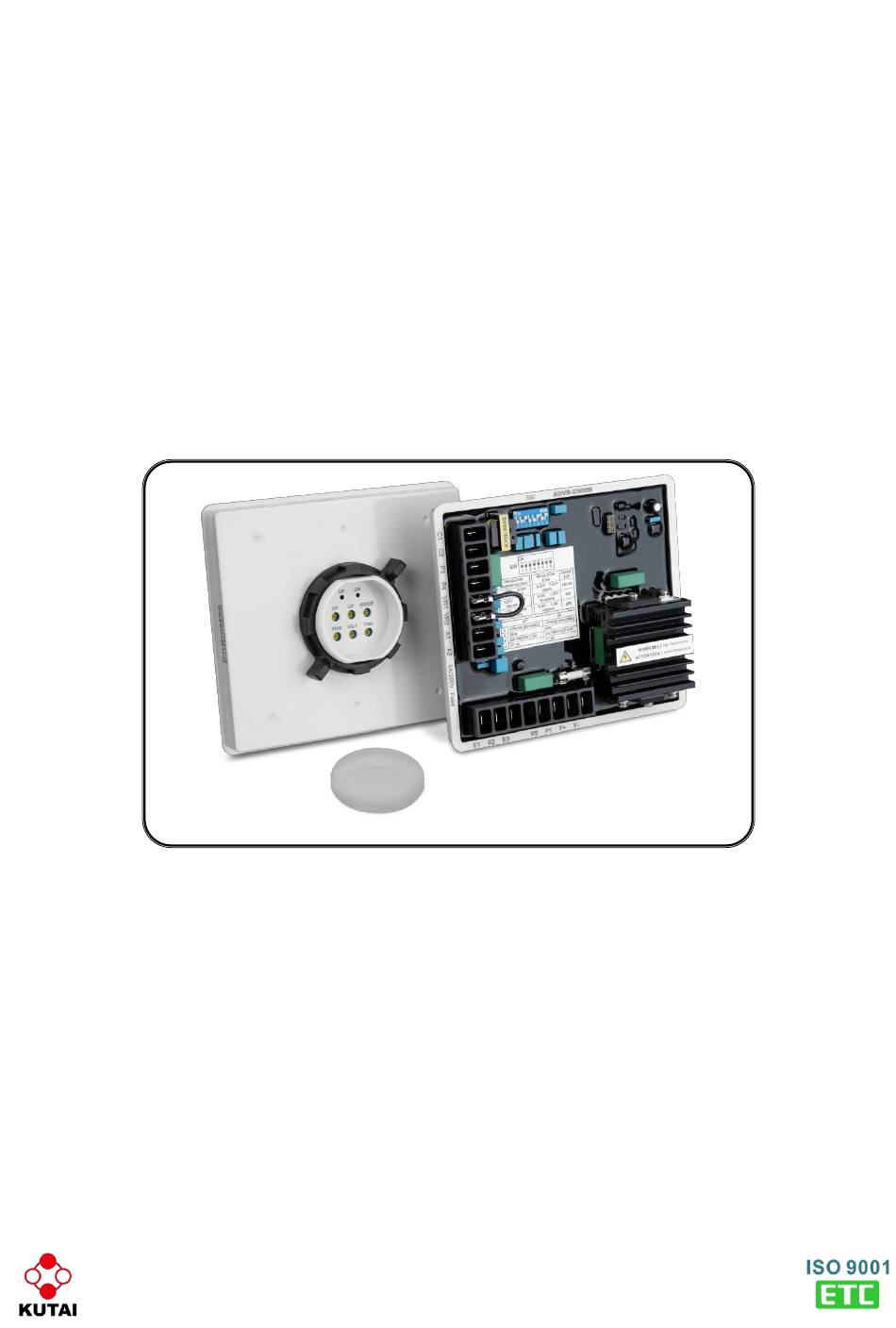

ADVR-2300M
Universal Hybrid Analog-Digital
Voltage Regulator Operation Manual
Hybrid Universal Analog / Digital 1 or 3 Phase 3.5 Amp Self Excited,
Shunt, Auxiliary Winding, Harmonic Power or PMG Automatic
Voltage Regulator Easy to Set-Up and Program Install Manual
Use with KUTAI IVT-1260 / IVT-2460 add-on module can boost
generator motor starting capacity.
KUTAI ELECTRONICS INDUSTRY CO., LTD.
TEL : +886-7-8121771
FAX : +886-7-8121775
Website : www.kutai.com.tw
Headquarters : No.3, Ln. 201, Qianfu St., Qianzhen Dist., Kaohsiung City 80664, Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADVR-2300M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kutai electronics ADVR-2300M

Summary of Contents for Kutai electronics ADVR-2300M

  • Page 1 Shunt, Auxiliary Winding, Harmonic Power or PMG Automatic Voltage Regulator Easy to Set-Up and Program Install Manual Use with KUTAI IVT-1260 / IVT-2460 add-on module can boost generator motor starting capacity. KUTAI ELECTRONICS INDUSTRY CO., LTD. TEL : +886-7-8121771 FAX : +886-7-8121775 Website : www.kutai.com.tw...

  • Page 2: Section 1 : Specification

    Soft Start Ramp Time 5.91 (L) x 5.31 (W) x 2.19 (H) inch 4 seconds +/- 10% Weight Typical System Response 460 g +/- 2% Less than 20 milliseconds 1.01 lb +/- 2% EMI Suppression Internal electromagnetic interference filtering ___________________________________________________________________________________________ ADVR-2300M...

  • Page 3: Section 2 : Outline / Size / Installation Reference

    SW6 & SW7 Sets Generator Capacity 380-480 VAC 90-500KW SW8 Sets Capacity of Droop CT 1.ON 2.ON 6.ON 7.ON 600 VAC >500KW 3 PHASE (SENSING) 1 PHASE (SENSING) 60Hz 50Hz O/E PROTECT ON O/E PROTECT OFF CT 1A CT 5A ___________________________________________________________________________________________ ADVR-2300M...

  • Page 4: Section 4 : Adjustments

    P3 P4 Aux. Power Input P4 and P1 are Set the DIP SW Correctly Set the DIP SW Correctly concurrent (internal short circuit) ADVR-2300M ADVR-2300M VR1 & VR2 are Normally Bridged and Voltage is Adjusted on the 1K Ohm 1W...
  • Page 5 OVLD Stator Wires Generator Figure 6 ADVR-2300M & IVT-1260 / IVT-2460 Wiring Connection ATTENTION 1. All AC voltage readings are Root Mean Square (RMS) value. 2. Use a remote 500 ohms 1 watt external VR for +/- 5% adjustment range. (keep shorted if not used) 3.
