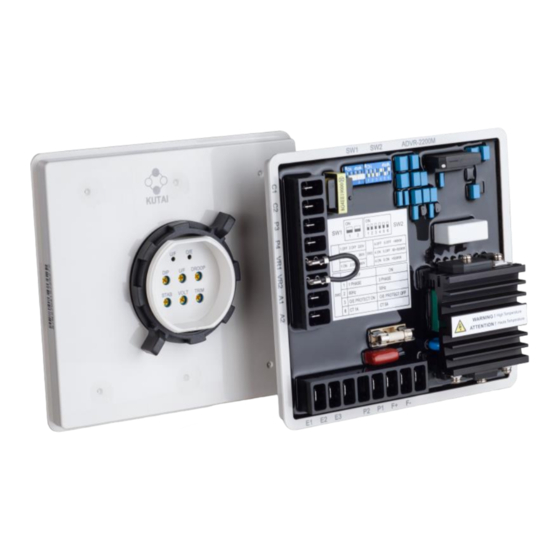

ADVR-2200M
Universal Hybrid Analog-Digital
Voltage Regulator Operation Manual
Hybrid Universal Analog / Digital 1 or 3 Phase 3.5 Amp Self Excited,
Shunt, Auxiliary Winding, Harmonic Power or PMG Automatic
Voltage Regulator Easy to Set-Up and Program Install Manual
Use with KUTAI IVT-1260 / IVT-2460 add-on module can boost
generator motor starting capacity.
KUTAI ELECTRONICS INDUSTRY CO., LTD.
TEL : +886-7-8121771
FAX : +886-7-8121775
Website : www.kutai.com.tw
Headquarters : No.3, Ln. 201, Qianfu St., Qianzhen Dist., Kaohsiung City 80664, Taiwan
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kutai electronics ADVR-2200M
Summary of Contents for Kutai electronics ADVR-2200M
- Page 1 Shunt, Auxiliary Winding, Harmonic Power or PMG Automatic Voltage Regulator Easy to Set-Up and Program Install Manual Use with KUTAI IVT-1260 / IVT-2460 add-on module can boost generator motor starting capacity. KUTAI ELECTRONICS INDUSTRY CO., LTD. TEL : +886-7-8121771 FAX : +886-7-8121775 Website : www.kutai.com.tw...
-
Page 2: Section 1 : Specification
Soft Start Ramp Time 5.91 (L) x 5.31 (W) x 2.19 (H) inch 4 seconds +/- 10% Weight Typical System Response 470 g +/- 2% Less than 20 milliseconds 1.04 lb +/- 2% EMI Suppression Internal electromagnetic interference filtering ___________________________________________________________________________________________ ADVR-2200M... -
Page 3: Section 2 : Outline / Size / Installation Reference
SW1-1 & SW1-2 Sets the Generators Sensing Voltage SW2-1 Set Sensing Voltage for 1 or 3 Phase SW2-2 Set Generator Frequency SW2-3 Set Over Excitation Protection ON or OFF SW2-4 & 5 Sets Generator Capacity SW2-6 Sets Capacity of Droop CT ___________________________________________________________________________________________ ADVR-2200M... -
Page 4: Section 4 : Adjustments
P3 P4 Aux. Power Input P4 and P1 are Set the DIP SW Correctly Set the DIP SW Correctly concurrent (internal short circuit) ADVR-2200M ADVR-2200M VR1 & VR2 are Normally Bridged and Voltage is Adjusted on the 1K Ohm 1W... - Page 5 OVLD Stator Wires Generator Figure 6 ADVR-2200M & IVT-1260 / IVT-2460 Wiring Connection ATTENTION 1. All AC voltage readings are average value only. 2. Use a remote 500 ohms 1 watt external VR for +/- 5% adjustment range. (keep shorted if not used) 3.
