Kutai electronics ATS-34 Ver1.0 Operation Manual

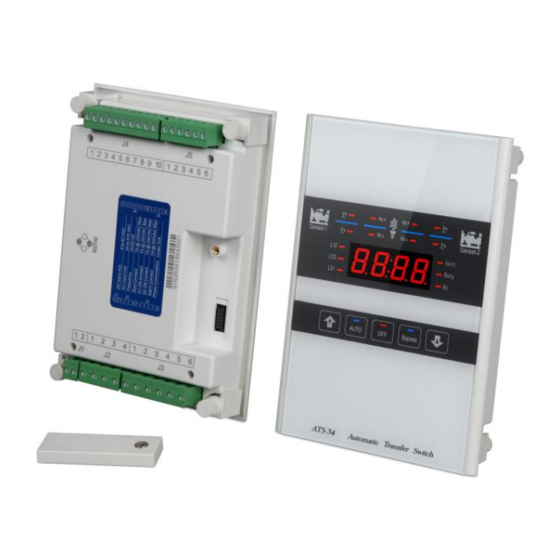

Automatic transfer switch controller for dual generators with redundant system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

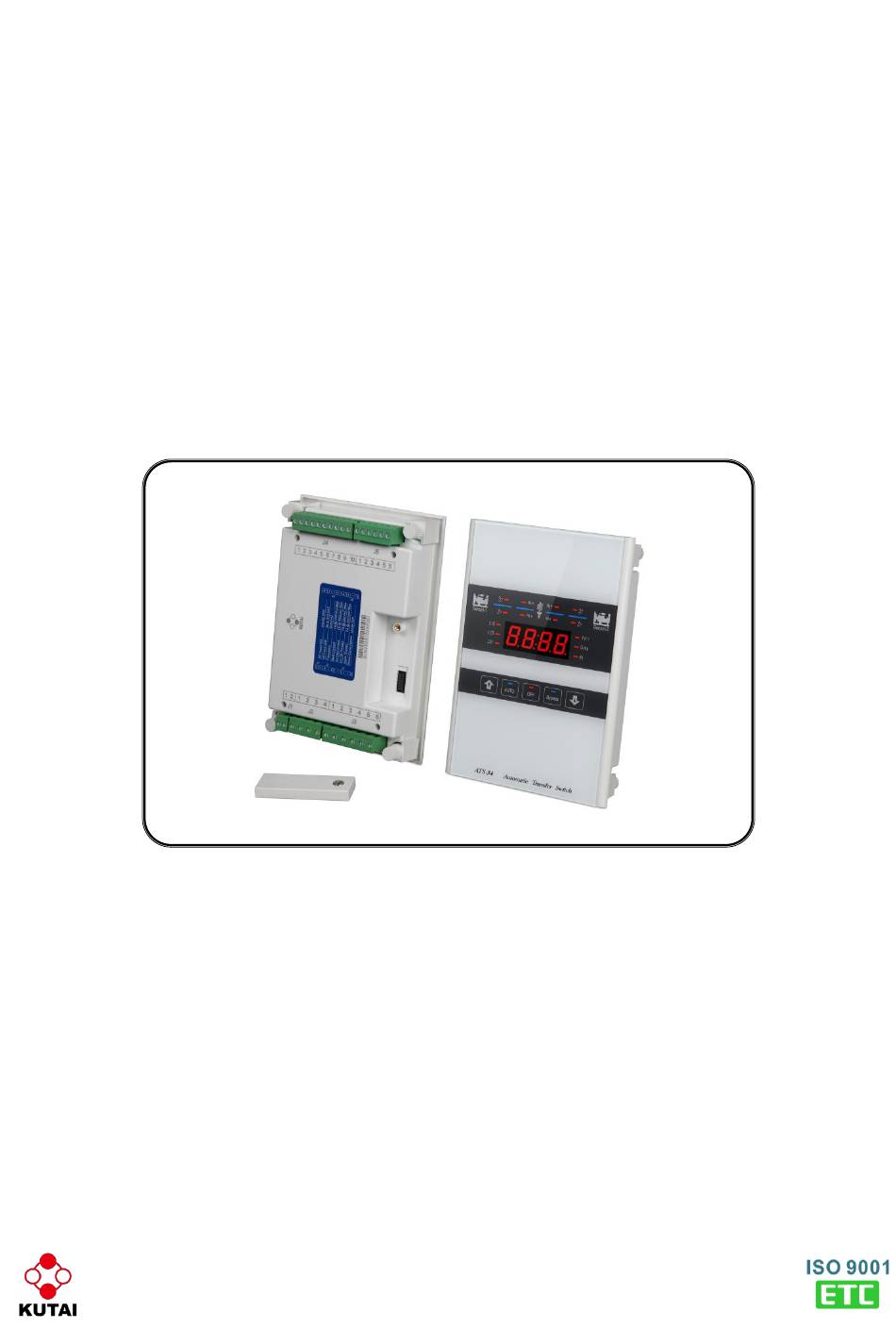

ATS-34
Ver1.0
Automatic Transfer Switch
Controller For Dual Generators
With Redundant System Operation Manual
KUTAI ELECTRONICS INDUSTRY CO., LTD.
TEL : +886-7-8121771
FAX : +886-7-8121775
Website : www.kutai.com.tw
Headquarters : No.3, Ln. 201, Qianfu St., Qianzhen Dist., Kaohsiung City 80664, Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATS-34 Ver1.0 and is the answer not in the manual?

Questions and answers

Related Manuals for Kutai electronics ATS-34 Ver1.0

Summary of Contents for Kutai electronics ATS-34 Ver1.0

  • Page 1 Ver1.0 Automatic Transfer Switch Controller For Dual Generators With Redundant System Operation Manual KUTAI ELECTRONICS INDUSTRY CO., LTD. TEL : +886-7-8121771 FAX : +886-7-8121775 Website : www.kutai.com.tw Headquarters : No.3, Ln. 201, Qianfu St., Qianzhen Dist., Kaohsiung City 80664, Taiwan...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Section Page SECTOIN 1 : INTRODUCTION 1.1 Preliminary Comments And Safety Precautions ..................3 1.2 Product Overview............................3 1.3 Functions / Features ........................... 3 SECTOIN 2 : OPERATION PANEL 2.1 General ............................... 4 2.2 Display Window ............................4 2.3 Operate Touch Buttons ..........................

  • Page 3: Sectoin 1 : Introduction

    SECTOIN 1 : INTRODUCTION The ATS-34 control unit features： ● Microprocessor based with touch screen. 1.1 Preliminary Comments and Safety Precautions ● Smart touch screen (touch sensor) design. ● Compact size with user-friendly LED display. This document covers installation, operation and ●...

  • Page 4: Sectoin 2 : Operation Panel

    Feature 1 : Generator Duty Cycle – start attempts SECTOIN 2 : OPERATION PANEL settings 2.1 General You can program the ATS-34 to switch the lead generator duty by time or start-run attempts. When the Get acquainted with the ATS-34： working generator times out, or runs a number of times ●...

  • Page 5: Operate Touch Buttons

    2.3 Operate Touch Buttons 2.3.3 Auto Button The front panel supports five sensitive capacitive touch When selecting the AUTO key, the ATS-34 runs in and release buttons. automatic mode lighting the corresponding LED to indicate the selection. The controller automatically starts the generator, transfer and retransfers from source to source as commanded by the features supplied and the preprogrammed setting.
  • Page 6 Information concerning the LEDs output Power available display for G1 and G2 Generator-2 Over Frequency Generator-1 Over Voltage Generator-2 Under Frequency Generator-1 Under Voltage Generator-1 Transfer Failure Generator-1 Over Frequency Generator-2 Transfer Failure Generator-1 Under Frequency Generator-1 Fail to Start Generator-2 Over Voltage Generator-2 Fail to Start Generator-2 Under Voltage...

  • Page 7: Sectoin 3 : Operation

    3.5 Programming Instruction SECTOIN 3 : OPERATION You program the ATS-34 from the front faceplate. 3.1 General To start, set the controller to OFF and press & hold the OFF button for 4 seconds. The word “Vr1.0” appears five functions of the ATS-34： on the display for 2 seconds, showing the software ●...
  • Page 8 Free software can be downloaded from App Store or Step 2 : Plug in tighten the screw on the KCU-XX Google Play by simply key in “Kutai” and hit search. module to the ATS-34 PCB. You have the option of using one of these communications modules.

  • Page 9: Voltage Adjustment

    Step 6：Press the “OFF” button to move to the next 3.7 Voltage Adjustment (If Needed) phase or until the word “End” appears on the screen. The ATS-34 voltage readings are factory set and To exit hold the “OFF” key at any time for 4 sec. calibrated.
  • Page 10 ___________________________________________________________________________________________ ATS-34...

  • Page 11: Line By Line Programming Table

    3.8 Line By Line Programming Table FACTORY LINE DESCRIPTION VALUE SETTING 00  1 Phase 01  3 Phase Is this ATS operating in 1 phase or 3 phase? 00) MCCB BTS type ATS (Single motor) 01) Mot type (MCCB with separate motor) 02) Air circuit breaker type (ACB) Select Switch ATS type 03) Double throw type (Without OFF position)

  • Page 12: Specification Summary

    Specification Summary DESCRIPTION SPECIFICATION  DC Power Supply Voltage 60 Vdc 50  510 Vac 50/60 Hz AC Voltage Measurement Range  70 Hz Frequency Measurement Range 7A @ 250 Vac Max Remote Start Contact 7A @ 250 Vac Max Generator-1 ON Contact 7A @ 250 Vac Max Generator-2 ON Contact...

  • Page 13: Unit Dimensions

    4.3 Unit Dimensions ( All Dimensions in mm. ) 4.4 Installation Reference Screw Panel Cut-out Silicon waterproof seal Fix bracket Screw Fix bracket A T S Metal door ___________________________________________________________________________________________ ATS-34...
  • Page 14 SECTION 5: TYPICAL WIRING 5.1 MCCB Type ATS Wiring Diagram (3P/4P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 15 5.2 MCCB Type ATS Wiring Diagram (2P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 16 5.3 MOT Type ATS Wiring Diagram (3P/4P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 17 5.4 MOT Type ATS Wiring Diagram (2P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 18 5.5 Air Circuit Breaker Type ATS Wiring Diagram (3P/4P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 19 5.6 Air Circuit Breaker Type ATS Wiring Diagram (2P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 20 5.7 Single Coil Double Throw Type ATS Wiring Diagram (3P/4P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 21 5.8 Single Coil Double Throw Type ATS Wiring Diagram (2P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 22 5.9 Dual Coil Double Throw Type ATS Wiring Diagram (3P/4P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 23 5.10 Dual Coil Double Throw Type ATS Wiring Diagram (2P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 24 5.11 KUTAI TS-XXX Type ATS Wiring Diagram (3P/4P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 25 5.12 KUTAI TS-XXX Type ATS Wiring Diagram (2P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 26 5.13 KME WN Type and AICHI WN type ATS Wiring Diagram (3P/4P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 27 5.14 KME WN Type and AICHI WN type ATS Wiring Diagram (2P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 28 5.15 SOCOMEC ATyS-3S type ATS Wiring Diagram (3P/4P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 29 5.16 SOCOMEC ATyS-3S type ATS Wiring Diagram (2P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 30 5.17 SOCOMEC ATyS-3e type ATS Wiring Diagram (3P/4P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 31 5.18 SOCOMEC ATyS-3e type ATS Wiring Diagram (2P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 32 5.19 SOCOMEC ATyS-6 type ATS Wiring Diagram (3P/4P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 33 5.20 SOCOMEC ATyS-6 type ATS Wiring Diagram (2P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 34 5.21 SOCOMEC ATyS-6e type ATS Wiring Diagram (3P/4P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 35 5.22 SOCOMEC ATyS-6e type ATS Wiring Diagram (2P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 36 5.23 MITSUBISHI MD type ATS Wiring Diagram (3P/4P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 37 5.24 MITSUBISHI MD type ATS Wiring Diagram (2P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 38 5.25 MERLIN GERIN MCB type ATS Wiring Diagram (3P/4P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 39 5.26 MERLIN GERIN MCB type ATS Wiring Diagram (2P 220 Vac) ___________________________________________________________________________________________ ATS-34...
  • Page 40 5.27 System Voltage different From AC220V wiring Diagram 380/440/480V 220V For AC220V System For AC380/440/480V System ___________________________________________________________________________________________ ATS-34...
