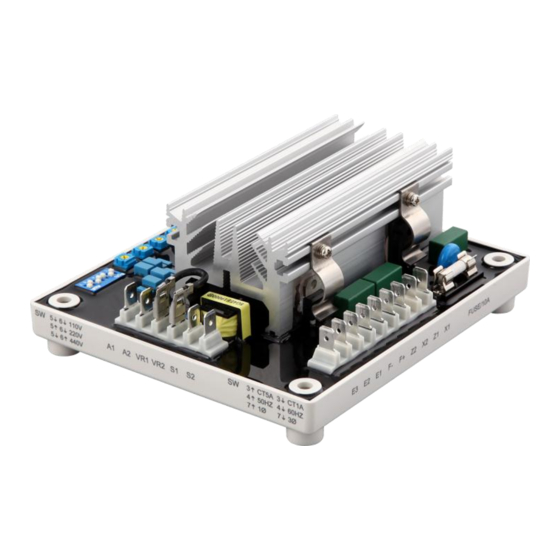

ADVR-083-400HZ
Universal Hybrid Analog-Digital
Voltage Regulator Operation Manual
Universal 400Hz Intermediate Frequency
Analog / Digital AVR, Single-phase / Three-phase Sensing
8 Amp Voltage Regulator for use with Auxiliary Winding, PMG, and
self-excited (SHUNT) brushless generators.
For Aviation and Military Spec 400Hz Generators
KUTAI ELECTRONICS INDUSTRY CO., LTD.
TEL : +886-7-8121771
FAX : +886-7-8121775
Website : www.kutai.com.tw
Headquarters : No.3, Ln. 201, Qianfu St., Qianzhen Dist., Kaohsiung City 806037, Taiwan
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kutai electronics ADVR-083-400HZ
Summary of Contents for Kutai electronics ADVR-083-400HZ

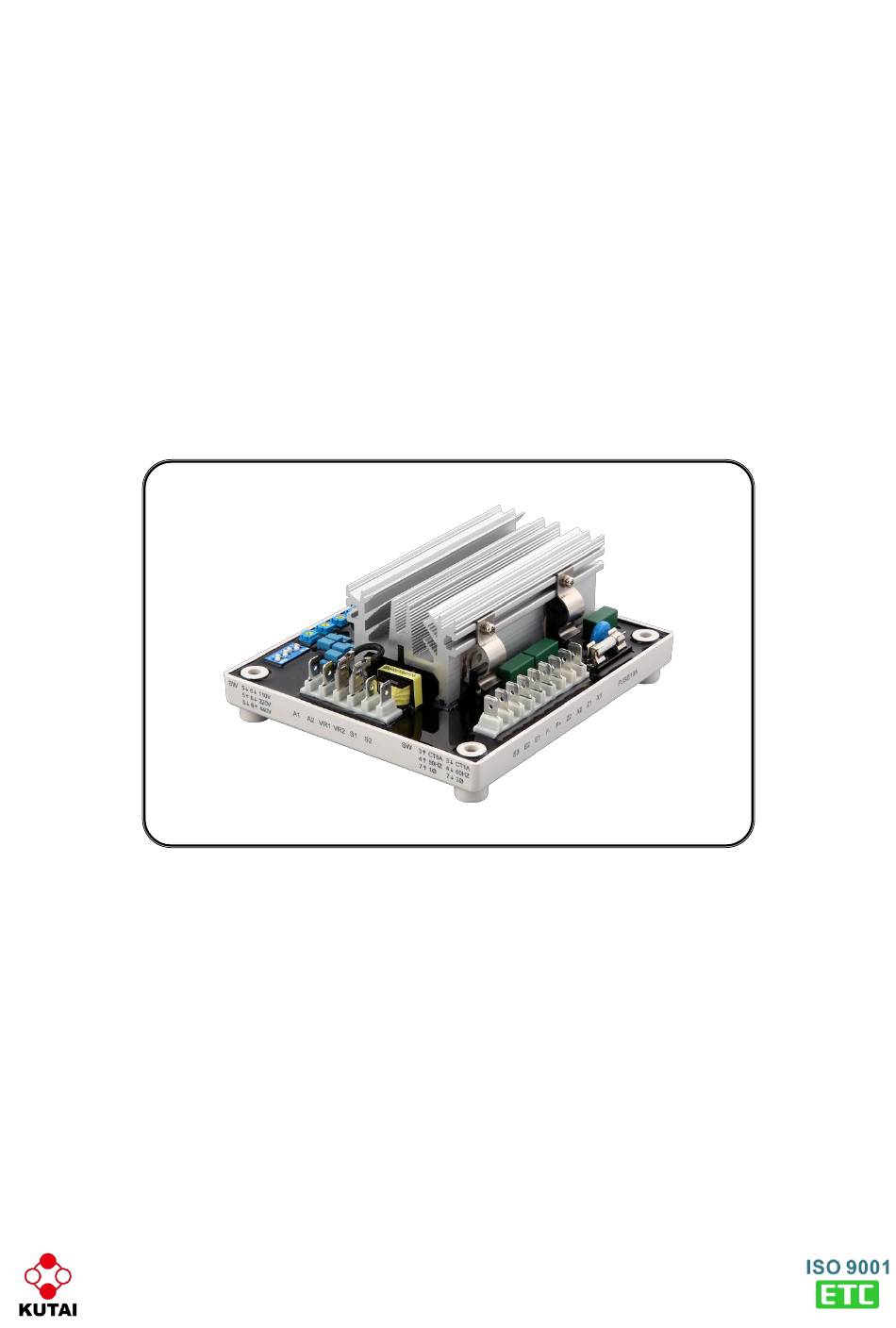

- Page 1 Analog / Digital AVR, Single-phase / Three-phase Sensing 8 Amp Voltage Regulator for use with Auxiliary Winding, PMG, and self-excited (SHUNT) brushless generators. For Aviation and Military Spec 400Hz Generators KUTAI ELECTRONICS INDUSTRY CO., LTD. TEL : +886-7-8121771 FAX : +886-7-8121775 Website : www.kutai.com.tw...
-
Page 2: Section 1 : Specification
Build Up Voltage Greater than 5 Vac, 25 Hz residual volts input power ATTENTION In order to avoid permanent damage to the AVR confirm that the voltage sensing input setting matches the generator before use (DIP switches SW5 and SW6) ___________________________________________________________________________________________ ADVR-083-400HZ... -
Page 3: Section 2 : Outline / Size / Installation Reference
SECTION 2 : OUTLINE / SIZE / INSTALLATION REFERENCE 150.0 [5.91"] 61.0 [2.40"] 130.0 [5.12"] 21.5 [0.85"] 5.5 [0.22"] Figure 1 Outline Drawing ___________________________________________________________________________________________ ADVR-083-400HZ... -
Page 4: Section 3 : Dip Switch Programming & Vr Adjustments
Remark : X1 and Z1 are the same point Single Phase / Three Phase sensing set by DIP (internally shorted) switch SW7 ADVR-083-400HZ S1, S2：Quadrature Droop Input Sensitivity +/- 7% @ PF +/- 0.5 CT N : 5A or N : 1A set by DIP... -
Page 5: Section 4 : Wiring Connections
SECTION 4 : WIRING CONNECTIONS Dotted lines represent a three-phase input. Do not connect if installed in single-phase system Field Field ADVR-083-400HZ ADVR-083-400Hz ADVR-083-400HZ ADVR-083-400Hz External External potentiometer potentiometer 1k /1W 1k /1W Figure 3 Self-Excited (SHUNT) 110/220 Vac Figure 4 Self-Excited (SHUNT) 380/440 Vac...
