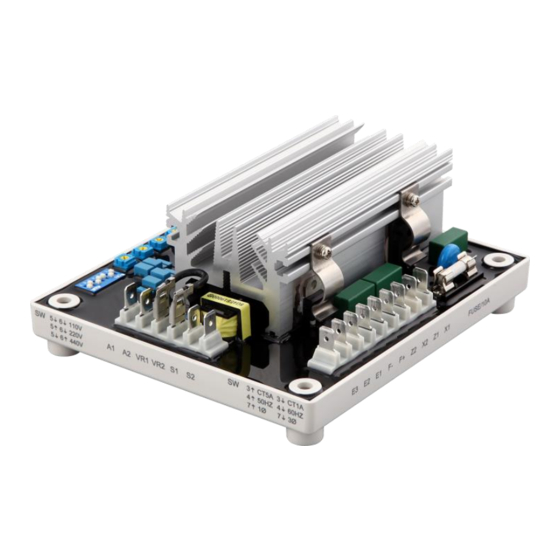

Universal Hybrid Analog-Digital
Voltage Regulator Operation Manual
Analog / Digital AVR, Single-phase / Three-phase Voltage detection, 8 Amp,
Voltage Regulator for use with Auxiliary Winding, PMG, and self-excited
(SHUNT) brushless generators.
Can be used together with KUTAI Auxiliary Excitation Booster module to
increase motor starting capacity of shunt generators.
KUTAI ELECTRONICS INDUSTRY CO., LTD.
TEL : +886-7-8121771
Headquarters : No.3, Ln. 201, Qianfu St., Qianzhen Dist., Kaohsiung City 80664, Taiwan
ADVR-083
FAX : +886-7-8121775
Website : www.kutai.com.tw
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kutai electronics ADVR-083
Summary of Contents for Kutai electronics ADVR-083

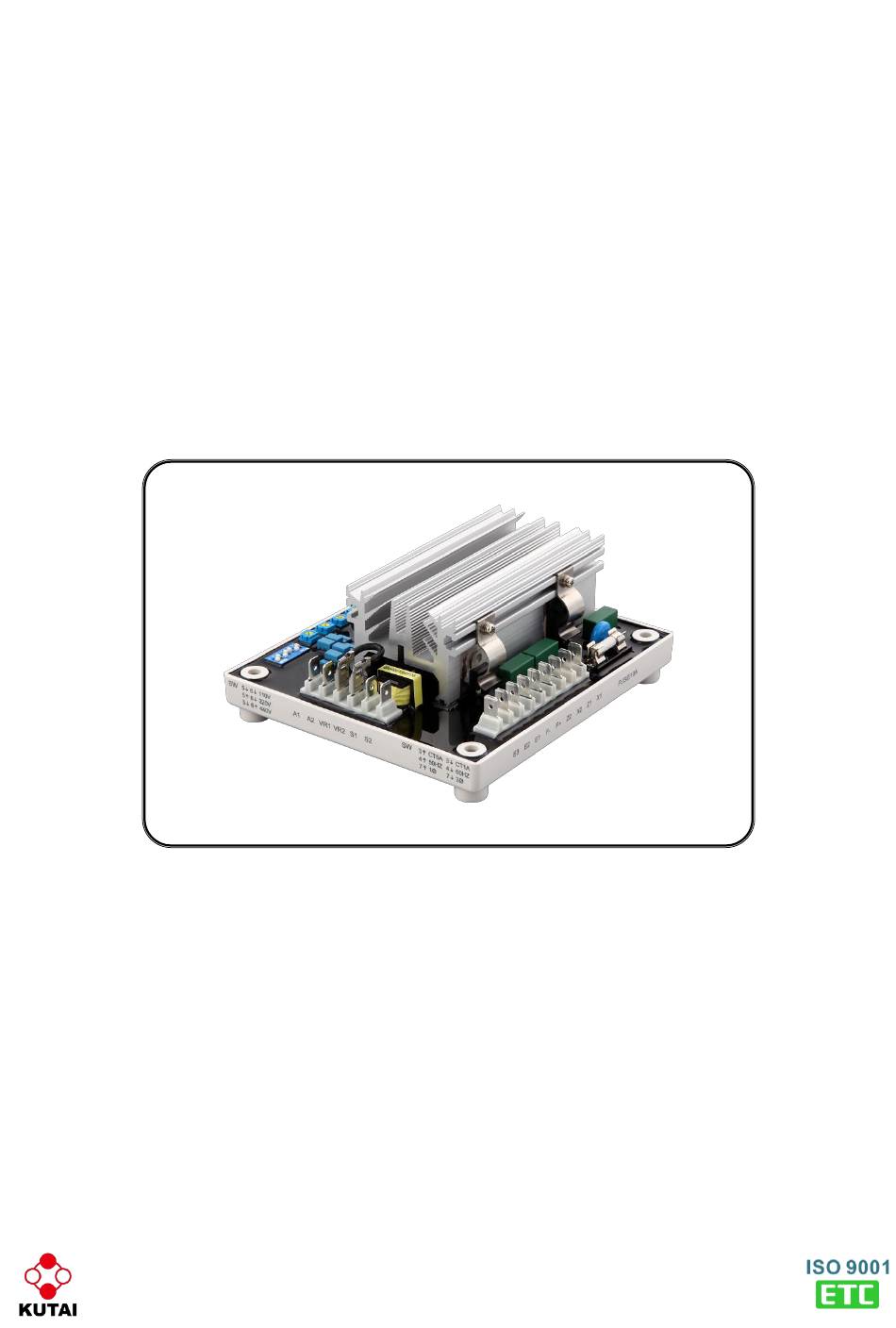

- Page 1 Voltage Regulator for use with Auxiliary Winding, PMG, and self-excited (SHUNT) brushless generators. Can be used together with KUTAI Auxiliary Excitation Booster module to increase motor starting capacity of shunt generators. KUTAI ELECTRONICS INDUSTRY CO., LTD. TEL : +886-7-8121771 FAX : +886-7-8121775 Website : www.kutai.com.tw...
-
Page 2: Section 1 : Specification
1.654 lb +/- 2% Greater than 5 Vac, 25 Hz residual volts input power ATTENTION In order to avoid permanent damage to the AVR confirm that the voltage sensing input setting matches the generator before use (DIP switches SW5 and SW6) ___________________________________________________________________________________________ ADVR-083... -
Page 3: Section 2 : Outline / Size / Installation Reference
SECTION 2 : OUTLINE / SIZE / INSTALLATION REFERENCE 150.0 [5.91"] 61.0 [2.40"] 130.0 [5.12"] 21.5 [0.85"] 5.5 [0.22"] Figure 1 Outline Drawing ___________________________________________________________________________________________ ADVR-083... -
Page 4: Section 3 : Dip Switch Programming & Vr Adjustments
Remark : X1 and Z1 are the same point Single Phase / Three Phase sensing set by DIP (internally shorted) switch SW7 ADVR-083 S1, S2：Quadrature Droop Input Sensitivity +/- 7% @ PF +/- 0.5 CT N : 5A or N : 1A set by DIP... -
Page 5: Section 4 : Wiring Connections
SECTION 4 : WIRING CONNECTIONS Dotted lines represent a three-phase input. Do not connect if installed in single-phase system Field Field ADVR-083 ADVR-083 External External potentiometer potentiometer 1k /1W 1k /1W Figure 3 Self-Excited (SHUNT) 110/220 Vac Figure 4 Self-Excited (SHUNT) 440 Vac... - Page 6 Fuse 2460 Output ADVR-083 Ready Test Batt-Volt OVLD External potentiometer 1k /1W Figure 7 ADVR-083 & IVT-1260 / IVT-2460 Wiring Connection Self-Excited (SHUNT) 110/220 Vac Single phase / Three phase Field Droop Gain 1270 Test Fuse 2470 Output ADVR-083 Ready...
