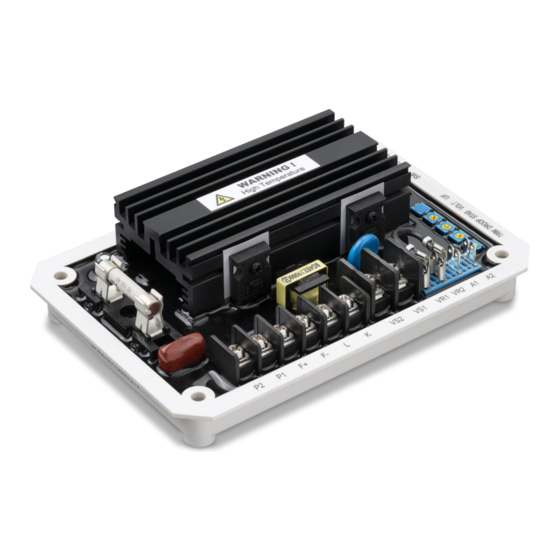

ADVR-16-400HZ
Universal Hybrid Analog-Digital
Voltage Regulator Operation Manual
Universal 400Hz Intermediate Frequency
16 Amp Half Wave Self Excited Generator Automatic Voltage Regulator
For Aviation and Military Spec 400Hz Generators
KUTAI ELECTRONICS INDUSTRY CO., LTD.
TEL : +886-7-8121771
FAX : +886-7-8121775
Website : www.kutai.com.tw
Headquarters : No.3, Ln. 201, Qianfu St., Qianzhen Dist., Kaohsiung City 80664, Taiwan
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kutai electronics ADVR-16-400HZ
Summary of Contents for Kutai electronics ADVR-16-400HZ
- Page 1 Voltage Regulator Operation Manual Universal 400Hz Intermediate Frequency 16 Amp Half Wave Self Excited Generator Automatic Voltage Regulator For Aviation and Military Spec 400Hz Generators KUTAI ELECTRONICS INDUSTRY CO., LTD. TEL : +886-7-8121771 FAX : +886-7-8121775 Website : www.kutai.com.tw Headquarters : No.3, Ln. 201, Qianfu St., Qianzhen Dist., Kaohsiung City 80664, Taiwan...
-
Page 2: Section 1 : Summary
SECTION 1 : SUMMARY In addition, we added over excitation and loss of The ADVR-16-400HZ is an advance (Hybrid Analog / sensing shutdown protections, with matching U/F, O/E Digital Voltage Regulator) design for general-purpose LED indicator lights. Consequently, this AVR prevents... -
Page 3: Section 3 : Connection Terminal
Set SW1 to ON (440V) for use from 340 to 510 Vac LED Indicator When using and external VR set it to the central U/F：Under Frequency Indicator position and adjust the AVR VOLT trim to the O/E：Over Excitation Indicator rated voltage. ___________________________________________________________________________________________ ADVR-16-400HZ... -
Page 4: Section 5 : Notice Of Use
Incorrect wiring connection may Generator Operation Notice： result in irreversible damage to the product and 5.2.1 During operation, the temperature on the surface other equipments. of the AVR can reach higher the 60 ˚C / 140 ˚F. ___________________________________________________________________________________________ ADVR-16-400HZ... - Page 5 Field Field EA16A ADVR-16 ADVR-16-400HZ ADVR-16 EA16A ADVR-16-400HZ VR1 VR2 EXT. VR EXT. VR Figure 4 220V Connection Field P2 F+ Field ADVR-16 EA16A ADVR-16-400HZ EA16A ADVR-16 ADVR-16-400HZ VR1 VR2 EXT. VR EXT. VR Figure 3 Paralleling Connection Figure 5 380 / 480V Connection Field Aux.
-
Page 6: Section 7 : Trouble Shooting
Connect appropriate resistors in series to rang of regulator increase total impedance ※ Use only the replacement fuses specified in this user manual. ※ Appearance and specifications of products are subject to change for improvement without prior notice. ___________________________________________________________________________________________ ADVR-16-400HZ...
