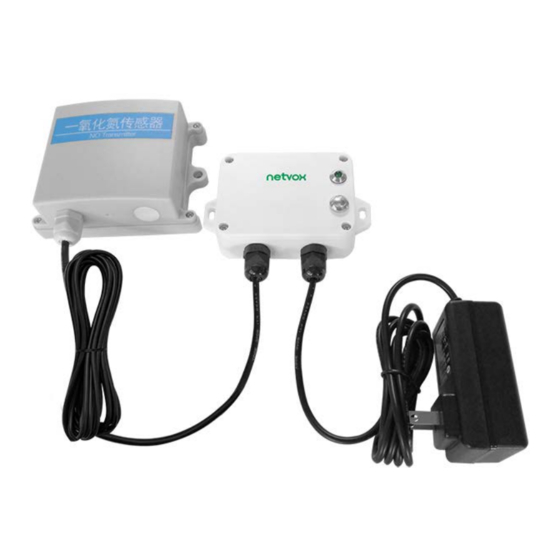

netvox R718PA2 User Manual

Wireless no sensor
Hide thumbs

Advertisement

Table of Contents

R718PA2
Model：
Model: R718PA2
Wireless NO Sensor
Wireless NO Sensor
R718PA2
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX
Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in
whole or in part, without written permission of NETVOX Technology. The specifications are subject
to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R718PA2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for netvox R718PA2

Summary of Contents for netvox R718PA2

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ............................2 2. Appearance ............................3 3. Main Feature ............................. 3 4. Set Up Instruction ..........................4 5. Data Report ............................5 6. Installation ............................7 7. Important Maintenance Instruction ....................7...

  • Page 3: Introduction

    Netvox and is compatible with the LoRaWAN protocol. R718PA2 can be connected with a nitric oxide Sensor (RS485) externally to report the concentration of nitric oxide collected by the device to the corresponding gateway. The device is compatible with the LoRaWAN protocol.

  • Page 4: Appearance

    2. Appearance 3. Main Feature  Adopt SX1276 wireless communication module  12V DC power supply  NO detection  The base is attached with a magnet that can be attached to a ferrous object  Main body protection level IP65 / IP67 (optional) ...

  • Page 5: Set Up Instruction

    4. Set Up Instruction On/Off Power on DC12V adapter DC12V power supply, the green indicator flashing once means turn on Turn on successfully. Turn off Press and hold the function key for 5 seconds and the green indicator (Restore to factory setting) flashes 20 times.

  • Page 6: Data Report

    1. The cycle of the device sending the data report is according to the default. 2. R718PA2 reports the concentration of nitric oxide. Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver http://loraresolver.netvoxcloud.com:8888/page/index to resolve uplink data.
  • Page 7 ConfigReport MinTime MaxTime Reserved 0x01 (2bytes Unit: s) (2bytes Unit: s) (5Bytes, Fixed 0x00) ConfigReport Status Reserved 0x81 (0x00_success) (8Bytes, Fixed 0x00) R718PA2 0x57 ReadConfig Reserved 0x02 ReportReq (9Bytes, Fixed 0x00) ReadConfig MinTime MaxTime Reserved 0x82 ReportRsp (2bytes Unit: s)

  • Page 8: Installation

    6.Installation 1. The device has a built-in magnet (as the figure 2. The device periodically reports the data below). It can be attached to the surface of an iron according to Max Time. The default Max object conveniently and quickly when it is installed. Time is 3min.

  • Page 9: Important Maintenance Instruction

    7.Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: • Keep the equipment dry. Rain, moisture and various liquids or water may contain minerals that can corrode electronic circuits. In case the device is wet, please dry it completely. •...
