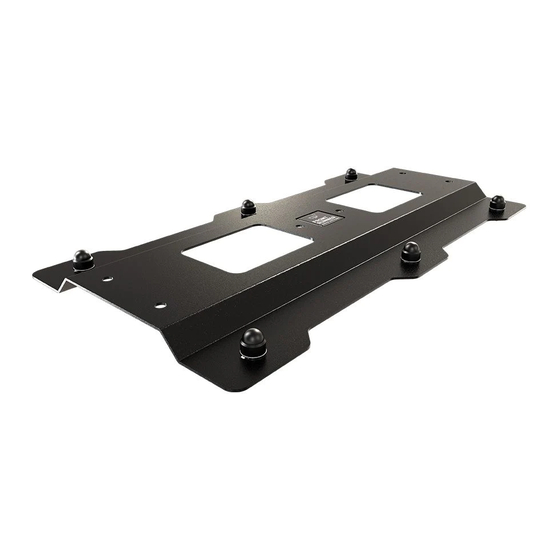

Rotopax Mounting Plate
RRAC105
15 min
READ ME !
Thank you for purchasing a Front Runner Rotopax Mounting Plate.
Before you start, take a moment to familiarize yourself with this Fitting Instruction and the components received.
Refer to Page 2 for a list of all the components, quantities and tools required.
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE.
IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH.
YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE.
THEREFORE YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE.
IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES,
YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
RRAC105_REV_A00
1
© COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS
Advertisement
Table of Contents
Related Manuals for Front Runner RRAC105
Summary of Contents for Front Runner RRAC105
- Page 1 IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE.
- Page 2 GET ORGANIZED Here is what you are looking at for RRAC105 IN THE BOX IN THE BOX TOOLS NEEDED IN THE BOX RotoPax Mounting Plate M8 Nut Cap M8 Nyloc Nut M8x16x1.6ss Flat Washer 13MM M8x16 Hex Bolt FIGURE 1.1 RRAC105_REV_A00 ©...
- Page 3 Finnish it of by placing a M8 nut cap (item 2) over each of the 6 nyloc nuts (item 3). Place the Rotopax over the RotoPax RX-PM Rotopax Pack mounts and tighten. RRAC105_REV_A00 © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS...
- Page 4 Congratulations. You did it. Take a step back and admire your work! INSTALL OTHER VEHICLE AND RACK ACCESSORIES Now's the time to visit your favorite Front Runner Dealer in person or online. RRAC105_REV_A00 © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS...
