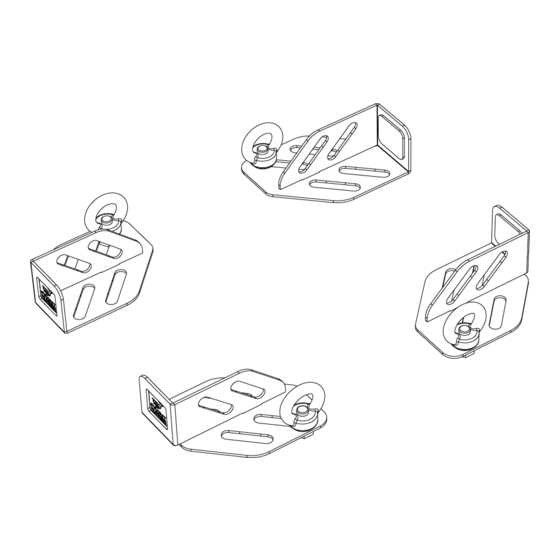

Adjustable Cargo Brackets
RRAC129
READ ME !
Thank you for purchasing Front Runner Adjustable Cargo Brackets .
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.
Refer to Page 2 for a list of all the components, quantities and tools required.
IMPORTANT WARNING!
FRONT RUNNER CAN NOT RECOMMEND A MAXIMUM LOAD CARRYING CAPACITY. PLEASE REFER TO YOUR VEHICLE MANUFACTURER'S RECOMMENDATIONS. IT IS CRITICAL
THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN
AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS
TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE. THEREFORE YOU
MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU
DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE
INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
RRAC129_REV_A00
1
© COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Front Runner RRAC129
Summary of Contents for Front Runner RRAC129
- Page 1 TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE. THEREFORE YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
- Page 2 GET ORGANIZED IN THE BOX Adjustable Cargo Bracket 2LH + 2RH M8 Eye Nut M8 Nylon Washer M8 x 16 Hex Bolt T-Slot Rubber 1000mm FIGURE 1.1 RRAC129_REV_A00 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS...
- Page 3 Place your storage box onto the Rack between the Adjustable Cargo Bracket . Set the Brackets before fully tightening. Secure the storage box using a Stratchit - STRA034 (Not Supplied). RRAC129_REV_A00 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS...
- Page 4 SECURING THE MIDDLE OF A FRONT RUNNER CUB OR WOLF PACK Decide where on the Rack you want to fit your storage boxes. Slide two M8 x 16 Hex Bolts (Item 4) in the choosen slats. Loosely fit the Adjustable Cargo Bracket (Item 1) using an M8 Eye Nut and M8 Nylon Washer.
- Page 5 Congratulations! You did it. Take a step back and admire your work! Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions. Please call us if you have any questions about the installation of this product.
