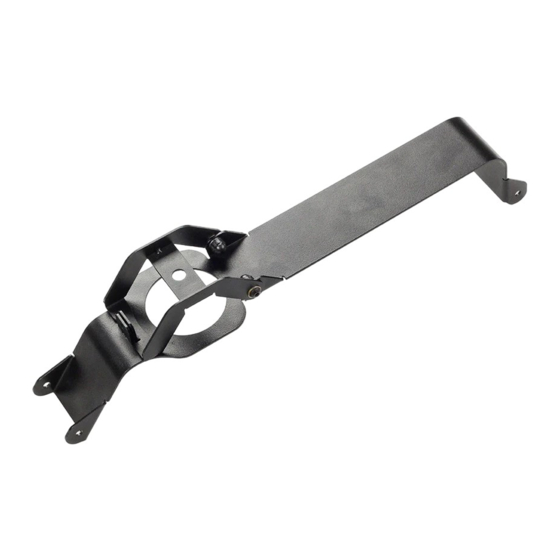

Front Runner RRAC120 Manual

Lockable strap for water cap / 45l

ENG

lockable strap

for Water cap / 45L

RRAC120

10 min

READ ME !

Thank you for purchasing a Front Runner Lockable Strap For Water Cap / 45L - by Front Runner.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

RRAC120_REV_A00

Table of Contents

Need help?

Do you have a question about the RRAC120 and is the answer not in the manual?

Page 1 IMPORTANT WARNING! IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS TO YOUR VEHICLE.
Page 2 GET ORGANIZED IN THE BOX TOOLS NEEDED Strap Lockable Bracket M6 x 16 Button Head Bolt 10MM M6 x 12 x 1SS Flat Washer M6 Nyloc Nut M6 Nut Cap FIGURE 1.1 RRAC120_REV_A00 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS...
Page 3 In Step 2.5 you will have to postion the Washers in the same place. Refer to Step 2.3 Note the position of the Washer between the upright and Lockable Strap For Water Cap. 10MM RRAC120_REV_A00 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS...
Page 4 "Y-Spring" on the end of the Plastic Cap's retaining wire and push the "Y-Spring" into the Tank ﬁller neck. Flip the lockable part of the Strap over the Cap and lock with a suitable Pad-Lock. RRAC120_REV_A00 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS...
Page 5 Congratulations! You did it. Take a step back and admire your work! Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions. Please call us if you have any questions about the installation of this product.
