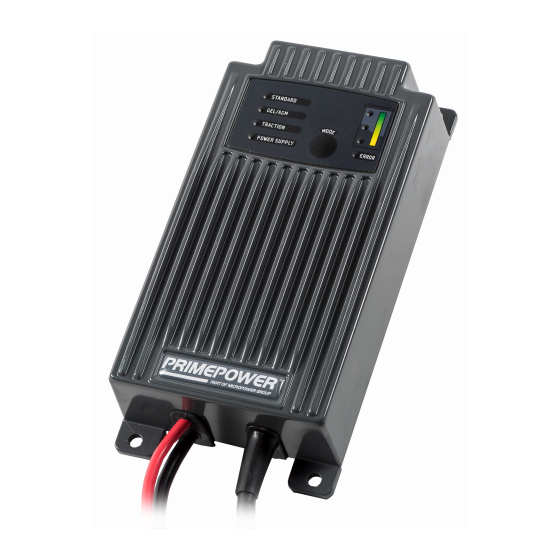

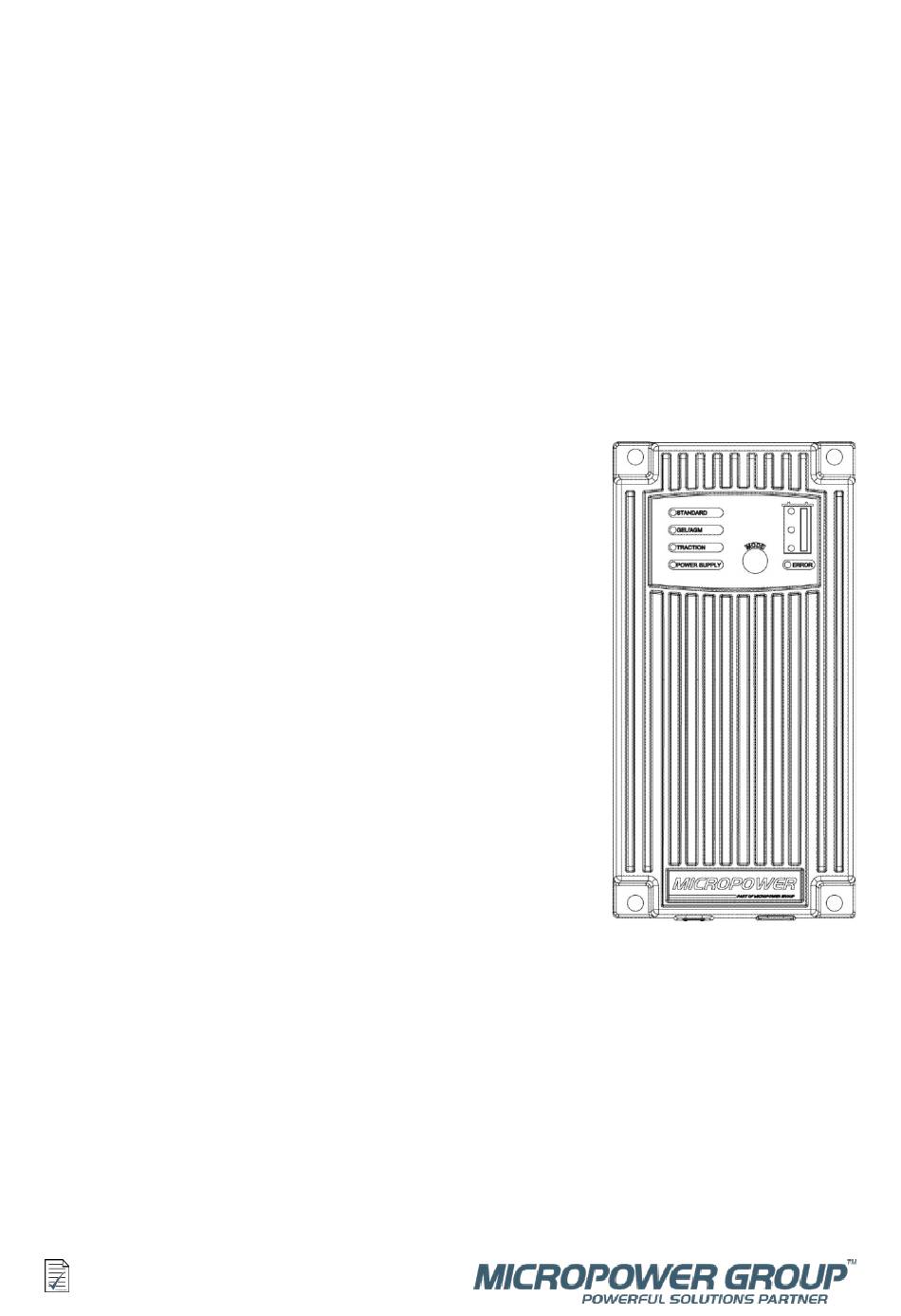

- Page 1 CHAMP PRO USER MANUAL 'ONLINE VERSION' Battery charger 12/24V 12-30A (Lead-acid) Valid for Champ Pro with Model Code: 2A1A9**, 2A1AA**...
-
Page 2: Table Of Contents
CHAMP Pro - User manual 'online version' Safety..................................3 Safety precautions............................... 3 Warning information..............................4 Graphical symbols................................5 Introduction................................5 Description................................. 6 Receiving..................................6 Installation.................................. 6 Mechanical installation..............................6 Electrical installation..............................7 Operation..................................7 Overview..................................7 Charging..................................7 LED indication................................9 Maintenance and troubleshooting..........................9 Built-in temperature sensor............................9 Safety shut-off................................ -
Page 3: Safety
CHAMP Pro - User manual 'online version' Safety Safety precautions Read the instructions. The manual contains important safety and operating instructions. Always keep this manual nearby the product. Read and understand this instruction, the battery instruction provided by your battery manufacturer, and your employer’s safety practice, before using, installing, or servicing the product. -
Page 4: Warning Information
CHAMP Pro - User manual 'online version' Incorrect settings of the battery charger may damage the battery and generate explosive gases from the battery • during charging. Always check settings before start charging. Do not charge non-rechargeable batteries, damaged batteries or battery types not intended for the charger. -
Page 5: Graphical Symbols
CHAMP Pro - User manual 'online version' WARNING Indicates a potentially dangerous situation. Death or serious injury may occur if appropriate precautions are not taken. CAUTION Indicates a situation where damage or injury could occur. If it is not avoided, minor injury and/or damage to property may result. -
Page 6: Description
Maintenance personnel and technicians • Description Champ Pro is a compact and waterproof battery charger for charging the following lead-acid batteries: Standard (STD)/flooded batteries: sealed batteries with a liquid electrolyte (recognisable by the vent plugs) and • low maintenance/maintenance-free flooded batteries. -
Page 7: Electrical Installation
CHAMP Pro - User manual 'online version' Electrical installation WARNING High voltage! Incorrect connection of battery cables can cause personal injuries and damage to the battery, battery charger and cables. Make sure the connections are correct. WARNING High voltage! Risk of live chassis. - Page 8 CHAMP Pro - User manual 'online version' 2. Connect the battery charger to the battery. 3. Connect the mains cable. 4. Choose battery type or the power supply mode by pressing the MODE button. (The power supply mode gives a steady output of preset voltage level).
-
Page 9: Led Indication
CHAMP Pro - User manual 'online version' LED indication The LEDs lights up or flashes in different patterns to indicate the condition and state of charge (SOC). For more information about the different battery types and their charging curves, see Fig. 1 Charging curves. -
Page 10: Safety Shut-Off
CHAMP Pro - User manual 'online version' Safety shut-off Charging is terminated if: • The ambient temperature, monitored by a temperature sensor, reaches above 50 °C (122 °F). • The battery is disconnected without the battery charger being turned off. -
Page 11: Contact Information
CHAMP Pro - User manual 'online version' Contact information Micropower Group AB Idavägen 1, SE-352 46 Växjö, Sweden Phone: +46 (0)470-727400 e-mail: support@micropower.se www.micropower-group.com 2023-04-26... -
Page 12: Figures
CHAMP Pro - User manual 'online version' Figures Fig. 1 Charging curves LED indication Yellow bottom Yellow middle Green top Standard (STD) batteries 2023-04-26... - Page 13 CHAMP Pro - User manual 'online version' GEL/AGM batteries Traction batteries 2023-04-26...
- Page 14 CHAMP Pro - User manual 'online version' Fig. 2 Components and dimensions See Overview 2023-04-26...
- Page 15 CHAMP Pro - User manual 'online version' Fig. 3 Temperature compensation 2023-04-26...
-
Page 16: Approvals
CHAMP Pro - User manual 'online version' Approvals Declaration of Conformity 2023-04-26...
