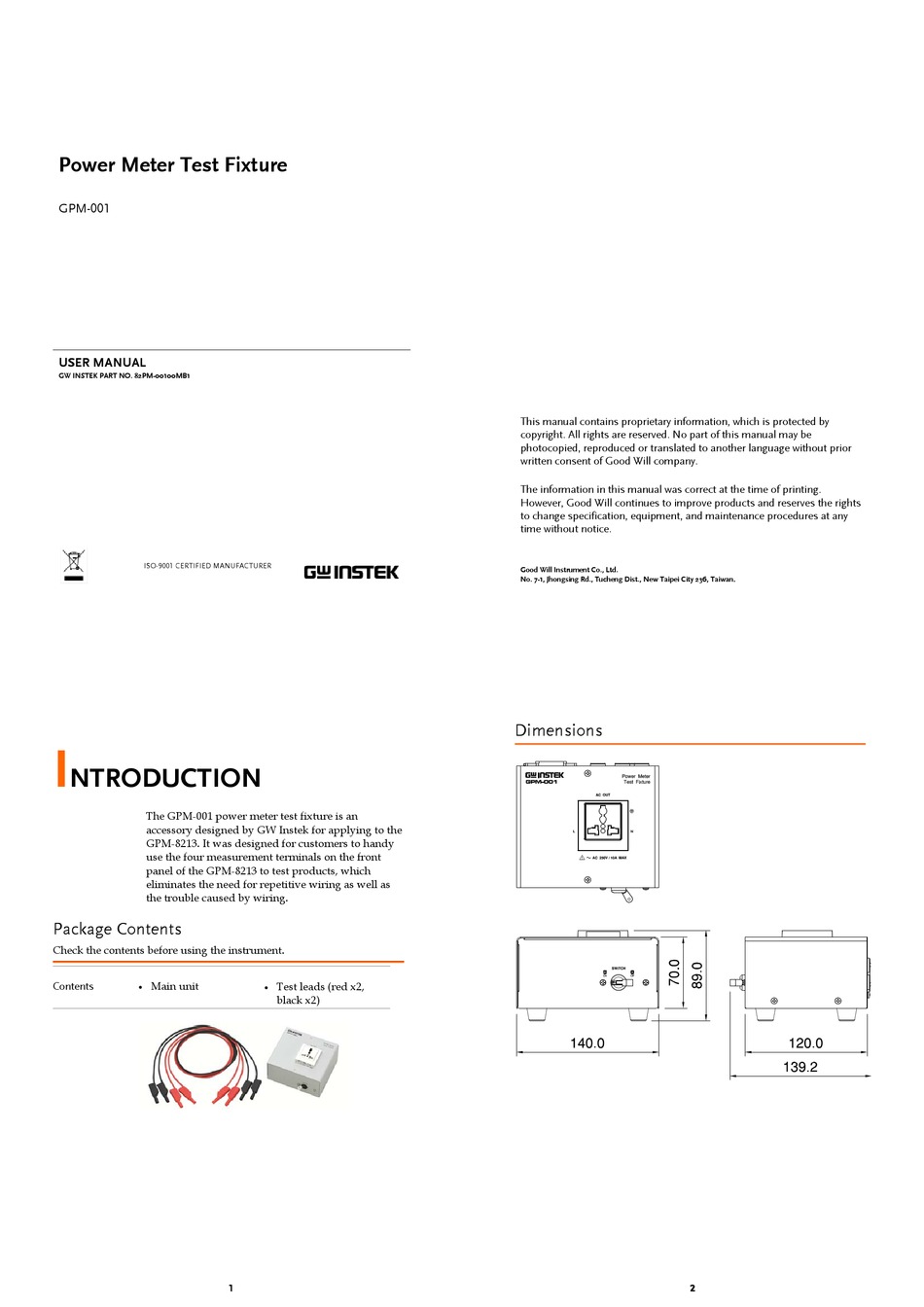

GW Instek GPM-001 User Manual

Power Meter Test Fixture
GPM-001
USER MANUAL
GW INSTEK PART NO. 82PM-00100MB1
ISO-9001 CERTIFIED MANUFACTURER
I
NTRODUCTION
The GPM-001 power meter test fixture is an
accessory designed by GW Instek for applying to the
GPM-8213. It was designed for customers to handy
use the four measurement terminals on the front
panel of the GPM-8213 to test products, which
eliminates the need for repetitive wiring as well as
the trouble caused by wiring.

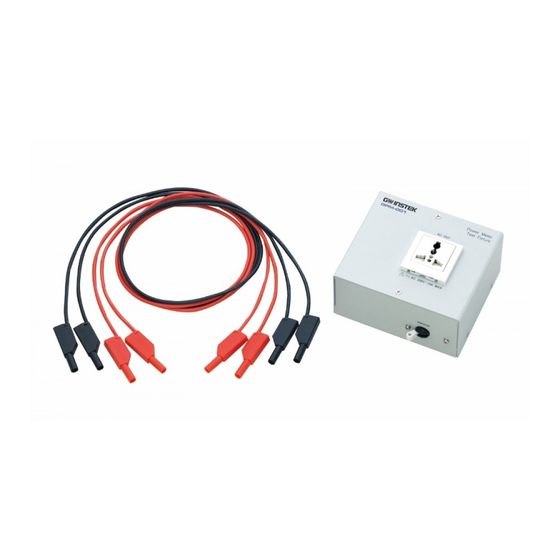

Package Contents

Check the contents before using the instrument.
Main unit
Contents

Test leads (red x2,

black x2)
1
This manual contains proprietary information, which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without prior
written consent of Good Will company.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve products and reserves the rights
to change specification, equipment, and maintenance procedures at any
time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.

Dimensions

2
