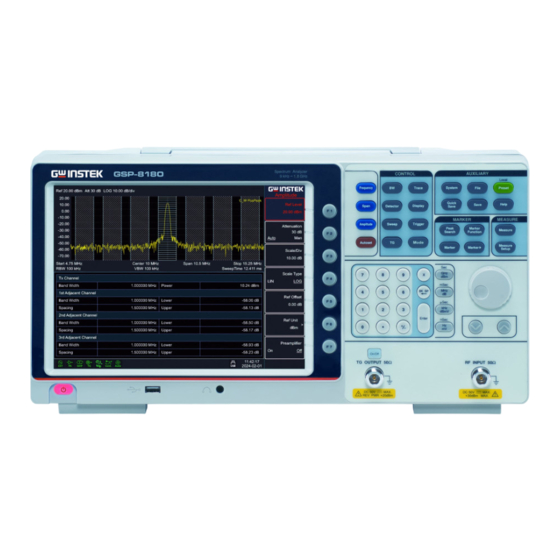

GW Instek GSP-8180 Quick Start Manual
  1. Manuals
  2. Brands
  3. GW Instek Manuals
  4. Measuring Instruments
  5. GSP-8180
  6. Quick start manual

GW Instek GSP-8180 Quick Start Manual

Spectrum analyzer
Hide thumbs Also See for GSP-8180:
Table of Contents

Advertisement

Quick Links

Download this manual
Spectrum Analyzer
GSP-8000 Series
QUICK START GUIDE
ISO-9001 CERTIFIED MANUFACTURER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSP-8180 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GW Instek GSP-8180

Summary of Contents for GW Instek GSP-8180

  • Page 1 Spectrum Analyzer GSP-8000 Series QUICK START GUIDE ISO-9001 CERTIFIED MANUFACTURER...
  • Page 2 October 2023 This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of the Good Will company. The information in this manual was correct at the time of printing. However, Good Will continues to improve products and reserves the right to change specification, equipment, and maintenance procedures at any time without notice.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents USER NOTICE ..............5 General Inspection ............. 5 Safety Precaution before Operation ......6 Electro-static Discharge (ESD) Protection ....8 First Time to Power on ..........9 GETTING STARTED ............10 Front Panel Overview ..........11 Rear Panel ..............
  • Page 4 GSP-8000 series Quick Start Guide File ................27 Quick Save ..............27 Save ................27 APPENDIX ..............28 Specifications ............28...

  • Page 5: User Notice

    Check the Complete Instrument If there is any physical damage, operational fault, or performance issue please contact your distributor or GW Instek’s local office. If there is any damage to the instrument please ensure you keep the original packaging. Ideally you should always keep the original packaging if the instrument must be returned for repair.

  • Page 6: Safety Precaution Before Operation

    GSP-8000 series Quick Start Guide Safety Precaution before Operation Check Power Supply The analyzer is equipped with a three-wire power cord in accordance with international safety standards. The product must be grounded properly before being powered on, as floating or improper ground may cause damage to the instrument or personal injury.
  • Page 7 USER NOTICE Improper grounding may cause damage to the WARNING instrument, or result in personal injury. Make sure the grounding conductor of the spectrum analyzer is grounded before turning on the instrument. Always use a well-grounded power source. Do not use an external power cable, power cord or an auto transformer without grounded protection.

  • Page 8: Electro-Static Discharge (Esd) Protection

    GSP-8000 series Quick Start Guide Electro-static Discharge (ESD) Protection ESD is an issue often ignored by users. Damage from ESD on the instrument is unlikely to occur immediately but will significantly reduce the reliability of it. Therefore, ESD precautions should be implemented in the work environment, and applied daily.

  • Page 9: First Time To Power On

    USER NOTICE First Time to Power on Connect the three-pin AC power cord into the instrument. Insert the plug into a power socket provided with a protective ground. Check the power source before turning on the WARNING spectrum analyzer, to protect the device from damage. 1.
  • Page 10 GSP-8000 series Quick Start Guide ETTING STARTED This chapter introduces the front / rear panel, the user interface and explains how to use the instrument with a measurement example demonstration. Front Panel Overview ..........11 Rear Panel ..............13 Front Panel Function Key .......... 15 Parameter Input ............

  • Page 11: Getting Started

    GETTING STARTED Front Panel Overview 1024x768 color LCD display. The display 1. LCD shows the soft keys for the current function, frequency, amplitude and marker information. The F1 to F7 function keys directly 2. Menu soft correspond to the soft keys on the right- keys hand side of display.
  • Page 12 GSP-8000 series Quick Start Guide tree in the File function 6. RF Input The RF input may be connected to a device via a N type connector. connector When input attenuator is higher than 10 dB, the RF port Note input signal must be less than +30 dBm.

  • Page 13: Rear Panel

    GETTING STARTED Rear Panel 1. Handle Stow the handle for mobile use. 2 AC power AC: frequency 50Hz/60Hz ±10％, single- connector phase alternative 220V±15％ or 110V±15％ 3. Stool To adjust the angle of the device 4. LAN Through this interface, the analyzer can be interface connected to your local network for remote control.
  • Page 14 GSP-8000 series Quick Start Guide 8. Lock hole You can lock the spectrum analyzer to a fixed location using the security lock (please buy it yourself) to secure the spectrum analyzer.

  • Page 15: Front Panel Function Key

    GETTING STARTED Front Panel Function Key Basic keys Utility keys Control keys Mode Marker function measure Basic keys Activates the center-frequency function, and accesses the frequency function menu. Activates the frequency sweep span function, and set Full Span\Zero Span\Last Span. Activates the reference level function, and accesses the amplitude softkeys, with which you set functions that affect data on the vertical axis.
  • Page 16 GSP-8000 series Quick Start Guide Accesses the softkeys that allow you to configure detector functions. Accesses the softkeys that allow you to control what is displayed on the analyzer, including the display line, graticule, Label, Menu Hide, Brightness and Screen Sleep. Accesses the softkeys that allow you to set the sweep time, select the sweep mode of the analyzer.
  • Page 17 GETTING STARTED Sets the parameters for the selected measurement function. Utility keys Accesses the softkeys that allow you to get the system information, or set the system parameters. Accesses the softkeys that allow you to configure the file system of the analyzer. Resets the analyzer to the factory settings or user state.

  • Page 18: Parameter Input

    GSP-8000 series Quick Start Guide Parameter Input Specific parameter values are able to be entered using the numeric keypad, knob, and directional keys. Numeric Keypad Numbers 0-9 are available to be used. Numeric keys A decimal point “.” will be inserted at the Decimal cursor position when this key is pressed.
  • Page 19 GETTING STARTED When pressed, the system will complete the Enter key input process and insert a default measurement unit for the parameter automatically. Unit keys include GHz/dBm/Sec, Unit keys MHz/dB/mSec, kHz/dBmV/μSec and Hz/mV/nSec. After entering the desired numbers, choose an appropriate unit to complete the input.

  • Page 20: User Interface

    GSP-8000 series Quick Start Guide User Interface Marker function No. Name Description Related Key Reference level Reference level → [Ref Level] Display input → [Attenuation] Attenuation attenuation setting Can choose → [Scale Type] Amplitude logarithmic or Division Type linear Display Division →...
  • Page 21 GETTING STARTED Trace Type and Trace Mode Detector Type Function of current Menu title menu belongs to. Menu item of Menu item current function 10. Stop Frequency Display Stop →[Stop Frequency] Frequency 11. Date/time Display system →[Date/Time] date and time 12.
  • Page 22 GSP-8000 series Quick Start Guide ENU INTEPRETATION This chapter provides you with the information on using the front panel of the spectrum analyzer. Frequency ..............23 Span ................. 23 Amplitude ..............23 Autoset ..............23 Bandwidth ..............24 Trace ................. 24 Detector ..............

  • Page 23: Menu Intepretation

    MENU INTEPRETATION Frequency The frequency range of a channel can be expressed by either of two groups of parameters: Start Frequency and Stop Frequency; or Center Frequency and Span. If any such parameter is changed, the others would be adjusted automatically in order to ensure the coupling relationship among them = ( f ) / 2...

  • Page 24: Bandwidth

    GSP-8000 series Quick Start Guide Some parameters such as reference level, scale, • and input attenuation may be changed during the auto tune. If there is no signal is found, a message “Auto tune fail, can’t search any signal.”will appear on the screen. Bandwidth Sets the RBW (Resolution Bandwidth) and VBW (Video Bandwidth) parameters of the analyzer.

  • Page 25: Display

    MENU INTEPRETATION Display Controls the screen display of the analyzer, such as setting the on or off for, display line, amplitude scale, grid, label, Menu Hide, Brightness and Screen Sleep. Sweep Sets parameters about the Sweep time and mode including Sweep Time, Sweep Single and Sweep Cont.

  • Page 26: Peak Search

    GSP-8000 series Quick Start Guide Peak Search Executes peak searching immediately and opens the Peak setting menu. If Max is selected from the Peak Search option, Key Points • it will search and mark the maximum on the trace. If Min is selected from the Peak Search option, •...

  • Page 27: Measurement

    MENU INTEPRETATION Measurement Provide a variety of advanced measurement functions, pop-up spectrum analyzer built-in and user-defined measurement function soft menu, turn on or off the time spectrum, adjacent channel power measurement, channel power measurement, occupied bandwidth, Pass-Fail measurement menu. Measure Setup Measurement setting menu for the corresponding measurement parameter settings when adjacent channel power, channel power, occupied bandwidth measurement mode is turned on.

  • Page 28: Appendix

    Nominal: Refers to the approximate value • under product application process. Model GSP-8000 Series FREQUENCY FREQUENCY GSP-8180 9 kHz ~ 1.8 GHz Range GSP-8380 9 kHz ~ 3.8 GHz GSP-8800 9 kHz ~ 8.0 GHz Resolution...
  • Page 29 (VBW) AMPLITUDE AMPLITUDE AND LEVEL DANL ~ +10 dBm, 100 kHz ~ 1 MHz, Preamp Off GSP-8180 DANL ~ +20 dBm, 1 MHz ~ 1.8 GHz, Preamp Off DANL ~ +10 dBm, 100 kHz ~ 1 MHz, Preamp Off Amplitude...
  • Page 30 20°C to 30°C, fc=>1MHz, signal iput range 0~-50dBm, Ref Level range 0~-50dBm, 10 dB RF attenuation, RBW =1kHz, VBW Uncertainty =1kHz,Preamp Off； ±1.5 dB(typical) <1.5, Nominal, Input 10 dB RF attenuation, 1MHz GSP-8180 ~ 1.8GHz <1.5, Nominal, Input 10 dB RF attenuation, 1MHz VSWR GSP-8380 ~ 3.8GHz <1.8, Nominal, Input 20 dB RF attenuation, 1MHz...
  • Page 31 APPENDIX Connect 50 Ω load at input port, 0 dB input attenuation, 20°C to 30°C, average ≥ 40, RBW = 300Hz, VBW = 3kHz,SPAN = 2M Residual response <-85 dBm, 1 MHz ~ Max. Frequency Range Input related spurious <-60 dBc, -30 dBm signal at input mixer, 20°C ~ 30°C SWEEP SWEEP TIME 10 ms ~ 3000 s, None-zero Span...
  • Page 32 GSP-8000 series Quick Start Guide USB Device B Plug, supports USB TMC Remote Control LAN TCP/IP RJ-45, supports 10Base-T/100Base-Tx Interface Mass Memory Internal Memory 256M Bytes Operating 0 °C to 40°C Temperature Temperature Storage -20°C to 70°C Temperature ≤ 95% 0°C to 30°C Relative humidity ≤...
