- Page 1 Electrical Safety Analyzer GPT-10000 Series QUICK START GUIDE GW INSTEK PART NO. 82PT-10K00M01 ISO-9001 CERTIFIED MANUFACTURER...
- Page 2 This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will company. The information in this manual was correct at the time of printing. However, Good Will continues to improve products and reserves the right to change specification, equipment, and maintenance procedures at any time without notice.
-
Page 3: Table Of Contents
Table of Contents Table of Contents SAFETY INSTRUCTIONS ..........4 Safety Symbols ..................... 4 Safety Guidelines ..................5 INTRODUCTION ............. 7 GPT-12000 Series Overview ................ 7 Lineup Overview ..................8 Accessories ....................8 Package Contents ..................9 Front Panel Overview ................10 Rear Panel Overview .................. -
Page 4: Safety Instructions
GPT-10000 Series Quick Guide AFETY INSTRUCTIONS This chapter contains important safety instructions that you must follow during operation and storage. Read the following before any operation to ensure your safety and to keep the instrument in the best possible condition. -
Page 5: Safety Guidelines
SAFETY INSTRUCTIONS Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Safety Guidelines Do not place any heavy object on the General instrument. Guideline Avoid severe impact or rough handling that ... - Page 6 GPT-10000 Series Quick Guide Disconnect the power cord before cleaning. Cleaning the GPT-10000 Use a soft cloth dampened in a solution of mild detergent and water. Do not spray any liquid. Do not use chemicals containing harsh material ...
-
Page 7: Introduction
INTRODUCTION NTRODUCTION This Quick Start Guide is intended as a fast introduction to operating the GPT-12000 Series Safety Testers. This Quick Start Guide assumes that the user is familiar with safety testers. For comprehensive instructions on the GPT-12000 Series, please see the User Manual, located on the accompanying CD. -
Page 8: Lineup Overview
GPT-10000 Series Quick Guide Lineup Overview Model name CONT GPT-12001 GPT-12002 GPT-12003 GPT-12004 Accessories Standard Part number Description Accessories GHT-115x1 Test lead Region dependent Power cord... -
Page 9: Package Contents
CTC (Calibration terminal cable Traceable Certificate) Interlock key Power cord x1 (region dependent) Keep the packaging, including the box, polystyrene Note foam and plastic envelopes should the need arise to return the unit to GW Instek. -
Page 10: Front Panel Overview

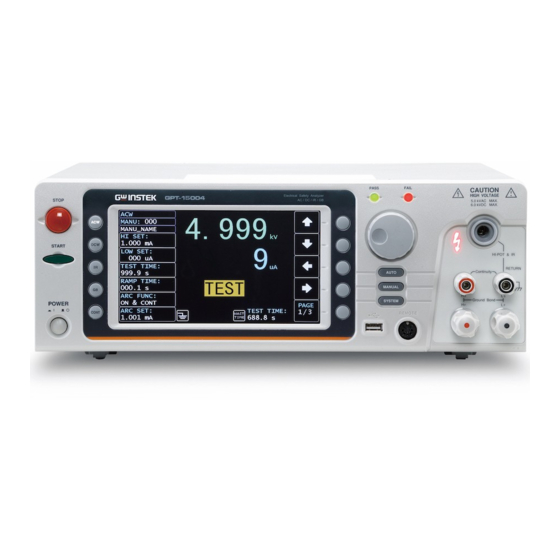

GPT-10000 Series Quick Guide Front Panel Overview GPT-12001/12002/12003/12004 Description Item STOP Button START Button POWER Switch Test Function Keys (Green Zone) Display Mode Keys (AUTO, MANUAL, SYSTEM in Red Zone) Soft Keys (Blue Zone) USB A-Type Host Port PASS/FAIL Indicators... -
Page 11: Rear Panel Overview
INTRODUCTION Rear Panel Overview GPT-12001/12002/12003/12004 Description Item HIGH VOLTAGE Output Terminal HIGH VOLTAGE Indicator SENSE H & Output Terminal SENSE L & RETURN Terminal SOURCE H (GPT-12004 only) SOURCE L (GPT-12004 only) RS-232 Port USB B-Type Interface Port Scan Port Signal I/O Port GPIB Port (Optional) AC Mains Input (Power Cord Socket) -
Page 12: Test Lead Connection
GPT-10000 Series Quick Guide EST LEAD CONNECTION This section describes how to connect the GPT-12000 to a DUT for AC/DC withstanding, insulation resistance, ground bond as well as continuity testing. ACW, DCW, IR Connection ACW, DCW and IR tests use the HIGH... -
Page 13: Gb Connection
TEST LEAD CONNECTION GB Connection GB tests use the SENSE H/L and SOURCE H/L Background terminals with the GTL-215 test leads. GB Connection GPT-12000 Source H Sense H Source L Sense L 1. Turn the power off on the safety tester. Steps 2. -
Page 14: Cont Connection
GPT-10000 Series Quick Guide CONT Connection CONT tests use the OUTPUT and RETURN Background terminals with the GTL-115 test leads. GONT GPT-12000 Connection Output Return terminal 1. Turn the power off on the safety tester. Steps 2. Connect the OUTPUT test lead (red) to the OUTPUT terminal. -
Page 15: Operation
OPERATION PERATION This section describes the overview of the operation modes along with statuses for the GPT-12000 safety testers. The testers have two main testing modes (MANU, AUTO), one system mode (SYSTEM) and 5 main operation statuses (READY, TEST, PASS, FAIL and STOP). -
Page 16: Manu Mode
GPT-10000 Series Quick Guide MANU Mode MANU mode is used to create and execute a Background single test. Only under MANU mode can parameters be edited for each manual test. 1. Press the MANUAL key on the front panel. Steps 2. - Page 17 OPERATION TEST status 5. The test will start by showing the ongoing ramp up time followed by the ongoing test time. The test will continue until the test is finished or stopped. If Double Action is ON, ensure the START button is pressed immediately after the STOP button was WARNING pressed within 0.5s.
-
Page 18: Auto Mode
GPT-10000 Series Quick Guide AUTO Mode AUTO mode indicates that the tester is automatic, Background which consists of a sequential AUTO test of up to 10 MANU steps. Also, several groups of AUTO tests can be further interconnected for an advanced AUTO test. - Page 19 OPERATION 4. Ensure the tester is in the READY status. READY status 5. Press the START button when the tester is in the READY status. The AUTO test starts automatically and the display changes to each MANU step test in sequence until the last MANU step test is finished or stopped.
-
Page 20: System Mode
GPT-10000 Series Quick Guide SYSTEM Mode System mode covers the Display Set, Buzzer, Background Interface, Control, System Time, Data Initialize, Information, Statistics and USB Disk settings. These settings are system-wide and applied to both MANU and AUTO tests. 1. Press the SYSTEM button on the front panel... - Page 21 OPERATION 4. Press the ENTER soft-key to enter the page of desired setting for further configurations. 5. Refer to the User Manual for detailed info of pages of each setting. The AUTO and MANUAL buttons can be pressed at Note any time to jump to their belonging pages.
-
Page 22: Ready Status
GPT-10000 Series Quick Guide READY Status When the tester is in READY status of MANU Background or AUTO test, it is ready to begin testing. Pressing the START button will begin testing and put the tester into TEST status. Pressing the AUTO key will change from MANU –... -
Page 23: Pass Status
OPERATION PASS Status When a MANU test result is within the range of Background HI and LOW sets, the PASS status is shown on display. For AUTO test, the PASS status only shows when all the affiliated test steps are passed. PASS status in MANU test PASS status in... -
Page 24: Stop Status
GPT-10000 Series Quick Guide FAIL status in AUTO test STOP Status STOP status is shown when an AUTO test did Background not finish running and has been stopped by user. Pressing STOP will return the tester to READY status. STOP status is not shown in MANU test as it returns to READY status directly after user pressed STOP button in MANU test.
