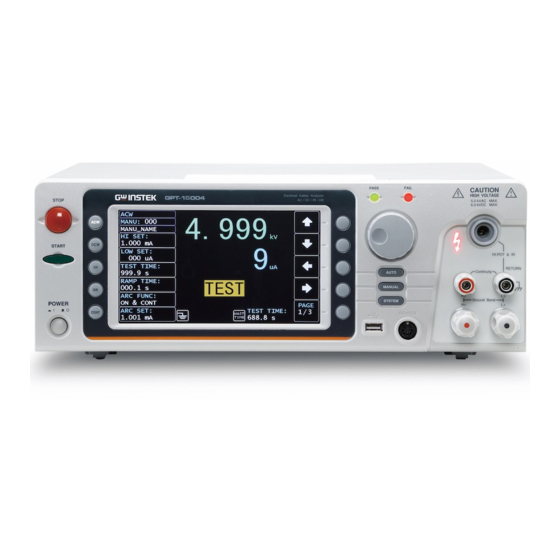

Page 1 Electrical Safety Analyzer GPT-10000 Series USER MANUAL ISO-9001 CERTIFIED MANUFACTURER...
Page 2 This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will company. The information in this manual was correct at the time of printing. However, Good Will continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.
Page 3: Table Of Contents
Table of Contents Table of Contents SAFETY INSTRUCTIONS ..........5 GETTING STARTED ............9 GPT-10000 Series Overview ....10 Front Panel Overview ......15 Rear Panel Overview ......19 Set Up ..........22 OPERATION ..............29 Menu Tree ..........31 Test Lead Connection ......
Page 4 GPT-10000 Series User Manual Factory Default Parameters ....246 GPT-10000 Specifications ....248 GPT-15001/15002/15003 Dimensions 256 GPT-15004 Dimensions...... 257 GPT-12001/12002/12003 Dimensions 258 GPT-12004 Dimensions...... 259 Declaration of Conformity ....260 Declaration of Conformity ....261 INDEX ................262...
Page 5: Safety Instructions
SAFETY INSTRUCTIONS AFETY INSTRUCTIONS This chapter contains important safety instructions that you must follow during operation and storage. Read the following before any operation to ensure your safety and to keep the instrument in the best possible condition. Safety Symbols These safety symbols may appear in this manual or on the instrument.
Page 6 GPT-10000 Series User Manual Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Safety Guidelines Do not place any heavy object on the General ...
Page 7 SAFETY INSTRUCTIONS (Measurement categories) EN 61010-1:2010 specifies the measurement categories and their requirements as follows. The GPT-10000 does not fall under category II, III or IV.  Measurement category IV is for measurement performed at the source of low-voltage installation. ...
Page 8 GPT-10000 Series User Manual (Pollution Degree) EN 61010-1:2010 specifies the pollution degrees and their requirements as follows. The GPT-10000 falls under degree 2. Pollution refers to “addition of foreign matter, solid, liquid, or gaseous (ionized gases), that may produce a reduction of dielectric strength or surface resistivity”.
Page 9: Getting Started
/ rear panel introduction. After going through the overview, please read the safety considerations in the Set Up chapter. GPT-10000 Series Overview ..........10 Series lineup ....................10 Lineup Overview..................11 Main Features ...................11 Accessories ....................12 Package Contents ..................14...
Page 10: Gpt-10000 Series Overview
See the following Lineup Overview for more details. The GPT-10000 Series can store up to 100 manual tests, as well as run up to 10 manual tests sequentially as an automatic test, allowing the safety analyzers to accommodate any number of safety standards, including IEC, EN, UL, CSA, GB, JIS and others.
Page 11: Lineup Overview
GETTING STARTED Lineup Overview Model name CONT  GPT-12001     GPT-12002     GPT-12003      GPT-12004 *  GPT-15001   * GPT-15002    * GPT-15003    ...
Page 12: Accessories
GPT-10000 Series User Manual Ramp up time control Features  Ramp down time control  Safety discharge  100 test conditions (MANU mode)  100 automatic tests (AUTO mode)  Over temperature, voltage and current  protection Pass, Fail, Test, High Voltage and Ready ...
Page 13 GETTING STARTED Optional Part number Description Accessories GHT-205 High Voltage Test Probe GHT-113 High Voltage Test Pistol GTL-232 RS232C cable GTL-248 GPIB cable GTL-246 USB cable (A to B type) GRA-440 Rack Adapter Panel (19”, 4U) (GPT-12000/15000 only) Options Part number Description Opt.01 GPIB Interface GPIB module...
Page 14: Package Contents
GPT-10000 Series User Manual Package Contents Check the contents before using the GPT-10000 series. Opening the box GPT-10000 unit GHT-115 test leads x1 Contents   (single unit) Quick Start Guide GTL-215 GB test leads   x1 (GPT-12004/GPT- User manual CD ...
Page 15: Front Panel Overview
GETTING STARTED Front Panel Overview GPT-12001/12002/12003/12004/15001/15002/15003/15004 Description Item STOP Button START Button POWER Switch Test Function Keys (Green Zone) Display Mode Keys (AUTO, MANUAL, SYSTEM in Red Zone) Soft Keys (Blue Zone) USB A-Type Host Port PASS/FAIL Indicators REMOTE Terminal Scroll Wheel HIGH VOLTAGE Indicator HIGH VOLTAGE Output Terminal...
Page 16 GPT-10000 Series User Manual The STOP button is used to STOP button stop/cancel tests. The STOP button will also put the safety analyzer in the READY status to begin testing. The START button is used to start tests. START button...
Page 17 GETTING STARTED The PASS and FAIL indicators Pass/Fail light up upon a PASS or FAIL test indicators result at the end of a manual test or automatic test. The REMOTE terminal is used to REMOTE connect to a remote controller. terminal The scroll wheel is used to edit Scroll wheel...
Page 18 GPT-10000 Series User Manual The OUTPUT terminal (red) OUTPUT and All models and RETURN terminal (black) RETURN terminals are used for CONT (Continuity) test. The SENSE H, SENSE L, SENSE H/L and GPT-12004, SOURCE H/L SOURCE H and SOURCE L,...
Page 19: Rear Panel Overview
GETTING STARTED Rear Panel Overview GPT-12001/12002/12003/12004/15001/15002/15003/15004 Description Item HIGH VOLTAGE Output Terminal HIGH VOLTAGE Indicator SENSE H & Output Terminal SENSE L & RETURN Terminal SOURCE H (GPT-12004/GPT-15004 only) SOURCE L (GPT-12004/GPT-15004 only) RS-232 Port USB B-Type Interface Port Signal I/O Port GPIB Port/Ethernet LAN Port (Optional) AC Mains Input (Power Cord Socket) HIGH VOLTAGE pilot lamp...
Page 20 GPT-10000 Series User Manual The SIGNAL I/O port is used to SIGNAL I/O port monitor the tester status (PASS, FAIL, TEST) and input (START/ STOP signals). It is also used with the Interlock key. The USB B-Type port is used for USB B-Type port remote control.
Page 21 GETTING STARTED The HIGH VOLTAGE HIGH VOLTAGE terminal output is used for output terminal outputting the testing voltage in ACW, DCW and IR tests. The terminal is recessed for safety and used in conjunction with the RETURN terminal. USE EXTREME CAUTION. Do not touch the WARNING HIGH VOLTAGE terminal during testing.
Page 22: Set Up
GPT-10000 Series User Manual Set Up Tilting the Stand Place the unit on a flat surface horizontally. Horizontal position Gently pull the 2 stands out from the bottom and Tilt stand the unit will be placed in the tilt stand position.
Page 23: Line Voltage Connection And Power Up
GETTING STARTED Line Voltage Connection and Power Up The GPT-10000 accepts line voltages of Background 100 - 240V at 50Hz or 60Hz. 1. Connect the power cord to Steps the AC Mains Input socket on the rear panel. 2. If the power cord does not have an earth ground, ensure the ground terminal is connected to an...
Page 24: Installing The Optional Gpib Card
GPT-10000 Series User Manual Installing the Optional GPIB Card The optional GPIB is a user-installable option. Background Follow the instructions below to install the GPIB card. Before installing optional GPIB/LAN card ensure the WARNING GPT-10000 is turned off and disconnected from power.
Page 25: Workplace Precautions
GETTING STARTED Workplace Precautions The GPT-10000 is a high voltage instrument Background that outputs dangerous voltages. The following section describes precautions and procedures that must be followed to ensure a safe work environment. The GPT-10000 generates voltages in excess of WARNING 5kVAC or 6kVDC.
Page 26: Operating Precautions
GPT-10000 Series User Manual Operating Precautions The GPT-10000 is a high voltage instrument Background that outputs dangerous voltages. The following section describes precautions and procedures that must be followed to ensure that the tester is operated in a safe manner.
Page 27 GETTING STARTED 5. Ensure the earth ground of the line voltage is properly grounded. 6. Only connect the test leads to the HIGH VOLTAGE/SOURCE H/SENSE H terminals before the start of a test. Keep the test leads disconnected at all other times. 7.
Page 28: Basic Safety Checks
GPT-10000 Series User Manual Basic Safety Checks The GPT-10000 is a high voltage device and as Background such, daily safety checks should be made to ensure safe operation. 1. Ensure all test leads are not broken and are free from defects such as cracks or splitting.
Page 29: Operation
OPERATION PERATION Menu Tree..............31 Menu Tree Overview ................32 Test Lead Connection ............. 36 ACW, DCW, IR Connection ..............36 GB Connection ..................37 CONT Connection ..................38 Manual Tests ..............39 Setting the Test Function .................40 Choose/Recall a Manual Test Number ..........41 Creating a MANU Test File Name ............42 Setting the Upper and Lower Limits .............43 Setting the Test Time ................45...
Page 30 GPT-10000 Series User Manual PASS / FAIL MANU Test ............... 85 Special MANU Test Mode (000) ........90 Sweep Function............... 92 Automatic Tests .............. 95 Choose/Recall an AUTO Test ..............96 Creating an AUTO Test File Name ............97 Adding a Step to the AUTO Test ............98 Continuous AUTO Tests ...............
Page 31: Menu Tree
OPERATION Menu Tree This section describes the overall structure of the operation statuses and modes for the GPT-10000 safety analyzers. The testers have two main testing modes (MANU, AUTO), one system mode (SYSTEM) and 5 main operation statuses (READY, TEST, PASS, FAIL and STOP).
Page 32: Menu Tree Overview
GPT-10000 Series User Manual Menu Tree Overview MANU mode is used to create and/or execute a MANU Mode single test. Only under MANU mode can parameters be edited for each manual test. MANU mode AUTO mode indicates that the tester is...
Page 33 OPERATION System mode covers the Display Set, Buzzer, SYSTEM Mode Interface, Control, System Time, Data Initialize, Information, Statistics, USB Disk and CONTACT CHK settings. These settings are system-wide and applied to both MANU and AUTO tests. SYSTEM mode When the tester is in READY status of MANU READY Status or AUTO test, it is ready to begin testing.
Page 34 GPT-10000 Series User Manual TEST status is active when a MANU test or TEST Status AUTO test is running. Pressing STOP will (Orange Color) cancel the MANU test or the remaining steps in an AUTO test instantly. The TEST status in AUTO test is identical with that of MANU test.
Page 35 OPERATION When a MANU test result is beyond the range FAIL Status of HI and LOW sets, the FAIL status is shown (RED Color) on display. For AUTO test, the FAIL status is shown when any of the test steps fails, even only one of them.
Page 36: Test Lead Connection
GPT-10000 Series User Manual Test Lead Connection This section describes how to connect the GPT-10000 to a DUT for withstanding, insulation resistance, ground bond as well as continuity testing. ACW, DCW, IR Connection ACW, DCW and IR tests use the HIGH...
Page 37: Gb Connection
OPERATION GB Connection GB tests use the SENSE H/L and SOURCE H/L Background terminals with the GTL-215 test leads. GB Connection GPT-10000 Source H Sense H Source L Sense L 1. Turn the power off on the safety analyzer. Steps 2.
Page 38: Cont Connection
GPT-10000 Series User Manual CONT Connection CONT tests use the OUTPUT and RETURN Background terminals with the GTL-115 test leads. CONT GPT-10000 Connection Output Return terminal 1. Turn the power off on the safety analyzer. Steps 2. Connect the OUTPUT test lead (red) to the OUTPUT terminal.
Page 39: Manual Tests
OPERATION Manual Tests This section describes how to create, edit and run a single ACW, DCW, IR, GB and CONT manual tests. Each Manual setting described in this chapter only applies to the selected manual test – no other manual tests are affected. Each manual test can be stored/recalled to/from one of 100 memory locations.
Page 40: Setting The Test Function
GPT-10000 Series User Manual Setting the Test Function There are five test functions, AC Withstand, DC Background Withstand, Insulation Resistance, Ground Bond and Continuity tests. 1. If the tester is in AUTO or SYSTEM Steps mode, press the MANUAL key to put the tester into MANU mode.
Page 41: Choose/Recall A Manual Test Number
OPERATION Choose/Recall a Manual Test Number ACW, DCW, IR, GB and CONT tests can only Background be created and edited in the MANU mode. MANU number 001 to 100 can be saved and thus be loaded when editing/creating a MANU test or AUTO test.
Page 42: Creating A Manu Test File Name
GPT-10000 Series User Manual Creating a MANU Test File Name Each manual test can have a user-defined name Background (default: MANU_NAME) up to 10 characters long. See the available list of characters below. Character List 0 1 2 3 4 5 6 7 8 9...
Page 43: Setting The Upper And Lower Limits
OPERATION Setting the Upper and Lower Limits There is both a LOW and HI judgment setting. Background When the measured value is below the LOW SET setting, the test will be judged as FAIL. When the value exceeds the HI SET setting the test will be judged as FAIL.
Page 44 GPT-10000 Series User Manual 3. Press the UP / DOWN arrow soft- keys to bring the cursor to the LOW SET setting. LOW SET cursor 4. Use the scroll wheel to set the LOW SET limit. 000uA~41.99mA (GPT-12XXX) ACW (LOW) 000uA~109.9mA (GPT-15XXX)
Page 45: Setting The Test Time
OPERATION Setting the Test Time This setting is used to set the test time for a test. Background The test time determines how long the test voltage or current is applied to the DUT. This test time does not include RAMP UP time or RAMP DOWN time (note: GB and CONT do not have RAMP UP or RAMP DOWN).
Page 46 GPT-10000 Series User Manual 2. Use the scroll wheel to set the TEST TIMER value. OFF, 000.3s~999.9s OFF, 000.3s~999.9s 000.3s~999.9s 000.3s~999.9s CONT 000.3s~999.9s With the ACW test function, when the test current Note is beyond 30mA, the Ramp Up Time + Test Time cannot exceed 240 seconds.
Page 47: Setting The Ramp Up Time
OPERATION Setting the Ramp Up Time The Ramp Up time is the total time taken for Background the tester to reach the test voltage level. The Ramp Up time starts with a start voltage of 50 volts. The Ramp Up time can be set from 000.1 to 999.9 seconds.
Page 48 GPT-10000 Series User Manual After pressing START to begin a test with set Ramp Time RAMP TIME, a section at the lower right corner Duration Indicator of display shows the counting duration of RAMP TIME, which will run to the set value followed by the test time.
Page 49: Setting The Ramp Down Time
OPERATION Setting the Ramp Down Time The Ramp Down time is the time taken for the Background DUT to discharge the test voltage level. The Ramp Down time can be set from 000.0 to 999.9 seconds. The Ramp DOWN time is only applicable for ACW, DCW and IR tests.
Page 50 GPT-10000 Series User Manual 3. Use the scroll wheel to set the RAMP DOWN value. 000.0s~999.9s 000.0s~999.9s 000.0s~999.9s After the set TEST TIME is fully completed, a Ramp Down Duration section at the lower right corner of display Indicator shows the counting duration of RAMP DOWN, which will run to the set value by user.
Page 51: Setting The Test Voltage Or Test Current
OPERATION Setting the Test Voltage or Test Current The test voltage can be set from 0.050kV to Background 5.1kV for ACW, 0.050kV to 6.1kV for DCW and 0.050 to 1.2kV for IR (50V steps*). For GB tests the test current can be set from 3A to 33A. As for CONT test, the test current is fixedly set at the default value of 100mA.
Page 52 GPT-10000 Series User Manual At least 0.3 seconds is needed to reach a set voltage of 50V/10mA. At least 0.3 seconds is needed to reach a set voltage of 50V/2mA. Test current for CONT is fixed at 100mA When setting the current, be aware that a maximum...
Page 53: Setting The Test Frequency
OPERATION Setting the Test Frequency A test frequency of 60Hz or 50Hz can be set, Background regardless of the input line voltage. The test frequency setting only applies to ACW and GB tests. The test frequency can only be set for ACW or GB Note tests.
Page 54: Setting A Reference Value
GPT-10000 Series User Manual Setting a Reference Value The REF VALUE acts as an offset. The REF Background VALUE is subtracted from the measured current (ACW, DCW) or measured resistance (IR, GB, CONT). 1. Press the PAGE soft-key to move to...
Page 55: Setting An Initial Voltage
OPERATION 000uA~ 41.99mA (GPT-12XXX) *HI SET + REF value ≤ 42.00mA 000uA~ 109.9mA (GPT-15XXX) *HI SET+REF value ≦ 110.0mA 000uA~ 10.99mA (GPT-12XXX) *HI SET + REF value ≤ 11.00mA 000uA~ 20.99mA (GPT-15XXX) *HI SET+REF value ≦ 21.00mA 000.0MΩ~50.00GΩ 000.0mΩ~650.0mΩ *ISET x (HI SET + REF value) is no greater than 7.2V 00.00Ω~80.00Ω...
Page 56 GPT-10000 Series User Manual It is easy to set a preferred percentage of the test voltage in the INIT VOLTAGE setting and the starting test voltage will commence from the value corresponding to the set percentage relative to the target test voltage.
Page 57: Setting The Wait Time
OPERATION Setting the Wait Time The Wait Time refers to the pending time Background before FAIL judgment appears. By default, FAIL judgment appears when Test Time has reached 0.3 second at the earliest manner. However, when user sets 1.0 second for Wait Time on the tester with 0.5 second of Ramp Up time and 1.0 second of Test Time, the FAIL judgment will be shown when Test Time has...
Page 58 GPT-10000 Series User Manual WAIT TIME cursor 3. Use the scroll wheel to set the WAIT TIME value. 000.0s~999.9s 000.0s~999.9s 000.0s~999.9s Wait Time While the WAIT TIME is set, the indicator of WAIT Indicator TIME will be shown on the display in the set duration during a test progress for clear identification for user.
Page 59: Setting The Arc Function
OPERATION Setting the ARC Function ARC detection, otherwise known as flashover Background detection, detects fast voltage or current transients that are not normally detected. Arcing is usually an indicator of poor withstanding insulation, electrode gaps or other insulating problems that cause temporary spikes in current or voltage during ACW and DCW testing.
Page 60 GPT-10000 Series User Manual ARC MODES: OFF ON & CONT ON & STOP 3. If the ARC MODE was set to either ON & CONT, or ON & STOP, the ARC current level can be edited. Press the DOWN arrow soft-key to bring the cursor to the ARC SET setting field.
Page 61 OPERATION 6. Press the UP / DOWN arrow soft- keys to bring the cursor to the ARC SPEED setting field. ARC SPEED cursor 7. Use the scroll wheel to select the ARC SPEED modes. FAST Threshold for the ARC SPEED narrowest width of detected arc, which is the most...
Page 62: Setting Max Hold
GPT-10000 Series User Manual Setting MAX HOLD The MAX HOLD setting will hold the Background maximum current measured in the ACW and DCW tests or the maximum resistance measured in the IR and GB tests. For instance, when running an IR test with 120...
Page 63: Setting Pass Hold
OPERATION 3. Use the scroll wheel to set MAX HOLD. OFF, ON MAX HOLD Setting PASS HOLD The PASS HOLD setting refers to the holding Background duration after PASS judgment is shown on the display. When the PASS HOLD setting is set, a PASS judgment is held until the set duration is fully reached.
Page 64: Setting Ir Mode
GPT-10000 Series User Manual PASS HOLD cursor 3. Use the scroll wheel to set PASS HOLD duration. 000.0s ~ 999.9s, ON PASS HOLD  The STOP key can be pressed at any time in Note the set duration of PASS HOLD to promptly halt the set PASS HOLD duration.
Page 65 OPERATION second of test time at the earliest manner, regardless of the set test time. The TIMER mode will run a test in a full course completely in accordance with the set test time, whether the final judgment is PASS or FAIL. If the DUT is under the situation of abnormal Note measurement, e.g., short circuit, the FAIL...
Page 66: Setting Gnd Offset
GPT-10000 Series User Manual Setting GND OFFSET The GND OFFSET is used to determine the Background offset resistance of the tester. When a GND OFFSET is performed, the reference is automatically set to the measured resistance. GND OFFSET setting is only applicable to IR test.
Page 67 OPERATION 3. Press the START button to perform the GND OFFSET. The resistance of the tester, after the GND OFFSET has finished, will be added into the REF VALUE field as the display shown below. Resistance of the tester...
Page 68: Setting Gb Contact
GPT-10000 Series User Manual Setting GB Contact Basically, GB test has no ramp up time and thus Background starts from the set test time by user directly. However, due to some cases where a buffer time before test time is in fact required for GB test, e.g., in conveyor where DUTs are tested for...
Page 69 OPERATION GB CONTACT After every parameter including GB CONTACT is Duration well set, press START to begin the GB test. A Indicator section at the lower right corner of display shows the counting duration of GB CONTACT, which will run to the set value followed by the test time. See the screenshot shown below.
Page 70: Zero Check For The Test Leads
GPT-10000 Series User Manual Zero Check for the Test Leads The Zeroing function is used to determine the Background resistance of the test leads for GB and CONT tests. When a ZERO CHECK is performed, the reference is automatically set to the measured resistance of the test leads.
Page 71 OPERATION ZERO CHECK cursor ZERO CHECK indicator 4. Press the START button to perform the zero check. The resistance of the test leads, after the ZERO CHECK has finished, will be added into the REF VALUE field as the display shown below. Resistance of the test leads Remember to replace the test leads to the proper Note...
Page 72 GPT-10000 Series User Manual FAIL – GBI LOW If SOURCE H/L terminals are open or poorly connected, the FAIL – GBI LOW status will appear on the screen. Please re-check the connection of SOURCE H/L terminals again. FAIL – GBI LOW status...
Page 73: Setting The Grounding Mode
OPERATION Setting the Grounding Mode When GROUND MODE is set to ON, the GPT- Background 10000 grounds the return terminal to the ground. This mode is best for DUTs that are grounded to an earth ground by their chassis, fixtures or operation environment. This mode measures the potential of the HIGH VOLTAGE terminal with respect to earth ground.
Page 74 GPT-10000 Series User Manual ACW/DCW, GROUND MODE OFF, DUT floating If the current value, which results from comparison Note between I1 and I2 current, is above 3mA, once user unexpectedly touches the DUT, the GFCI, Ground Fault Circuit Interrupter, function activates and...
Page 75 OPERATION IR, GROUND MODE OFF, DUT floating GB, GROUND MODE ON, DUT grounded GB, GROUND MODE OFF, DUT floating...
Page 76 GPT-10000 Series User Manual Cont., GROUND MODE ON, DUT grounded In terms of Continuity test, it is compulsory to Note ground the DUT and thus GROUND MODE is ON. When GROUND MODE is set to OFF, the DUT, Warning fixtures or connected instrumentation cannot be grounded.
Page 77 OPERATION GROUND MODE cursor 3. Use the scroll wheel to set the GROUND MODE. OFF, ON GROUND MODE 4. The GROUND MODE icon on the display changes accordingly. GROUND MODE ON GROUND MODE OFF Under the IR test mode, when GROUND MODE is Note ON but test time is se t <...
Page 78: Setting Contact Check
GPT-10000 Series User Manual Setting Contact Check The CONTACT CHK function is used to Background determine if open circuit or short circuit occurs between the test leads and DUT under the ACW, DCW and IR tests. Before activating this function, it is first required to define a reference value along with relevant thresholds, for which refer to page 161.
Page 79 OPERATION 4. After pressing the START button, the GPT-10000 unit will perform the CONTACT CHK before running a MANU test. If the measured current is lower than the reference value by user-defined percentage, the “OPEN” status appears on the screen. While the measured current is higher than the reference value by user-defined percentage, the “SHORT”...
Page 80: Running A Manu Test
GPT-10000 Series User Manual Running a MANU Test A test can be run when the tester is in READY Background status. The tester cannot start to run a test under the Note following conditions: A protection setting has been tripped; when a ...
Page 81 OPERATION READY status 2. Press the START button when the tester is in the READY status. The manual test starts accordingly and the tester goes into the TEST status. TEST status 3. The test will start by showing the ongoing ramp up time followed by the ongoing test time and the ongoing ramp down time.
Page 82 GPT-10000 Series User Manual RAMP UP TIME Ongoing RAMP UP TIME TEST TIME Ongoing TEST TIME RAMP DOWN TIME Ongoing RAMP DOWN TIME RAMP DOWN time only appears when user Note has activated it. See page 49 for details.
Page 83 OPERATION Measured Current ACW Example Test Voltage DCW Example Test Voltage Measured Current IR Example Measured Resistance Test Voltage...
Page 84 GPT-10000 Series User Manual Measured Resistance GB Example Test Current CONT Example Test Current Measured Resistance 1. To stop the test at any time when it Stop the Test is running, press the STOP button. The test will stop immediately.
Page 85: Pass / Fail Manu Test
OPERATION PASS / FAIL MANU Test If the test is allowed to run to completion (the Background test is not stopped or a protection setting is not tripped) then the tester will judge the test as either PASS or FAIL. The test will be judged PASS when: Note The HI SET and LO SET limits have not been...
Page 86 GPT-10000 Series User Manual 2. The tester will immediately restore back to the READY status after PASS judgment. However, if the PASS HOLD is activated, PASS judgment will persist until the set duration of PASS HOLD is fully met. Refer to page 63 for details.
Page 87 OPERATION IR PASS Timing START TEST PASS Output V time RAMP TEST TIME RAMP DOWN & DISCHARGE GB PASS Timing START TEST PASS Output I time Contact RAMP Test Time 0.1s 0.1s Time CONT PASS Timing START TEST PASS Output I time Test Time 1.
Page 88 GPT-10000 Series User Manual FAIL Judgment 2. The FAIL judgment will be held on the display until the STOP button is pressed. Pressing the STOP button will return the tester back to the READY status. FAIL Timing The timing diagrams below show the ACW, DCW,...
Page 89 OPERATION DCW FAIL Timing START TEST FAIL Output V time RAMP TEST TIME DISCHARGE IR FAIL Timing START TEST FAIL Output V time RAMP TEST TIME DISCHARGE GB FAIL Timing START TEST FAIL Output I time Contact RAMP Test Time 0.1s 0.1s Time CONT FAIL...
Page 90: Special Manu Test Mode (000)
GPT-10000 Series User Manual Special MANU Test Mode (000) When MANU number 000 is selected, the Special Test Mode Overview special test mode is activated. Under the special test mode, the voltage can be changed during a test in real time (ACW, DCW only). The test function can also be changed when in READY status, unlike under normal operation.
Page 91 OPERATION 3. Set all the necessary parameters for Pages 42 ~ a test and save. Note: A different test setup can be saved for each test function (ACW, DCW, IR, GB and CONT). Below is an example of ACW function in special manual mode.
Page 92: Sweep Function
GPT-10000 Series User Manual Sweep Function The GPT-10000 Series has access to the sweep Sweep Function Overview mode function, which creates a graph of one of the ACW, DCW, IR, GB or CONT tests in either Manual test or the special MANU mode. The graph will plot the output voltage, current or resistance versus time.
Page 93 OPERATION 1. When a test has finished, press Steps of View the corresponding button, e.g., Sweep Graph DCW button for DCW test, to view the result of the sweep in an intuitive graph. Graph Test Items: TEST GREEN BLUE Measured voltage Measured current Measured voltage Measured current Measured voltage Measured resistance Measured current Measured resistance...
Page 94 GPT-10000 Series User Manual 2. Use the scroll wheel to move the cursor on the time axis (red highlight in x-axis). The measured values on the green and blue lines at that particular point in time are shown within the table below (orange highlight).
Page 95: Automatic Tests
OPERATION Automatic Tests This section describes how to create, edit and run automatic tests. Automatic tests allow you to link up to 10 different MANU tests and run them sequentially within a single AUTO test. Each stored MANU test is used as a test step when creating an AUTO test. In addition, up to 5 groups of AUTO test can be interconnected together to present an ever-advanced AUTO tests.
Page 96: Choose/Recall An Auto Test
GPT-10000 Series User Manual Choose/Recall an AUTO Test The tester must first be put into AUTO mode to Background create or run automatic tests. Up to 100 automatic tests can be saved or recalled. 1. If the tester is in MANU or...
Page 97: Creating An Auto Test File Name
OPERATION Creating an AUTO Test File Name Each automatic test can have a user-defined test Background file name (Default: AUTO_NAME) up to 10 characters long. See the character list below for the allowed characters. Character List 0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K W X Y Z a b c d e f g h i j k...
Page 98: Adding A Step To The Auto Test
GPT-10000 Series User Manual 4. The AUTO test file name is set when the current AUTO test is saved or when the cursor is moved to another setting. Adding a Step to the AUTO Test Up to 10 MANU tests (steps) can be added to Background an automatic (AUTO) test.
Page 99 OPERATION 3. Further press the DOWN arrow key followed by using the scroll wheel to choose another MANU STEP number to add to the automatic test. MANU STEP number cursor (2nd) 4. Repeat the previous steps for any other MANU tests that you wish to add to the automatic test.
Page 100: Continuous Auto Tests
GPT-10000 Series User Manual Continuous AUTO Tests As mentioned previously, up to 10 MANU Background steps can be grouped to form an AUTO test and user can designate each step from MANU step number 1 to 100 for an AUTO test. However, it is available to interconnect different AUTO tests together to present a series of AUTO tests.
Page 101 OPERATION 3. Repeat the step 1 to form another group of AUTO-002 test as the following display shown. AUTO-002 comprising 3 MANU steps 4. After the previous steps, return to the AUTO-001 test page followed by pressing START button for automatic test.
Page 102: Auto Test Page Editing
GPT-10000 Series User Manual AUTO Test Page Editing The AUTO test page contains each added Background MANU step (up to 10 steps) in order on the list along with the corresponding settings including Test Mode, Test V/I Setting, HI & LOW Settings as well as Step Hold action, respectively.
Page 103 OPERATION The gray-out MANU STEP When the AUTO test is run next time, the Note grayed-out steps will be simply skipped. 1. Press the UP / DOWN arrow soft- Delete a MANU keys to bring the cursor to the target STEP MANU STEP on list.
Page 104 GPT-10000 Series User Manual The designated MENU STEP is removed 1. Press the UP / DOWN arrow soft- Step Hold keys to bring the cursor to the target Editing MANU STEP on list. Target MANU STEP cursor 2. Press the STEP HOLD soft-key to bring the cursor to the STEP HOLD setting field.
Page 105 OPERATION STEP HOLD cursor 3. Use the scroll wheel to choose the options from STEP HOLD setting as listed below. P.H/F.H Step which is judged PASS will be held until START button pressed by user for next step. Step which is judged FAIL will be held until START button pressed by user for next step.
Page 106 GPT-10000 Series User Manual P.C/F.H The AUTO test will automatically continue when the step is judged PASS. Step which is judged FAIL will be held until START button pressed by user for next step. P.C/F.S The AUTO test will automatically continue when the step is judged PASS.
Page 107: Running An Automatic Test
OPERATION Running an Automatic Test An automatic test can be run when the tester is Background in READY status. The tester cannot start to run an AUTO test Note under the following conditions: Any protection modes have been tripped.  The INTERLOCK function is ON and the ...
Page 108 GPT-10000 Series User Manual 2. Press the START button when the tester is in the READY status. The AUTO test starts automatically and the display changes to each MANU TEST in sequence. 3. Each test will start by showing the ongoing ramp up time followed by the ongoing test time and the ongoing ramp down time.
Page 109 OPERATION 1. If P.H (Pass Hold) or F.H (Fail Hold) is set for a PASS & FAIL MANU STEP, then the tester will “hold” the HOLD testing when a PASS or FAIL judgment for that particular MANU STEP occurs. See page 105 for more details.
Page 110 GPT-10000 Series User Manual When in HOLD status, only the START and STOP Note buttons can be pressed, all other keys are disabled. 1. If F.S (Fail Stop) is set for a MANU STEP, then FAIL STOP the tester will “Stop” the whole AUTO test immediately when a FAIL judgment for that particular MANU STEP occurs.
Page 111 OPERATION Return to Restore to READY status READY status When in FAIL status, only the STOP button can be Note pressed, all other keys are disabled. 1. To stop the AUTO test at any time Stop a when it is running, press the STOP Running Test button.
Page 112 GPT-10000 Series User Manual AUTO test stops The exact stopped MANU STEP 2. To put the tester back into READY status, press the STOP button again. Restore to READY status 3. Or press the START button to restart the AUTO TEST again directly.
Page 113: Automatic Test Results
OPERATION Automatic Test Results If all the test steps are allowed to run to Background completion (the AUTO test is not stopped or a protection setting is not tripped) then the tester will judge each step as either PASS or FAIL. This is shown as a table after the automatic test has finished running.
Page 114 GPT-10000 Series User Manual Each MANU STEP must be passed PASS Judgment to present a PASS judgment on an AUTO TEST. (Excluding skipped MANU STEPs in gray color). When all the tests have been judged as PASS, the PASS indicator will be lit green and the buzzer will sound accordingly.
Page 115 OPERATION STOP Result Once a MANU STEP is stopped, the AUTO TEST will be presented STOP in its result. In other words, if a MANU STEP is stopped, the entire AUTO TEST is in STOP result, neither PASS nor FAIL judgment. And the remaining MANU STEP(s) will be ignored with blank in test result field.
Page 116 GPT-10000 Series User Manual 1. When an AUTO TEST is finished, the detailed Steps of test results along with values of each MANU Viewing Results STEP will be presented within the resultant table. The Read Data1 indicates the actual test V/I.
Page 117 OPERATION 1. The PASS/FAIL/STOP results will be held on Return to the screen until the STOP button is pressed. Ready Status 2. To put the tester back into READY status, simply press the STOP button (twice for a FAIL result). 3.
Page 118 GPT-10000 Series User Manual Test Result of Page 2/2 Multiple Pages indicator - 2/2 2. The test results in multiple pages of continuous AUTO TEST are almost identical with that of single AUTO TEST. Refer to page 113 to 116 for details on checking test results.
Page 119: System Settings
OPERATION System Settings The System settings are system-wide settings that apply to both MANU tests and AUTO tests. The System menu includes the following settings: Display Set settings → from page 120.  Buzzer Settings → from page122.  Interface Settings → from page 124. ...
Page 120 GPT-10000 Series User Manual Display Set Setting The Display Set page includes both brightness Description level and language settings. 1. Press the SYSTEM button on the Steps front panel when the tester is under READY status in either MANU or AUTO test.
Page 121 OPERATION 4. Press the UP/DOWN arrow soft- keys to move the cursor to the Language setting followed by using the scroll wheel to set the options of Language setting. English Language options 繁體中文 (Traditional Chinese) 简体中文 (Simplified Chinese) 5. Press the EXIT soft-key to exit from the DISPLAY SET page.
Page 122 GPT-10000 Series User Manual Buzzer Settings The Buzzer settings allow you to set the volume Description of buzzer sound for PASS/FAIL judgments. Also, it is available to set Key Sound for buttons being pressed. 1. Press the SYSTEM button on the...
Page 123 OPERATION 1 bar (low) ~ 3 bars (high) Buzzer Volume 4. Press the UP/DOWN arrow soft- keys to move the cursor to the Key Sound setting followed by using the scroll wheel to set the Key Sound setting. ON, OFF Key Sound 5.
Page 124 GPT-10000 Series User Manual Interface Settings The interface settings allows user to choose the Description remote interface configuration. USB, RS232 and GPIB (optional) can be selected. 1. Press the SYSTEM button on the Steps front panel when the tester is under READY status in either MANU or AUTO test.
Page 125 OPERATION 4. When RS-232 is selected, press the UP/DOWN arrow soft-keys to move the cursor to the Baud Rate setting followed by using the scroll wheel to set the Baud Rate setting. Baud Rate Setting 9600, 19200, 38400, for RS-232 57600, 115200, 5.
Page 126 GPT-10000 Series User Manual ON, OFF DHCP Setting for LAN It is required to update firmware up to version 1.06 Note above prior to LAN interface activation. Press the UP/DOWN arrow soft- keys to move the cursor to the Socket Port setting followed by using the scroll wheel to designate a target port value.
Page 127 OPERATION 0-255, 0-255, 0-255, 0-255 IP Address Setting 0-255, 0-255, 0-255, 0-255 Subnet Mask Setting 0-255, 0-255, 0-255, 0-255 Gatway Setting Press the UP/DOWN arrow soft- keys to move the cursor back to the Interface setting followed by pressing the SET soft-key to confirm setting. When pressing the SACN soft-key, the unit will scan the LAN card setting thoroughly.
Page 128 GPT-10000 Series User Manual If LAN card with network setting is scanned properly, the “LAN LINK” icon appears. If not, however, the icon doesn’t appear. When LAN setting is scanned properly and Interface is set as LAN, the “LAN LINK” icon shows as the following figures.
Page 129 OPERATION When LAN setting is Not scanned properly and Interface is set as LAN, the “LAN OPEN” icon shows as the following figures. OPEN icon in MANU LAN OPEN icon LAN OPEN icon OPEN icon in AUTO 7. Press the EXIT soft-key to exit from the INTERFACE page.
Page 130 GPT-10000 Series User Manual Control Settings The Control settings include 7 options: Control Description By, Double Action, Key Lock, Interlock, Start Click For 1 Second, Power GND Check and Barcode Function Setting.  Control By is used to determine how a test is started.
Page 131 Barcode Function Setting is a feature which facilitates fast yet convenient MANU and AUTO tests for, in particular, assembly line application. It enables GPT-10000 series, with additional barcode scanner plugged in, to scan barcodes and edit into a list for prompt utilization in diversified tests.
Page 132 GPT-10000 Series User Manual Control By Front Panel settings Remote SIGNAL IO When SIGNAL IO is selected, press the PIN SET soft-key to enter the specific setting page. The setting page is divided into 2 sections; the upper is for output...
Page 133 OPERATION SIGNAL IO Output PINs (green zone) SIGNAL IO Selection for AUTO Test (blue zone) Press the UP/DOWN arrow soft- keys to move the cursor to target PINs (1~5) followed by using the scroll wheel to select the following 6 options for each pin. PINs READY, TEST, PASS, FAIL, Settings...
Page 134 GPT-10000 Series User Manual 1 signal It means one signal output of TEST for each PIN will be delivered to each step step with continuous counters within each interval between each step, which is particularly practical for certain applications. Further press the UP/DOWN arrow soft-keys to move the cursor to the PASS &...
Page 135 OPERATION Press the UP/DOWN arrow soft- keys to move the cursor to the Double Action setting followed by using the scroll wheel to set the Double Action setting. Double Action settings ON, OFF Press the UP/DOWN arrow soft- keys to move the cursor to the Key Lock setting followed by using the scroll wheel to set the Key Lock setting.
Page 136 GPT-10000 Series User Manual 4. Press the UP/DOWN arrow soft- keys to move the cursor to the Interlock setting followed by using the scroll wheel to set the Interlock setting. Interlock settings ON, OFF 5. Press the UP/DOWN arrow soft-...
Page 137 OPERATION Power GND Check settings ON, OFF When Power GND Check setting is ON but the instrument doesn’t connect to earth ground, the prompt message will appear in either MANU or AUTO mode as the figures below shown. MANU MODE POWER GND FAIL Message AUTO GND FAIL Message...
Page 138 GPT-10000 Series User Manual The barcode setting page is composed of a table with several columns and rows. First use the scroll wheel to choose PAGE number. 001~010 PAGE # BAR PAGE number cursor BAR setting indicator Press the DOWN arrow key to bring the cursor to the PAGE table.
Page 139 OPERATION  Use an USB virtual com port-compatible Note barcode scanner, which plugs into the USB Host Port on the front panel of GPT-10000 series, for ideal function result.  The length limit of barcode to be scanned is within 15 characters, which means up to 15 characters is displayed in BARCODE column for each barcode.
Page 140 GPT-10000 Series User Manual Use the LEFT/RIGHT arrow soft- keys to move the cursor to the TEST NUM followed by using the scroll wheel to determine the number of selected test mode. Refer to page 41 & 96 for test number creation.
Page 141 OPERATION 3 scanned barcodes with varied Example of settings in PAGE-001 table multiple scanned barcodes with complete settings If you want to delete a scanned Delete scanned barcode, use the UP/DOWN arrow barcode from list soft-keys to move the cursor to the row of target barcode followed by using the LEFT arrow soft-key to move the cursor to the BARCODE...
Page 142 GPT-10000 Series User Manual Barcode Repeat message When registered barcodes number reach the Barcode data full maximum 100, a warning message “DATA FULL” appears on the top bar with a warning sound composed of a short beep followed by a long beep indicating no available space for new barcode to be imported.
Page 143 OPERATION Press the EXIT soft-key to exit from the CONTROL page. The changes in CONTROL setting are saved Note instantly. The Double Action setting is ignored when the Note GPT-10000 is being controlled remotely via the USB, RS232 or GPIB interface. A beeper sounds twice when an unregistered Note barcode is scanned.
Page 144 GPT-10000 Series User Manual System Time Settings The date and time for tester system can be Description edited under this section. The button cell battery used for system date & time has the lifecycle of approximate 2 years in general.
Page 145 OPERATION Year settings 2000 ~ 2099 4. Press the UP/DOWN arrow soft- keys to move the cursor to the Month setting followed by using the scroll wheel to set the Month setting for system. Month settings 01 ~ 12 5. Press the UP/DOWN arrow soft- keys to move the cursor to the Date setting followed by using the scroll wheel to set the Date setting for...
Page 146 GPT-10000 Series User Manual Date settings 01 ~ 31 6. Press the UP/DOWN arrow soft- keys to move the cursor to the Hours setting followed by using the scroll wheel to set the Hours setting for system. Hours settings 00 ~ 23 7.
Page 147 OPERATION Minutes settings 00 ~ 59 8. Press the UP/DOWN arrow soft- keys to move the cursor to the Seconds setting followed by using the scroll wheel to set the Seconds setting for system. Seconds settings 00 ~ 59 9. Press the EXIT soft-key to exit from the SYSTEM TIME page.
Page 148 GPT-10000 Series User Manual Data Initialize Settings The settings of AUTO test, MANU test and Description SYSTEM saved by user can be initialized within this section. 1. Press the SYSTEM button on the Steps front panel when the tester is under READY status in either MANU or AUTO test.
Page 149 OPERATION Right arrow soft-key The status bar of Manu Data Init consists of 3 bars, Note which indicate the initializing action will not be implemented until 3 bars are fully achieved. After the initializing, the “OK” message appears. 4. Press the UP/DOWN arrow soft- keys to move the cursor to the Auto Data Init setting followed by pressing the right arrow soft-key for...
Page 150 GPT-10000 Series User Manual 5. Press the UP/DOWN arrow soft- keys to move the cursor to the System Data Init setting followed by pressing the right arrow soft-key for consecutive 3 times to initialize the System Data settings. Right arrow soft-key 6.
Page 151 OPERATION Information Section The Information section here discloses some Description basic information including model name, firmware version and the available functions. 1. Press the SYSTEM button on the Steps front panel when the tester is under READY status in either MANU or AUTO test.
Page 152 GPT-10000 Series User Manual Statistics Settings This section allows user to have a Description comprehensive overview of not only total test counts including PASS and FAIL amounts, individually, but also the respective counts of each test mode. More than that, user is able to view those data from an intuitive histogram.
Page 153 OPERATION 3. Press the ENTER soft-key to enter the statistics table. It is available to press the DATA INIT soft-key to initialize the accumulated statistics. DATA INIT soft-key After pressing the DATA INIT soft-key, all the statistics Note shown on this page will be initialized to 0 and the future tests will be re-accumulated from zero.
Page 154 GPT-10000 Series User Manual 5. The distributions of PASS and FAIL statistics are well illustrated in the histogram with table display in which the upper side reads the individual PASS and FAIL amounts for test function. The mid and lower side depicts FAIL...
Page 155 OPERATION 2. The SYSTEM page will be shown. Press the UP/DOWN arrow soft- keys to move the cursor to the USB DISK setting. 3. Press the ENTER soft-key to enter the USB Disk Auto Data Save setting followed by using the scroll wheel to turn on or off the setting, which automatically saves the test data into the inserted USB disk...
Page 156 GPT-10000 Series User Manual Use the scroll wheel to scroll through the available characters. Press the LEFT / RIGHT arrow soft- keys to move the cursor to the next character and finish the naming. 5. Press the UP/DOWN arrow soft-...
Page 157 OPERATION Only when “Internal Memory SAVE” is enabled can Note test data be stored into the internal memory amount. Press the SAVE USB soft-key to save test data into the inserted USB disk. NO USB DISK Warning If USB disk is Not properly inserted into GPT-10000 series, prompt message “NO USB DISK”...
Page 158 GPT-10000 Series User Manual Press the CLEAR DATA soft-key to clear the internal memory amount. NO TEST DATA Warning If there is no test data available (Amount: 00000), prompt message “NO TEST DATA” pops up. Due to the 30,000 counts capacity limitation on...
Page 159 OPERATION 7. Press the UP/DOWN arrow soft- keys to move the cursor to the Setting Data Save setting, which allows user to save individual data including MANUDATA, AUTODATA and SYSDATA or All data into the USB disk. Setting Data Save setting All, MANU, AUTO, SYSTEM Press the SAVE USB soft-key to save...
Page 160 GPT-10000 Series User Manual 8. Press the UP/DOWN arrow soft- keys to move the cursor to the Setting Data Load setting, which allows user to load individual data including MANUDATA, AUTODAT A and SYSDATA or All data from the USB disk.
Page 161 OPERATION  Note The changes in USB DISK setting are saved instantly.  The System Data Init function under DATA INIT section is Not able to clear Internal Memory Amount. Instead, only CLEAR DATA soft-key can clear internal memory amount completely. Make sure an USB disk is plugged into GTP-10000 unit before saving measurement data into the disk.
Page 162 GPT-10000 Series User Manual 1. Press the SYSTEM button on the Steps front panel when the tester is under READY status in either MANU or AUTO test. 2. The SYSTEM page will be shown. Press the UP/DOWN arrow soft- keys to move the cursor to the CONTACT CHK setting.
Page 163 OPERATION 4. Press the UP/DOWN arrow soft- keys to move the cursor to the Low Limit setting followed by using scroll wheel to determine an exact scale of Low Limit threshold that triggers the OPEN status warning. Low Limit settings 10% ~ 90% 5.
Page 164 GPT-10000 Series User Manual  Prior to RUN the Learning process, be sure to Note well set up test leads connection between the GPT-10000 unit and the DUT.  When reference value, for example, is defined as 4uA, and Hi and Low limits are set 400%...
Page 165: External Control
EXTERNAL CONTROL XTERNAL CONTROL The External Control chapter covers the REMOTE terminal and the SIGNAL I/O port. External Control Overview ..........166 Remote Terminal Overview ..............166 Remote Controller Operation ...............167 SIGNAL I/O Overview .................168 Using the SIGNAL I/O to Start/Stop Tests ........170 Using the Interlock Key .................171...
Page 166: External Control Overview
GPT-10000 Series User Manual External Control Overview The External Control section describes the front panel REMOTE terminal connection and the rear panel SIGNAL I/O port. Remote Terminal Overview The REMOTE terminal connector is a standard Overview 5-pin DIN terminal suitable for a remote controller.
Page 167: Remote Controller Operation
EXTERNAL CONTROL Remote Controller Operation The GPT-10000 accepts external remote Description controllers with a START and STOP button. To use the REMOTE terminal, the GPT-10000 must first be configured to accept a remote controller. Operating a remote controller is the same as operating the START and STOP buttons on the front panel.
Page 168: Signal I/O Overview
GPT-10000 Series User Manual SIGNAL I/O Overview The SIGNAL I/O port can be used to remotely Overview start/stop tests and monitor the test status of the instrument. The SIGNAL I/O port is also used for the interlock function. Refer to page 171 for details.
Page 169 EXTERNAL CONTROL Input Connection PIN 5 INPUT_COM PIN 3 INPUT_START PIN 4 INPUT_STOP Output PIN 7 OUTPUT 1 Connection PIN 8 OUTPUT 2 PIN 9 OUTPUT 3 PIN 10 OUTPUT 4 PIN 11 OUTPUT 5 PIN 15 OUTPUT COM Input Signals Signal Properties High level input voltage 5V ~ 32V...
Page 170: Using The Signal I/O To Start/Stop Tests
GPT-10000 Series User Manual Using the SIGNAL I/O to Start/Stop Tests To use the SIGNAL I/O port the CONTROL Background settings have to be set to SIGNAL IO in the SYSTEM mode. 1. Set the CONTROL option to Panel operation Page 129 SIGNAL IO in the SYSTEM mode.
Page 171: Using The Interlock Key
EXTERNAL CONTROL Using the Interlock Key When the INTERLOCK function is set to ON, Background tests are only allowed to start when both Interlock pins on the signal I/O port are shorted. Using the Interlock key will short the INTERLOCK1 and INTERLOCK2 pins on the signal I/O port.
Page 172: Remote Control
GPT-10000 Series User Manual EMOTE CONTROL This chapter describes basic configuration of IEEE488.2 based remote control. The remote interface supports USB, RS232 and GPIB. Interface Configuration ..........173 Command Syntax ............178 Command List .............. 181 Error Messages ............. 238...
Page 173: Interface Configuration
REMOTE CONTROL Interface Configuration USB Remote Interface Type A, host PC side Configuration connector Rear panel Type B GPT-10000 side connector CDC (communications device USB Class class) (VCP, Virtual Com Port) 1. Connect the USB cable to the rear Panel operation panel USB B-Type port.
Page 174 GPT-10000 Series User Manual Stop bit None Flow control 1: No connection Pin Assignment 1 2 3 4 5 2: RxD (Receive Data) 6 7 8 9 3: TxD (Transmit Data) 4: No connection 5: GND 6-9: No connection Tester...
Page 175 REMOTE CONTROL 1. Connect the RJ-45 cable to the Panel operation rear panel LAN port. 2. Set the Interface to LAN from the Page 124 SYSTEM mode. GPIB Remote Interface 0-31 GPIB Address Configuration GPIB 1. Connect the GPIB cable to the Panel operation rear panel GPIB port.
Page 176 GPT-10000 Series User Manual USB/RS232/LAN/GPIB Remote Control Function Check Invoke a terminal application such as Functionality RealTerm. check To check COM port number and other settings, see the Device Manager in PC. For WinXP; Control panel → System → Hardware tab.
Page 177 REMOTE CONTROL When an incorrect command is sent to the Err Display tester, the Err indicator will be displayed on the screen indicating there is an error in command. Err indicator Return to Panel Control When the instrument is remotely controlled all Background panel keys except the STOP button are disabled.
Page 178: Command Syntax
GPT-10000 Series User Manual Command Syntax Partial compatibility IEEE488.2 Compatible Partial compatibility Standard SCPI, 1999 SCPI commands follow a tree-like structure, Command organized into nodes. Each level of the Structure command tree is a node. Each keyword in an SCPI command represents each node in the command tree.
Page 179 REMOTE CONTROL A query is a simple or Query compound command followed by a question mark (?). A parameter (data) is returned. MANU:ACW:VOLTage? Example Commands and queries have two different Command Forms forms, long and short. The command syntax is written with the short form of the command in capitals and the remainder (long form) in lower case.
Page 180 GPT-10000 Series User Manual floating point 4.5e-1, 8.25e+1 <NR3> any of NR1, 2, 3 1, 1.5, 4.5e-1 <NRf> ASCII text TEST_NAME <string> string Message Carriage Return, Line feed code CR, LF Terminator...
Page 181: Command List
REMOTE CONTROL Command List System Commands SYSTem:LCD:BRIGhtness ..............185 SYSTem:BUZZer:VOLUME ..............185 SYSTem:BUZZer:KEYSound ..............186 SYSTem:TIME ..................186 SYSTem:STATistics ................186 SYSTem:ANALysis ................187 SYSTem:USBDisk:AUTOSAVE ............187 SYSTem:USBDisk:AMOUNT ...............188 SYSTem:USBDisk:FILENAME .............188 SYSTem:INTERNAL:SAVE ..............189 SYSTem:CONTact:HILIMIT ..............189 SYSTem:CONTact:LOWLIMIT ............189 SYSTem:CONTact:LEARNING ............190 SYSTem:ERRor ..................190 Function Commands FUNCtion:TEST ..................192 MEASure<x> ..................193 MAIN:FUNCtion ..................194 TESTok:RETURN ...................194 Manual Commands...
Page 182 GPT-10000 Series User Manual MANU:ACW:TTIMe ................201 MANU:ACW:ARCFunction ..............202 MANU:ACW:ARCCurrent ..............203 MANU:ACW:ARCSpeed ..............203 MANU:ACW:FREQuency ..............203 MANU:ACW:WAITtime ............... 204 MANU:ACW:RAMPdown ..............204 MANU:ACW:GROUNDMODE ............204 MANU:ACW:MAXHold ............... 205 MANU:ACW:PASShold ................ 205 MANU:ACW:REF .................. 206 MANU:ACW:INITvoltage ..............206 MANU:ACW:CONTACT ..............
Page 183 REMOTE CONTROL MANU:GB:CURRent ................220 MANU:GB:RHISet .................220 MANU:GB:RLOSet ................221 MANU:GB:TTIMe ..................221 MANU:GB:FREQuency .................221 MANU:GB:CONTact ................222 MANU:GB:GROUNDMODE ...............222 MANU:GB:MAXHold ................222 MANU:GB:PASShold ................223 MANU:GB:REF ..................223 MANU:GB:ZEROCHECK ..............224 MANU:CONTinuity:RHISet ..............224 MANU:CONTinuity:RLOSet ..............225 MANU:CONTinuity:TTIMe ..............225 MANU:CONTinuity:PASShold ............226 MANU:CONTinuity:REF ..............226 MANU:CONTinuity:ZEROCHECK ............227 Auto Commands AUTO:STEP ....................228 AUTO:NAME ..................229 AUTO:EDIT:ADD ..................230 AUTO<x>:EDIT:HOLD .................231...
Page 184 GPT-10000 Series User Manual Common Commands *CLS......................236 *IDN ......................236 *SRE ......................237 Remote Commands *RMTOFF ....................237...
Page 185: System:lcd:brightness
REMOTE CONTROL System Commands SYSTem:LCD:BRIGhtness ..............185 SYSTem:BUZZer:VOLUME ..............185 SYSTem:BUZZer:KEYSound ..............186 SYSTem:TIME ..................186 SYSTem:STATistics ................186 SYSTem:ANALysis ................187 SYSTem:USBDisk:AUTOSAVE ............187 SYSTem:USBDisk:AMOUNT ...............188 SYSTem:USBDisk:FILENAME .............188 SYSTem:INTERNAL:SAVE ..............189 SYSTem:CONTact:HILIMIT ..............189 SYSTem:CONTact:LOWLIMIT ............189 SYSTem:CONTact:LEARNING ............190 SYSTem:ERRor ..................190 SYSTem:LCD:BRIGhtness Query Sets the brightness of the LCD display from Description 1(dark) to 10(bright).
Page 186: System:buzzer:keysound
GPT-10000 Series User Manual 1 (low) ~ 3 (high) Parameter/ <NR1> Return parameter Example SYST:BUZZ:VOLUME 3 Sets the buzzer volume to the highest 3. SYSTem:BUZZer:KEYSound Query Turns the buzzer on or off for key sound. Description Syntax SYSTem:BUZZer:KEYSound {ON|OFF} Query Syntax SYSTem:BUZZer:KEYSound? Buzzer Key Sound on.
Page 187: System:analysis
REMOTE CONTROL Return parameter <string> Returns the latest statistics of all the function tests with counts of PASS and FAIL judgments respectively. Query Example SYST:STAT? >TOTAL AMOUNT=00071 >PASS AMOUNT=00059 >FAIL AMOUNT=00012 >FUNC,PASS ,FAIL , >ACW ,00026,00009, >DCW ,00000,00000, >IR ,00017,00003, >GB ,00000,00000, >CONT,00016,00000, SYSTem:ANALysis...
Page 188: System:usbdisk:amount
GPT-10000 Series User Manual Turns the USB disk auto save off. USB disk auto save on. Return parameter ON USB disk auto save off. Example SYST:USBD:AUTOSAVE ON Turns USB disk auto save on. SYSTem:USBDisk:AMOUNT Query Saves, clears or returns the amount of tests. When Description saving, there are 2 results as follows.
Page 189: System:internal:save
REMOTE CONTROL SYSTem:INTERNAL:SAVE Query Sets or returns the internal data save on or off. Description Syntax SYSTem:INTERNAL:SAVE {ON |OFF} Query Syntax SYSTem:INTERNAL:SAVE? Turns the internal data save on. Parameter Turns the internal data save off. Internal data save on. Return parameter ON Internal data save off.
Page 190: System:contact:learning
GPT-10000 Series User Manual 10% ~ 90% Parameter <value> 10% ~ 90% Return parameter <value> Example SYST:CONT:LOWLIMIT 80% Sets the threshold of Low Limit scale as 80% to the reference value. SYSTem:CONTact:LEARNING Query Sets or returns the current reference value for Description contact check function.
Page 191 REMOTE CONTROL 26,DC Over 50W [GPT-12XXX] 26,DC Over 100W [GPT-15XXX] 27,GBV > 7.2V 28,ARC <= HI Set 29,HI Set => ARC 30,Voltage Setting Error 31,Current Setting Error 32,Current HI SET Error 33,Current LO SET Error 34,Resistance HI SET Error 35,Resistance LO SET Error 36,REF Setting Error 37,Frequency Setting Error 38,ARC Setting Error...
Page 192: Function Commands
GPT-10000 Series User Manual Function Commands FUNCtion:TEST ..................192 MEASure<x> ..................193 MAIN:FUNCtion ..................194 TSETok:RETURN ................... 194 FUNCtion:TEST Query Turns the currently selected test (output) on or off. Description When HOLD is displayed on the screen during AUTO tests, use the FUNCtion:TEST command to move on to the next step.
Page 193: Measure
REMOTE CONTROL MEASure<x> Query Returns the test parameters & results of the tester Description in either MANU or AUTO mode. MANU mode: Returns the test parameters & results of a MANU test. AUTO mode: Returns the test parameters & results of the selected step (1-50) of the AUTO test.

Page 194: Main:function
GPT-10000 Series User Manual Example MEAS21? (in AUTO mode) > DCW,FAIL ,0.004kV, 000.0 uA ,T=000.3s Returns the step 21 of the current AUTO test result. MAIN:FUNCtion Query Changes the mode between AUTO and MANU. Description Syntax MAIN:FUNCtion {MANU|AUTO} Query Syntax MAIN:FUNCtion ? Puts the tester mode to MANU.
Page 195: Manual Commands
REMOTE CONTROL Manual Commands MANU:STEP ...................197 MANU:INITial ..................197 MANU:NAME ..................198 MANU:RTIMe ..................198 MANU:EDIT:MODE ................199 MANU:ACW:VOLTage.................199 MANU:ACW:CHISet ................200 MANU:ACW:CLOSet ................200 MANU:ACW:TTIMe ................201 MANU:ACW:ARCFunction ..............202 MANU:ACW:ARCCurrent ..............203 MANU:ACW:ARCSpeed ..............203 MANU:ACW:FREQuency ..............203 MANU:ACW:WAITtime ...............204 MANU:ACW:RAMPdown ..............204 MANU:ACW:GROUNDMODE ............204 MANU:ACW:MAXHold ...............205 MANU:ACW:PASShold ................205 MANU:ACW:REF ..................206 MANU:ACW:INITvoltage ..............206 MANU:ACW:CONTACT ..............207 MANU:DCW:VOLTage.................207...
Page 196 GPT-10000 Series User Manual MANU:IR:VOLTage ................214 MANU:IR:RHISet ................... 214 MANU:IR:RLOSet .................. 215 MANU:IR:TTIMe ................... 215 MANU:IR:WAITtime................216 MANU:IR:RAMPdown ................. 216 MANU:IR:GROUNDMODE ..............216 MANU:IR:MAXHold ................217 MANU:IR:PASShold ................218 MANU:IR:REF ..................218 MANU:IR:MODE ................... 219 MANU:IR:CONTACT ................219 MANU:GB:CURRent ................220 MANU:GB:RHISet .................
Page 197: Manu:step
REMOTE CONTROL MANU:STEP Query Sets the MANU test number. Description Syntax MANU:STEP <NR1> Query Syntax MANU:STEP? 0~100 Parameter/ <NR1> Return parameter Example MANU:STEP 100 Sets the manual test number to 100. MANU:INITial Query Loads the initial (default) settings for the selected Description MANU test number.
Page 198: Manu:name
GPT-10000 Series User Manual MANU:NAME Query Sets or returns the test name for the selected Description manual test. The test must be in MANU mode before this command can be used. Note only alphanumeric characters (A-Z, a-z, 0-9) and the “_” underscore character can be used to set the MANU test name.
Page 199: Manu:edit:mode
REMOTE CONTROL Example MANU:RTIM 0.5 Sets the ramp time to half a second. MANU:EDIT:MODE Query Sets or returns the mode (ACW, DCW, IR, GB, Description CONT) of the selected manual test. Syntax MANU:EDIT:MODE {ACW|DCW|IR|GB|CONT} Query Syntax MANU:EDIT:MODE? AC Withstand mode Parameter/ Return parameter DC Withstand mode...
Page 200: Manu:acw:chiset
GPT-10000 Series User Manual MANU:ACW:CHISet Query Sets or returns the ACW HI SET current value in Description milliamps. The test must first be in ACW mode before this command can be used. Note: An “Err” message will be shown on display if the Ramp Time + Test Time is >...
Page 201: Manu:acw:ttime
REMOTE CONTROL Sets or returns the ACW LOW SET current value Description in milliamps. The LOW SET value must be less than the HI SET value. The test must first be in ACW mode before this command can be used. The LOW SET range must use the HI SET range.
Page 202: Manu:acw:arcfunction
GPT-10000 Series User Manual Syntax MANU:ACW:TTIMe {<NR2>|OFF} Query Syntax MANU:ACW:TTIMe? 0.3 ~ 999.9 seconds Parameter <NR2> TIMER OFF 0.3 ~ 999.9 seconds Return parameter <NR2> TIMER is OFF TIME OFF Example MANU:ACW:TTIM 1 Sets the ACW test time to 1 second.
Page 203: Manu:acw:arccurrent
REMOTE CONTROL MANU:ACW:ARCCurrent Query Sets or returns the ACW ARC current value in mA. Description ARC must be enabled before the ARC current can be set. The test must first be in ACW mode before this command can be used. Syntax MANU:ACW:ARCCurrent <NR2>...
Page 204: Manu:acw:waittime
GPT-10000 Series User Manual Syntax MANU:ACW:FREQuency {50|60} Query Syntax MANU:ACW:FREQuency? 50 Hz Parameter/ 60 Hz Return parameter Example MANU:ACW:FREQ 50 Sets the ACW test frequency to 50Hz. MANU:ACW:WAITtime Query Sets or returns the ACW wait time in seconds. The Description test must first be in ACW mode before this command can be used.
Page 205: Manu:acw:maxhold
REMOTE CONTROL Sets or returns the ACW Ground Mode. The test Description must first be in ACW mode before this command can be used. Syntax MANU:ACW:GROUNDMODE {ON|OFF} Query Syntax MANU:ACW:GROUNDMODE? ACW Ground Mode ON Parameter/ ACW Ground Mode OFF Return parameter Example MANU:ACW:GROUNDMODE OFF Sets the ACW Ground Mode off.
Page 206: Manu:acw:ref
GPT-10000 Series User Manual MANU:ACW:REF Query Sets or returns the ACW reference value in uA or Description mA. The test must first be in ACW mode before this command can be used. The ACW reference value shares the identical limit of HI SET value, which is 42mA at the maximum.
Page 207: Manu:acw:contact
REMOTE CONTROL Example MANU:ACW:INIT 87 Sets the ACW Initial Voltage to 87%. MANU:ACW:CONTACT Query Sets or returns the CONTACT CHK function on or off. Description Syntax MANU:ACW:CONTACT {ON|OFF} Query Syntax MANU:ACW:CONTACT? CONTACT CHK in ACW test ON Parameter/ Return parameter CONTACT CHK in ACW test OFF Example MANU:ACW:CONTACT OFF...
Page 208: Manu:dcw:chiset
GPT-10000 Series User Manual MANU:DCW:CHISet Query Sets or returns the DCW HI SET current value in Description milliamps. The test must first be in DCW mode before this command can be used. Note: An “Err” message will be shown on display if the DCW Voltage X (HI SET value + REF) is >...
Page 209: Manu:dcw:ttime
REMOTE CONTROL LOW SET value: 11.00  error Syntax MANU:DCW:CLOSet<NR2> Query Syntax MANU:DCW:CLOSet? 0.000 ~ 10.99 (mA) [GPT-12XXX] Parameter/ <NR2> 0.000 ~ 20.99 (mA) [GPT-15XXX] Return parameter Example MANU:DCW:CLOS 2.00 Sets the DCW LO SET current to 2mA. MANU:DCW:TTIMe Query Sets or returns the DCW test time in seconds.
Page 210: Manu:dcw:arcfunction
GPT-10000 Series User Manual MANU:DCW:ARCFunction Query Sets or returns the DCW ARC function. The test Description must first be in DCW mode before this command can be used. Note that this command is only workable when ARC SET>HI SET. Syntax...
Page 211: Manu:dcw:waittime
REMOTE CONTROL Syntax MANU:DCW:ARCSpeed {FAST|NORMAL|SLOW} Query Syntax MANU:DCW:ARCSpeed? ARC speed fast Parameter/ FAST ARC speed normal Return parameter NORMAL ARC speed slow SLOW Example MANU:DCW:ARCS SLOW Sets the DCW ARC speed slow. MANU:DCW:WAITtime Query Sets or returns the DCW wait time in seconds. The Description test must first be in DCW mode before this command can be used.
Page 212: Manu:dcw:groundmode
GPT-10000 Series User Manual MANU:DCW:GROUNDMODE Query Sets or returns the DCW Ground Mode. The test Description must first be in DCW mode before this command can be used. Syntax MANU:DCW:GROUNDMODE {ON|OFF} Query Syntax MANU:DCW:GROUNDMODE? DCW Ground Mode ON Parameter/ DCW Ground Mode OFF...
Page 213: Manu:dcw:ref
REMOTE CONTROL Example MANU:DCW:PASS 999.9 Sets the DCW PASS Hold time to 999.9 seconds. MANU:DCW:REF Query Sets or returns the DCW reference value in uA or Description mA. The test must first be in DCW mode before this command can be used. The DCW reference value shares the identical limit of HI SET value, which is 11mA at the maximum.
Page 214: Manu:dcw:contact
GPT-10000 Series User Manual Example MANU:DCW:INIT 87 Sets the DCW Initial Voltage to 87%. MANU:DCW:CONTACT Query Sets or returns the CONTACT CHK function on or off. Description Syntax MANU:DCW:CONTACT {ON|OFF} Query Syntax MANU:DCW:CONTACT? CONTACT CHK in DCW test ON Parameter/...
Page 215: Manu:ir:rloset
REMOTE CONTROL 000.2M ~ 999.9M (Ω) Parameter/ <NR2> 1.000G ~ 9.999G (Ω) Return parameter 10.00G ~ 50.00G (Ω) Sets the HI SET value to OFF. NULL Example MANU:IR:RHIS 10M Sets the IR HI SET resistance to 10 MΩ. MANU:IR:RLOSet Query Sets or returns the IR LO SET resistance value in Description MΩ...
Page 216: Manu:ir:waittime
GPT-10000 Series User Manual MANU:IR:WAITtime Query Sets or returns the IR wait time in seconds. The Description test must first be in IR mode before this command can be used. Syntax MANU:IR:WAITtime <NR2> Query Syntax MANU:IR:WAITtime? 0 ~ 999.9 seconds Parameter/ <NR2>...
Page 217: Manu:ir:maxhold
REMOTE CONTROL Example MANU:IR:GROUNDMODE OFF Sets the IR Ground Mode off. MANU:IR:MAXHold Query Sets or returns the IR MAX Hold. The test must Description first be in IR mode before this command can be used. Syntax MANU:IR:MAXHold {ON|OFF} Query Syntax MANU:IR:MAXHold? IR MAX Hold ON Parameter/...
Page 218: Manu:ir:passhold
GPT-10000 Series User Manual MANU:IR:PASShold Query Sets or returns the duration of IR PASS Hold. The Description test must first be in IR mode before this command can be used. Syntax MANU:IR:PASShold {<NR2>|ON} Query Syntax MANU:IR:PASShold? 0 ~ 999.9 seconds Parameter/ <NR2>...
Page 219: Manu:ir:mode
REMOTE CONTROL MANU:IR:MODE Query Sets or returns the IR Mode in IR. The test must Description first be in IR mode before this command can be used. Syntax MANU:IR:MODE {STOP_ON_FAIL|STOP_ON_PASS|TIMER} Query Syntax MANU:IR:MODE? IR Mode in Stop On FAIL Parameter/ STOP_ON_FAIL STOP_ON_PASS IR Mode in Stop On PASS Return parameter...
Page 220: Manu:gb:current
GPT-10000 Series User Manual MANU:GB:CURRent Query Sets or returns the GB current in A. The test must Description first be in GB mode before this command can be used. Syntax MANU:GB:CURRent <NR2> Query Syntax MANU:GB:CURRent? 3.00~33.00 Parameter/ <NR2> Return parameter Example MANU:GB:CURR 3.00...
Page 221: Manu:gb:rloset
REMOTE CONTROL MANU:GB:RLOSet Query Sets or returns the GB LOW SET resistance value Description in mΩ. The LOW SET value must be less than the HI SET value. The test must first be in GB mode before this command can be used. Syntax MANU:GB:RLOSet<NR2>...
Page 222: Manu:gb:contact
GPT-10000 Series User Manual 60 Hz Return parameter 60 Example MANU:GB:FREQ 50 Sets the GB test frequency to 50Hz. MANU:GB:CONTact Query Sets or returns the GB Contact Time in seconds. Description The test must first be in GB mode before this command can be used.
Page 223: Manu:gb:passhold
REMOTE CONTROL Syntax MANU:GB:MAXHold {ON|OFF} Query Syntax MANU:GB:MAXHold? GB MAX Hold ON Parameter/ GB MAX Hold OFF Return parameter Example MANU:GB:MAXH OFF Sets the GB MAX Hold off. MANU:GB:PASShold Query Sets or returns the duration of GB PASS Hold. The Description test must first be in GB mode before this command can be used.
Page 224: Manu:gb:zerocheck
GPT-10000 Series User Manual Example MANU:GB:REF 100 Sets the GB reference to 100 mΩ. MANU:GB:ZEROCHECK Query Performs the zero check function. The test must Description first be in GB mode and in the Ready Status before this command can be used.
Page 225: Manu:continuity:rloset
REMOTE CONTROL MANU:CONTinuity:RLOSet Query Sets or returns the CONT LOW SET resistance Description value in Ω. The LOW SET value must be less than the HI SET value. The test must first be in CONT mode before this command can be used. The LOW SET range must use the HI SET range.
Page 226: Manu:continuity:passhold
GPT-10000 Series User Manual MANU:CONTinuity:PASShold Query Sets or returns the duration of CONT PASS Hold. Description The test must first be in CONT mode before this command can be used. Syntax MANU:CONTinuity:PASShold {<NR2>|ON} Query Syntax MANU:CONTinuity:PASShold? 0 ~ 999.9 seconds Parameter/ <NR2>...
Page 227: Manu:continuity:zerocheck
REMOTE CONTROL MANU:CONTinuity:ZEROCHECK Query Performs the zero check function. The test must Description first be in CONT mode and in the Ready Status before this command can be used. See page 70 for details on the ZERO function. Syntax MANU:CONTinuity:ZEROCHECK {ON|OFF} Query Syntax MANU:CONTinuity:ZEROCHECK? Zero function is active.
Page 228: Auto Commands
GPT-10000 Series User Manual Auto Commands AUTO:STEP .................... 228 AUTO:NAME ..................229 AUTO:EDIT:ADD .................. 230 AUTO<x>:EDIT:HOLD ................. 231 AUTO<x>:EDIT:SKIP ................231 AUTO:EDIT:DEL ................... 232 AUTO:TEST:RETURN ................232 AUTO:EDIT:SHOW ................233 AUTO:STEP Query Sets or queries the AUTO number (automatic test Description number).
Page 229: Auto:name
REMOTE CONTROL AUTO:NAME Query Sets or returns the AUTO name for the selected Description automatic test. The test must be in AUTO mode before this command can be used. Note only alphanumeric characters (A-Z, a-z, 0-9) and the “_” underscore character can be used to set the AUTO test name.
Page 230: Auto:edit:add
GPT-10000 Series User Manual AUTO:EDIT:ADD Query Add the selected MANU test to the current AUTO Description number. Syntax AUTO:EDIT:ADD {<NR1>|CON} 1~100 Parameter/ <NR1> Continuous step Example AUTO:EDIT:ADD 7 Adds MANU STEP 007 to the current AUTO number. An “Err” message will be shown on display when 10...
Page 231: Auto:Edit:hold
REMOTE CONTROL AUTO<x>:EDIT:HOLD Query Sets or returns the actions for STEP HOLD of each Description MANU STEP in AUTO test. Syntax AUTO<x>:EDIT:HOLD {PH_FH|PH_FS|PH_FC |PC_FH|PC_FS|PC_FC} Query Syntax AUTO<x>:EDIT:HOLD? MAMU step 1 ~ 10 Parameter/ <x> Return parameter Sets Pass Hold & Fail Hold action PH_FH Sets Pass Hold &...
Page 232: Auto:edit:del
GPT-10000 Series User Manual AUTO:EDIT:DEL Query Deletes the designated MANU STEP within the Description current AUTO test. Syntax AUTO:EDIT:DEL {<NR1>|ALL} <NR1> Deletes selected MANU STEP from 1 – 10 Parameter Deletes all the MANU STEPs Example AUTO:EDIT:DEL 3 Deletes the MANU STEP 3 from the current AUTO test.
Page 233: Auto:edit:show
REMOTE CONTROL AUTO:EDIT:SHOW Query Returns all the information of the current AUTO Description test page. Query Syntax AUTO:EDIT:SHOW? The returned strings will be shown in the Return parameter String way almost identical to the contents displayed on an AUTO test page. Example AUTO:EDIT:SHOW? >AUTO-001 AUTO_NAME...
Page 234: Sweep Commands
GPT-10000 Series User Manual Sweep Commands SWEEP:DATA:STATus ................. 234 SWEEP:DATA:SHOW ................234 SWEEP:GRAPh:SHOW ................. 235 SWEEP:DATA:STATus Query Returns the basic status of get data. Description Query Syntax SWEEP:DATA:STA? The returned string will be in the format Return parameter <String> below:...
Page 235: Sweep:graph:show
REMOTE CONTROL SWEEP:GRAPh:SHOW Query Displays or turns off Sweep graph on LCD screen. Description Also Returns if Sweep graph is shown on LCD. Syntax SWEEP:GRAPh:SHOW {ON|OFF} Query Syntax SWEEP:GRAPh:SHOW? To enable Sweep graph on LCD Parameter/ Return parameter To disable Sweep graph on LCD Returns if Sweep graph is shown on LCD Example SWEEP:GRAP:SHOW?
Page 236: Common Commands
GPT-10000 Series User Manual Common Commands *CLS......................236 *IDN ......................236 *SRE ......................237 *CLS The *CLS command clears the internal registers Description and error message, if any. Syntax *CLS *IDN Query Queries the model number, serial number, and Description firmware version of the tester.
Page 237: Sre
REMOTE CONTROL *SRE Query AUTO MODE only. Use this command to get Description measurement step number at the current point in time during AUTO MODE testing. Query Syntax *SRE? 00~50 Return parameter <NR1> Example *SRE? >5 The current test step is number 5. This indicates that steps 1~4 have already been completed and the results for those steps can now be retrieved.
Page 238: Error Messages
GPT-10000 Series User Manual Error Messages The possible error messages returned from Background SYST:ERR? query are well listed below. Error Error Code No Error Command Error Value Setting Error String Setting Error Query Error MODE Error TIME Error DC Over 50W (GPT-12XXX) DC Over 100W (GPT-15XXX) GBV >...
Page 239: Faq
• The tester will not turn on. • The panel keys are not working. • The measured value of IR, GB or Continuity test does not match the specification. • When I press the START button the tester will not start testing? The tester will not turn on? Ensure the power cord is connected.
Page 240 GPT-10000 Series User Manual tester to match the specification. After warm-up, please proceed to Zero Check procedure. Refer to page 70 for details. The measured value of Continuity test does not match the specification? Make sure the tester is powered on for warm-up of at least 30 minutes, within +15°C~+35°C.
Page 241 When I press the START button the tester will not start testing? The tester must first be in the READY status before a test can be started. Ensure the tester displays READY before pressing the START button, page 80 (manual test), 107 (automatic test). If Double Action is enabled, the START button must be pressed within 0.5 seconds after the STOP button is pressed, otherwise the tester will not start testing.
Page 242: Appendix
GPT-10000 Series User Manual PPENDIX Fuse Replacement 1. Turn the instrument Steps off. 2. Remove the power cord. 3. Remove the fuse socket using a flat screwdriver. 4. Replace the fuse in the fuse holder. T 4A, 250V Fuse Rating...
Page 243: Tester Errors
APPENDIX Tester Errors The following test error messages highlighted in red may appear on the GPT-10000 display when completing a running test. Test Error Description HI FAIL Test result is beyond the HI SET value LOW FAIL Test result is below the LOW SET value V OVER Measured voltage is beyond the set value by 1.1 times V LOW...
Page 244 GPT-10000 Series User Manual HISET >= ARC Set value of HI SET is greater than or equal to ARC SET value LOW SET ERROR Setting error in LOW SET TEST TIME ERROR Setting error in TEST TIME RAMP TIME ERROR...
Page 245 APPENDIX TEST TIME<0.5s TEST TIME<0.5s is displayed when test time, under IR test mode with Ground mode ON, is below 0.5 second. CONTACT ERROR Setting error in CONTACT of ACW, DCW or IR.
Page 246: Factory Default Parameters
GPT-10000 Series User Manual Factory Default Parameters DISPLAY SET Brightness Language ENGLISH BUZZER Volume Key Sound INTERFACE Interface RS-232 Baud Rate 9600 CONTROL Control By Front Panel SIGNAL IO --> OUT1:READY OUT2:TEST OUT3:PASS OUT4:FAIL OUT5:FAIL_H Double Action Key Lock Interlock...
Page 247 APPENDIX STATISTICS TOTAL AMOUNT = PASS AMOUNT = FAIL AMOUNT = ACW PASS DATA ACW FAIL DATA DCW PASS DATA DCW FAIL DATA IR PASS DATA IR FAIL DATA GB PASS DATA GB FAIL DATA CONT PASS DATA CONT FAIL DATA USB DISK USB Disk Auto Data Save File Name...
Page 248: Gpt-10000 Specifications
GPT-10000 Series User Manual GPT-10000 Specifications The specifications apply when the GPT-10000 is powered on for at least 30 minutes at 15˚C~35˚C. Specifications General DISPLAY 7” color LCD MEMORY AUTO/MANU mode 100 memory blocks total POWER SOURCE AC 100V~240V ± 10%, 50Hz/60Hz...
Page 249 APPENDIX Environment Range Temperature Humidity ≤70% (No Warranty 15˚C ~ 35˚C condensation) ≤70% (No Operation 0˚C ~ 40˚C condensation) ≤85% (No Storage -10˚C ~ 70˚C condensation) Installation Location Indoors at an amplitude of up to 2000m.
Page 250 GPT-10000 Series User Manual AC Withstanding Voltage Output Voltage Range 0.050kV~ 5.000kV Output Voltage Resolution  (1% of setting +5V) with no load Output Voltage Accuracy Maximum Rated Load(Table1) GPT-15XXX 500VA (5kV/100mA) GPT-12XXX 200VA (5kV/40mA) Maximum Rated Current GPT-15XXX 100mA 0.001mA~10mA(0.05kVV0.5kV)
Page 251 APPENDIX DC Withstanding Voltage Output Voltage Range 0.050kV~ 6.000kV¹ Output Voltage Resolution Output Voltage Accuracy ±(1% of setting +5V) With no load Maximum Rated Load GPT-15XXX 100W(5kV/20mA) GPT-12XXX 50W(5kV/10mA) Maximum Rated Current GPT-15XXX 20mA 0.001mA~2mA(0.05kVV0.5kV) 0.001mA~20mA(0.5kVV6kV) GPT-12XXX 10mA 0.001mA~2mA(0.05kVV0.5kV) 0.001mA~10mA(0.5kVV6kV) Voltmeter Accuracy ±...
Page 252 GPT-10000 Series User Manual Insulation Resistance Test Output Voltage 50V-1200V Output Voltage Resolution Output Voltage Accuracy ±(1% of setting +5V) with no load Resistance Measurement 0.1MΩ~50GΩ Range Test Voltage Measurement Range Accuracy 0.1MΩ~1MΩ 5% of reading + 3 count 50VV450V 1MΩ~50MΩ...
Page 253 APPENDIX Ground Bond Test Output Current Range 3.00A~32.00A ±(1% of setting+0.2A) when 3A≤I ≤8A Output Current Accuracy ±(1% of setting+0.05A) 8A < I ≤ 32A Output Current Resolution 0.01A Test Voltage Approximately max. 8VAC (open-circuit) Frequency 50Hz/60Hz selectable Ohmmeter Measurement Range 1mΩ...
Page 254 GPT-10000 Series User Manual Interface REMOTE (Remote terminal) SIGNAL IO RS232 USB (Device) Yes (USB 2.0) Rear Output USB (Host) for data output port Yes (USB 2.0) GPIB Yes (Optional) Yes (Optional) Barcode Reader USB port Yes (USB-VCP) Table 1: Output Limitation in Withstanding Voltage Testing...
Page 255 APPENDIX Table 2: GPT-10000 capacitive load table Test Condition Maximum Test Voltage HI-SET RAMP Time Capacitive Load Current ↗ 1.000kV I≧10.00mA T≧1.0S 4.7uF 2.000kV I≧7.00mA T≧1.0S 1.65uF 3.000kV I≧8.00mA T≧1.0S 1.32uF 4.000kV I≧11.00mA T≧1.0S 1.32uF 5.000kV I≧7.00mA T≧1.0S 0.66uF 6.000kV I≧8.00mA T≧1.0S 0.66uF...
Page 256: Gpt-15001/15002/15003 Dimensions
GPT-10000 Series User Manual GPT-15001/15002/15003 Dimensions...
Page 257: Gpt-15004 Dimensions
APPENDIX GPT-15004 Dimensions...
Page 258: Gpt-12001/12002/12003 Dimensions
GPT-10000 Series User Manual GPT-12001/12002/12003 Dimensions...
Page 259: Gpt-12004 Dimensions
APPENDIX GPT-12004 Dimensions...
Page 260: Declaration Of Conformity
GPT-10000 Series User Manual Declaration of Conformity GOOD WILL INSTRUMENT CO., LTD. declare that the below mentioned product Type of Product: Electrical Safety Analyzer Model Number: GPT-12001 / GPT-12002/ GPT-12003 / GPT-12004 satisfies all the technical relations application to the product within the scope of council: Directive: 2014/30/EU;...
Page 261: Declaration Of Conformity
APPENDIX Declaration of Conformity GOOD WILL INSTRUMENT CO., LTD. declare that the below mentioned product Type of Product: Electrical Safety Analyzer Model Number: GPT-15001 / GPT-15002/ GPT-15003 / GPT-15004 satisfies all the technical relations application to the product within the scope of council: Directive: 2014/30/EU;...
Page 262 GPT-10000 Series User Manual NDEX Accessories ......... 12 results ..........84 running a test ....... 79 Automatic test special mode ......89, 91 add test .......... 97 test filename ......... 42 load ..........95 test frequency ....... 53 page view ......99, 101 test function ........
Page 263: Index
INDEX start control129, 143, 147, 150, 151, 153 Workplace precautions ..... 25 USB ..........123 Zeroing ....66, 68, 70, 77, 160 Warning symbol ......5...

This manual is also suitable for:

Gpt-12001 Gpt-12002 Gpt-12003 Gpt-12004 Gpt-15001 Gpt-15002 ... Show all

GW Instek GPT-10000 Series User Manual

Table of Contents

Etting Started

GPT-10000 Series Overview

Front Panel Overview

Rear Panel Overview

Set up

Peration

Menu Tree

Test Lead Connection

Manual Tests

Special MANU Test Mode (000)

Sweep Function

Automatic Tests

Xternal Control

Command List

Function Commands

Manual Commands

Auto Commands

Sweep Commands

Common Commands

Remote Commands

Appendix

Quick Links

Chapters

Need help?

Questions and answers

Related Manuals for GW Instek GPT-10000 Series

Summary of Contents for GW Instek GPT-10000 Series
