OPERATING MANUAL
Technical description. Installation manual. Certificate.
PATENT FOR INVENTION
No.2615712
1. PURPOSE
Electromechanical locks series Promix-SM305 with a hook-shaped locking mechanism
(below called the locks) are intended for locking swing plastic doors and windows which can be
opened remotely by energizing/de-energizing (depending on the version) the lock with DC supply
voltage by means of switches (buttons) or controllers of access monitoring and control systems,
audio and video intercoms, code panels or other devices. The lock can be mounted on both right
and left doors and windows.
2. LABELING

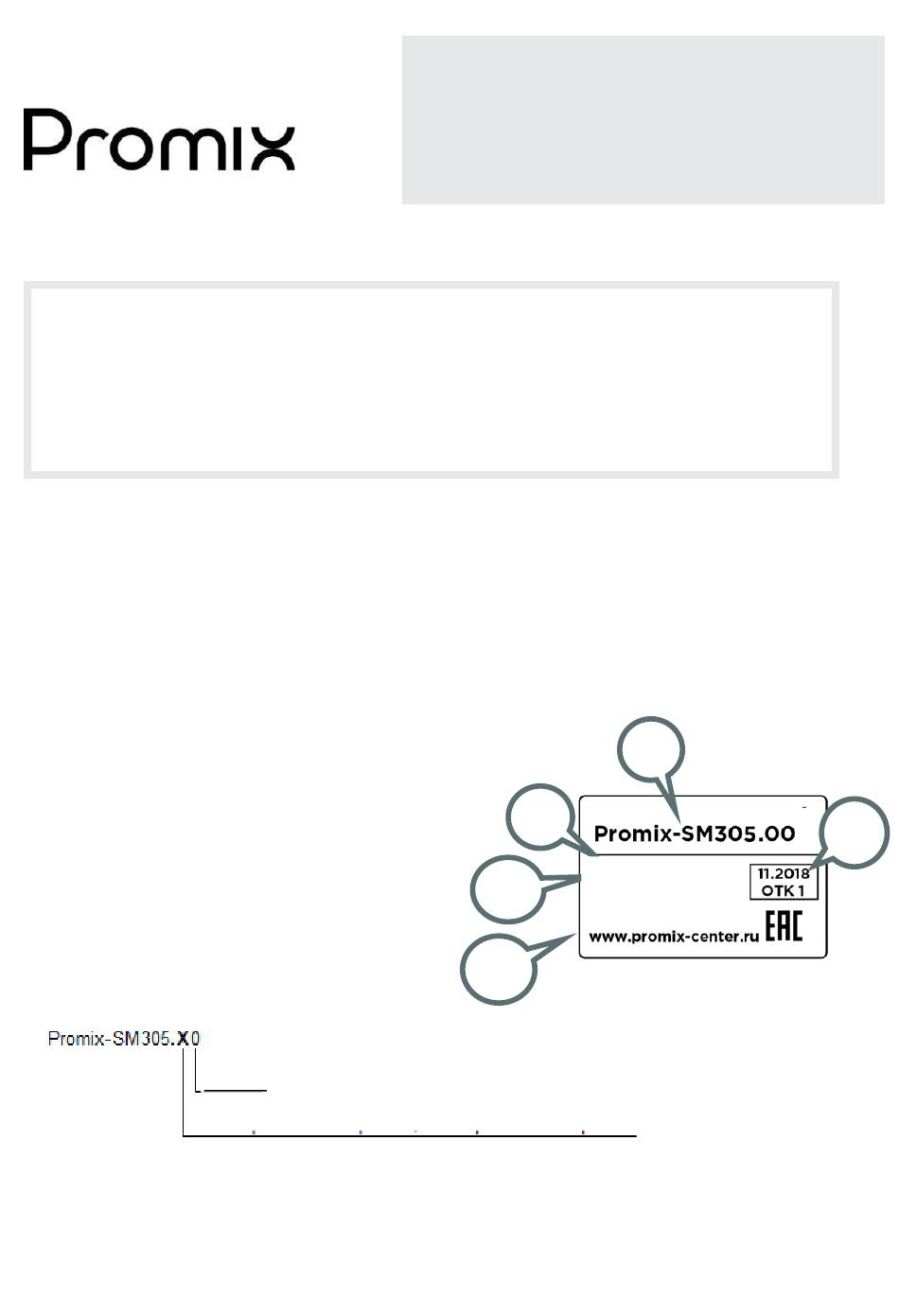

The label stuck to the lock body contains
the following information:
1.
Lock model.
2.
Patent number.
3.
Nominal supply voltage.
4.
Nominal consumed current.
5.
Date of manufacture and QCD mark
6.
Identification number.
Manufacturer's website.
7.
For the list of lock modifications that can be ordered, see 5.2.
The color of the product is shown on the sticker stuck to the box, after the product name. Series
colors: White.
Other colors are provided optionally.
Supply voltage:
0 - 12V.
Version:
0 - normally opened, 1 - normally closed
ELECTROMECHANICAL LOCK
Promix-SM305
2
ELECTROMECHANICAL LOCK
Patent No. 2615712
12 V=0.1 A
3,4
Made in Russia
No. 100 001008
6,7
An example of information
layout on the label.
1
5
1
Advertisement
Table of Contents
Related Manuals for PROMIX SM305
Summary of Contents for PROMIX SM305
- Page 1 No.2615712 1. PURPOSE Electromechanical locks series Promix-SM305 with a hook-shaped locking mechanism (below called the locks) are intended for locking swing plastic doors and windows which can be opened remotely by energizing/de-energizing (depending on the version) the lock with DC supply voltage by means of switches (buttons) or controllers of access monitoring and control systems, audio and video intercoms, code panels or other devices.
-
Page 2: Design And Principle Of Operation
Promix-SM305 3. SET OF DELIVERY 1 – Lock 1 pc. 2 – Latch assembled with plate 1 pc. 3 – Adjustment pad 3 pcs. 4 – Self-tapping screw 3.3х30 4 pcs. 5 – Self-tapping screw 3.5х25 (cup head) (countersunk) 2 pcs. -
Page 3: Technical Data
Promix-SM305 5. TECHNICAL DATA OPERATING CONDITIONS The lock operation environment must be explosion-safe, free of current-conducting dust or gases that cause metal corrosion and destroying insulation of current conductors and electric elements, free of current-carrying dust or water vapor, and preventing ingress of water, steam, fuel and lubricants. -
Page 4: Installation And Connection
Promix-SM305 Lock and latch overall and mounting dimensions. Fig.3 Fig.4 6. INSTALLATION AND CONNECTION 6.1 LOCK AND LATCH MOUNTING 1. Drill a hole for lead-out of the power wire at the place of the lock installation. 2. Lay the power wire through the hole produced inside the shape slot and lead it to outside by drilling the shape. -
Page 5: Latch Adjustment
Application of voltage of reverse polarity does not provide the lock operability but does cause its failure. See operating voltage range in 5.2. Avoid supply of overvoltage. Example of the lock connection to the remote control system Promix-RDS. ~220 V Lock Controller Promix-CR.RX... -
Page 6: Emergency Opening
Promix-SM305 the access restriction regime and other factors (the presence of security providers, video surveillance, etc.). 2) To prevent deformations of the door due to attempts to open the door with the lock closed, it is recommended to mount the lock in the area of the door handle. -
Page 7: Troubleshooting
Promix-SM305 9. Make sure of the lock operability, then mount the base passing the power wire through the slot, and fix the base with screws 1. The lock transfer from the normally closed to normally open version is performed in a similar way. - Page 8 18 months from the day of acceptance by the manufacturer’s QCD. Within the period of warranty, ETC PROMIX LLC undertakes to repair defective products free of charge. Expenses for transporting the product to the place of repair and back will be borne by the Buyer.
