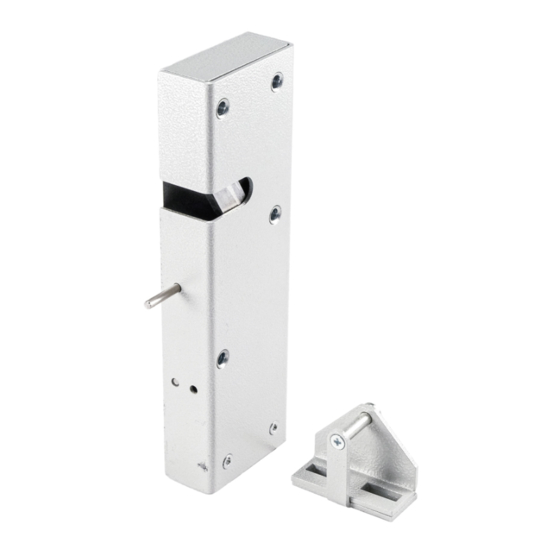

Electromechanical lock
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
March 13, 2020
manufacturing engineering center
OPERATING MANUAL
Technical Description. Installation Manual. Certificate.
PATENT FOR INVENTION
No. 0000000
1. PURPOSE
Promix-SM323 series electromechanical locks with a hook-shaped locking mechanism
(hereinafter referred to as locks) are intended to limit access to cells of luggage lockers
(pickpoints), drawers for documentation storage, lockers and cabins in locker rooms of fitness
clubs, swimming pools, schools, enterprises; the locks can be opened remotely.
2. LABELLING
The label attached to the lock body contains the following
information:
1.
Lock model
2.
Nominal supply voltage
3.
Nominal consumed current
4.
Date of manufacture and QCD mark
5.
Identification number
Manufacturer's website
6.
The color of the product is shown on the label attached to the box, after the product name. Series
colors: Silver, White, Brown, Black. Other colors are provided optionally.
Availability of built-in sensors:
1 – lock state sensor 3 - lock state
sensor and door position sensor
Supply voltage:
0–12 V, 1–24 V
Design:
1 – normally closed
1
ELECTROMECHANICAL LOCK
2, 3
0.1 А
12 V
Made in Russia
No.100 001 008
5, 6
An example of information
layout on the label
4
1

Advertisement

Table of Contents
loading

Related Manuals for PROMIX SM 323

Summary of Contents for PROMIX SM 323

  • Page 1 No. 0000000 1. PURPOSE Promix-SM323 series electromechanical locks with a hook-shaped locking mechanism (hereinafter referred to as locks) are intended to limit access to cells of luggage lockers (pickpoints), drawers for documentation storage, lockers and cabins in locker rooms of fitness clubs, swimming pools, schools, enterprises;...

  • Page 2: Scope Of Delivery

    4. DESIGN AND PRINCIPLE OF OPERATION Promix-SM323 lock is produced in a normally closed design, i.e., it is in the closed state when de-energized and opens when supply voltage is applied.
  • Page 3 Promix-SM323 5.2 TECHNICAL DATA Promix- Promix- Promix- Promix- Modification SM323.10.1 SM323.10.3 SM323.10.1-01 SM323.10.3-01 Right (installed on the right) Left (installed on the left) Design Hinges on the left Hinges on the right DC supply voltage U, V 12±2 Current consumed, А...
  • Page 4 Promix-SM323 2 паза Fig. 2. Promix-AD.DB.21 latch overall and mounting dimensions 4 holes Fig. 3. Promix-SM.323 lock overall and mounting dimensions...

  • Page 5: Installation And Connection

    Promix-SM323 6. INSTALLATION AND CONNECTION 6.1 LOCK AND LATCH MOUNTING 1. Mount the lock on a wall, at a distance of 10mm from the locker wall edge. 2. Connect the lock to the power supply 3. Insert the latch into the lock.

  • Page 6: Maintenance

    Promix-SM323 7. FEATURES OF INSTALLATION AND OPERATION 1) The possibility of using the lock and the place of installation (outdoors or indoors) are determined by the installation organization on the basis of the design features and the lock operating principle, method of installation, room criticality level, the purpose of the access restriction regime and other factors (the presence of security providers, video surveillance, etc.).
  • Page 7 18 months from the day of acceptance by the manufacturer’s QCD. Within the warranty period ETC PROMIX LLC undertakes to repair defective products free of charge. Expenses for transporting the product to the place of repair and back will be borne by the Buyer.
  • Page 8 QCD mark on the body, was manufactured and accepted in compliance with Specifications, obligatory requirements of state standards and valid technical documentation, recognized as fit for operation and packed by ETC PROMIX LLC. Engineering and Production Center PROMIX LLC Russia, 214030, Smolensk, Krasninskoe sh., 35, lit.
