05.04.2019
engineering and production center
OPERATING MANUAL
Technical description. Installation manual. Certificate.
ПШБА.304268.205 РЭ
PATENT FOR INVENTION
No.2420640
1. PURPOSE
Electromechanical locks series Promix-SM213 with a locking mechanism based on a skewed
bar (below called the locks) are intended for locking swing doors, gates and wickets located in the
open air, which can be opened remotely by energizing/de-energizing (depending on the version)
the lock with DC supply voltage by means of switches (buttons) or controllers of access
monitoring and control systems, audio and video intercoms, code panels or other devices. The
lock design and mounting method allow them to be installed on practically any door types.
2. LABELING
The label stuck to the lock body contains the following
information:
1.
Lock model.
2.
Patent number.
3.
Nominal supply voltage.
4.
Nominal consumed current.
5.
Date of manufacture and QCD mark
6.
Identification number.
Manufacturer's website.
7.
For the list of lock modifications that can be ordered, see 5.2.
Supply voltage:
0 - 12V. 1 -24V
Version:
0 - normally opened, 1 - normally closed
ELECTROMECHANICAL LOCK
Promix-SM213
ELECTROMECHANICAL LOCK
2
Patent No. 2420640
12 V=0.1 A
3.4
Made in Russia
No. 100 001008
6.7

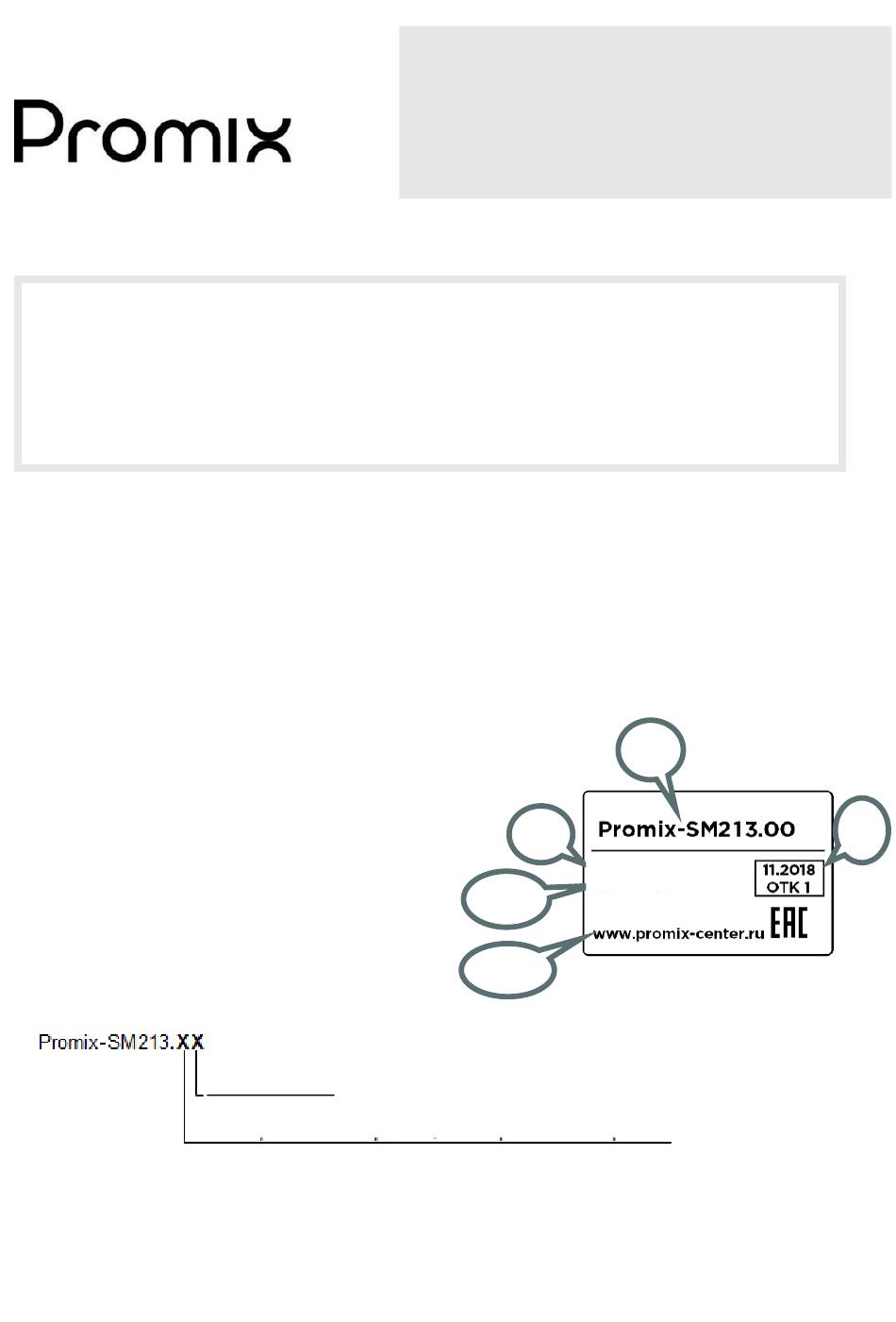

An example of information
layout on the label.
1
5
1
Advertisement
Table of Contents
Related Manuals for PROMIX Promix-SM213
Summary of Contents for PROMIX Promix-SM213
- Page 1 No.2420640 1. PURPOSE Electromechanical locks series Promix-SM213 with a locking mechanism based on a skewed bar (below called the locks) are intended for locking swing doors, gates and wickets located in the open air, which can be opened remotely by energizing/de-energizing (depending on the version) the lock with DC supply voltage by means of switches (buttons) or controllers of access monitoring and control systems, audio and video intercoms, code panels or other devices.
-
Page 2: Design And Principle Of Operation
For opening the door, it is necessary first to de-energize a normally open lock or to supply voltage to a normally closed lock; only after that the door can be opened. The lock Promix-SM213 has a genuine mechanism of the catch “folding” into the lock body during opening the door. - Page 3 Promix-SM213 ambient temperature: from -40 to +50 °С; relative air humidity: not higher than 95% at 35°С or lower temperatures, under conditions of moisture condensation and hoar-frost formation; installation indoors or outdoors under direct impact of atmospheric precipitation and sunlight, without formation of glazed frost.
-
Page 4: Installation And Connection
Promix-SM213 6. INSTALLATION AND CONNECTION 6.1 LOCK MOUNTING The lock design allows mounting it in the door frame or in the door leaf. During mounting, a clearance of 1-8 mm must be provided between the locking plate and the fastening plate of the lock. Meeting this condition guarantees a door holding force of 300 kg and a smooth operation of the door without wedging up. - Page 5 Promix-SM213 Example of the lock installation in the door frame of a wooden door. Door Door Locking plate Example of the lock installation in the leaf of a metal door. Door Door Locking plate...
- Page 6 Promix-SM213 Example of the lock installation in the door frame of a plastic door. Locking plate Example of the lock installation in the leaf of a wooden door. Locking plate For mounting the lock, drill 4 holes 2-2.5 mm in diameter for self-tapping screws and the locking plate, 30-32 mm in diameter for lock mounting.
- Page 7 Application of voltage of reverse polarity does not provide the lock operability but does cause its failure. See operating voltage range in 5.2. Avoid application of a higher voltage or excessive pulse duration. Example of the lock connection to the remote control system Promix-RDS. ~220 V Lock Controller Promix-CR.RX Remote control Promix-CR.TX...
-
Page 8: Troubleshooting
MAINTENANCE The lock Promix-SM213 is lubricated by the manufacturer and does not need additional lubrication or any special maintenance. However, if dust or dirt penetrated inside the lock during service, and the lock began to show malfunction, then dismantle the lock, unstick the protective film carefully from the slot in the body. -
Page 9: Storage And Transportation
18 months from the day of acceptance by the manufacturer’s QCD. Within the period of warranty, ETC PROMIX LLC undertakes to repair defective products free of charge. Expenses for transporting the product to the place of repair and back will be borne by the Buyer. -
Page 10: Acceptance And Packing Certificate
QCD mark on the body, was manufactured and accepted in compliance with Specifications ПШБА.304268.002 ТУ, obligatory requirements of state standards and current technical documentation, recognized as fit for operation and packed by ETC PROMIX LLC. PROMIX Engineering and Technical Center LLC Russia, 214030, Smolensk, Krasninskoye sh., 35, lit.
