23.04.2019
engineering and production center
OPERATING MANUAL
Technical description. Installation manual. Certificate.
ПШБА.304268.104 РЭ
PATENT FOR INVENTION
No.2382861
1. PURPOSE
Electromechanical locks series Promix-SM102 with a ball locking mechanism (below called
the locks) are intended for restriction of access to trade and office furniture, refrigerator cabinets,
chests, various cases and other equipment, which can be opened remotely by energizing/de-
energizing (depending on the version) the lock with DC supply voltage by means of switches
(buttons) or controllers of access monitoring and control systems, audio and video intercoms,
code panels or other devices.
2. LABELING
The label stuck to the lock body contains the following information:
1.
Lock model.
2.
Patent number.
3.
Nominal supply voltage.
4.
Nominal consumed current.
5.
Date of manufacture and QCD mark
6.
Identification number.
Manufacturer's website.
7.
For the list of lock modifications that can be ordered, see 5.2.
The color of the product is shown on the sticker stuck to the box, after the product name. Series
colors: Silver, White, Brown, Black, Gold
Other colors are provided optionally.
Availability of built-in sensors:
0(Absence) - no sensors. 1 - door and lock sensors
Supply voltage:
0 - 12V. 1 -24V
Version:
0 - normally opened, 1 - normally closed
ELECTROMECHANICAL LOCK
Promix-SM102
ELECTROMECHANICAL LOCK
Patent No. 2382861
12 V=0.1 A
Made in Russia
No. 100 001008

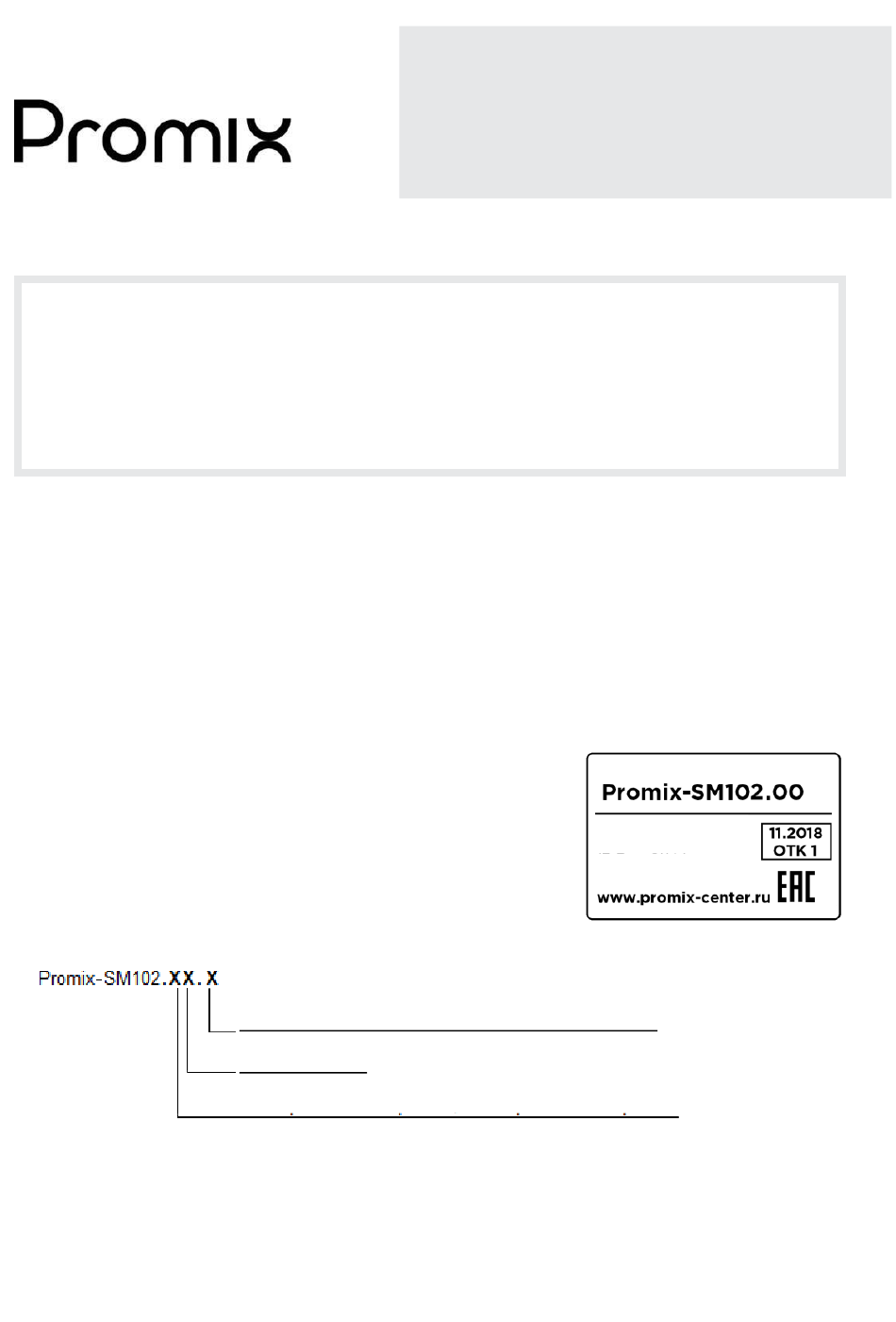

An example of information
layout on the label.
1
Advertisement
Table of Contents
Related Manuals for PROMIX Promix-SM102 Series
Summary of Contents for PROMIX Promix-SM102 Series
- Page 1 No.2382861 1. PURPOSE Electromechanical locks series Promix-SM102 with a ball locking mechanism (below called the locks) are intended for restriction of access to trade and office furniture, refrigerator cabinets, chests, various cases and other equipment, which can be opened remotely by energizing/de-...
-
Page 2: Design And Principle Of Operation
Promix-SM102 3. SET OF DELIVERY 1 – Lock 1 pc. 2 – Lock fastening plate 1 pc. 3 – Latch, assembled, on the adjustment plate 1 pc. 4 – Angular bracket for latch fastening 1 pc. 5 – Self-tapping screw 3.5х15 (cup head) 6 pcs. - Page 3 Promix-SM102 condensation and hoar-frost formation; installation indoors or outdoors excluding ingress of moisture, dust, dirt, etc. inside the lock. TECHNICAL DATA Promix- Promix- Promix- Promix- Modification SM102.00 SM102.00.1 SM102.01.1 SM102.01 Version normally opened DC supply voltage U, V 12±2 24±2...
-
Page 4: Installation And Connection
Promix-SM102 Lock and latch overall and mounting dimensions. For NO For NС For NO For NС Sensor fastening place 6. INSTALLATION AND CONNECTION 6.1 LOCK MOUNTING The lock design assumes different versions of mounting the adjustment plate on the lock body. - Page 5 Promix-SM102 Latch bar Latch nut Spring Washer Bracket Support The latch is delivered in an assembled condition 1, and is suitable for mounting on swing doors and drawers. For sliding doors of the rolling door cabinet type, it is advisable to use the position 2.
- Page 6 Promix-SM102 Example of the lock mounting on a swing door. Example of the lock mounting on a sliding door (rolling door cabinet).
- Page 7 Promix-SM102 Lock mounting on a swing (sliding) door. For NO For NC 1. Mount the lock on an immobile surface. 2. The distance from the inner surface of the closed door to the lock body must be 7.5-8.5mm for a NO lock or 11-12mm for a NC lock, which guarantees the necessary free movement (play) of the door with the lock closed.
- Page 8 See operating voltage range in 5.2. Avoid supply of overvoltage. Connect sensor leads: Colored wires (yellow, green, etc.) – door position sensor output. Example of the lock connection to the remote control system Promix-RDS. 220 V Lock Controller Promix-CR.RX Remote control Promix-CR.TX...
- Page 9 Promix-SM102 Provide a reliable electric contact. To prevent short-circuit, insulate places of connection. 7. SPECIAL ASPECTS OF INSTALLATION AND OPERATION 1) The possibility of using of the locks for restriction of access to the premises and the place of installation (outdoors or indoors) are determined by the installation organization on the...
-
Page 10: Troubleshooting
Promix-SM102 TROUBLE-SHOOTING Troubles and problems Remedies Using a tester, check integrity of the lock power circuit. Close the door, case, etc. tightly and press on it at the latch fastening place, and apply voltage to the lock. If the lock does not open, apply an elevated... -
Page 11: Maintenance
18 months from the day of acceptance by the manufacturer’s QCD. Within the period of warranty, ETC PROMIX LLC undertakes to repair defective products free of charge. Expenses for transporting the product to the place of repair and back will be borne by the Buyer. -
Page 12: Acceptance And Packing Certificate
QCD mark on the body, was manufactured and accepted in compliance with Specifications ПШБА.304268.001 ТУ, obligatory requirements of state standards and current technical documentation, recognized as fit for operation and packed by ETC PROMIX LLC. PROMIX Engineering and Technical Center LLC Russia, 214030, Smolensk, Krasninskoye sh., 35, lit.
