manufacturing engineering center
OPERATING MANUAL
Technical Description. Installation Manual. Certificate.
1. PURPOSE

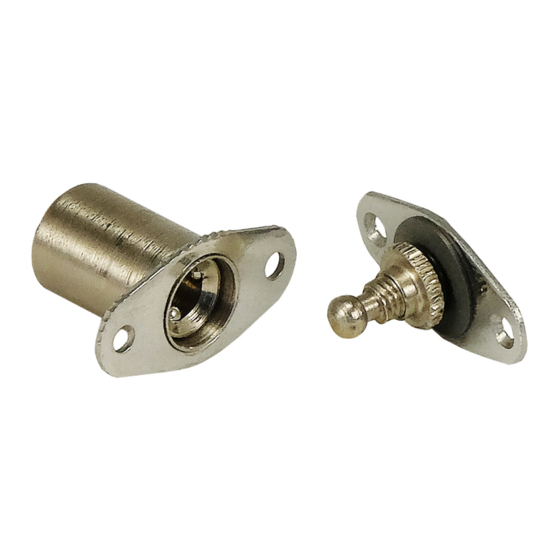

Promix-SM132 series electromechanical mortise locks with a ball locking mechanism
(hereinafter referred to as the locks) are intended for locking retail space and office furniture
which can be opened remotely by supplying DC power voltage by means of switches (buttons) or
controllers of access monitoring and control systems, audio and video intercoms, code panels or
other devices.
2. LABELING
The label attached to the lock body contains the following information:
1.
Lock model
2.
Nominal supply voltage
3.
Nominal consumed current
4.
Date of manufacture and QCD mark
5.
Identification number
Manufacturer's website
6.
Promix-SM132.10
0–12V
Design:
1 – normally closed
3. SCOPE OF DELIVERY
1 – Promix-SM132 lock
2 – Promix-AD.DB.26 latch
3 – Self-tapping screw 2.5х16
(countersunk)
Check scope of delivery of the product when buying! After buying, the
manufacturer will not accept claims related to incomplete scope of delivery.
Supply voltage:
1 pc.
1 pc.
4 pcs.
1
ELECTROMECHANICAL LOCK
2, 3
5, 6

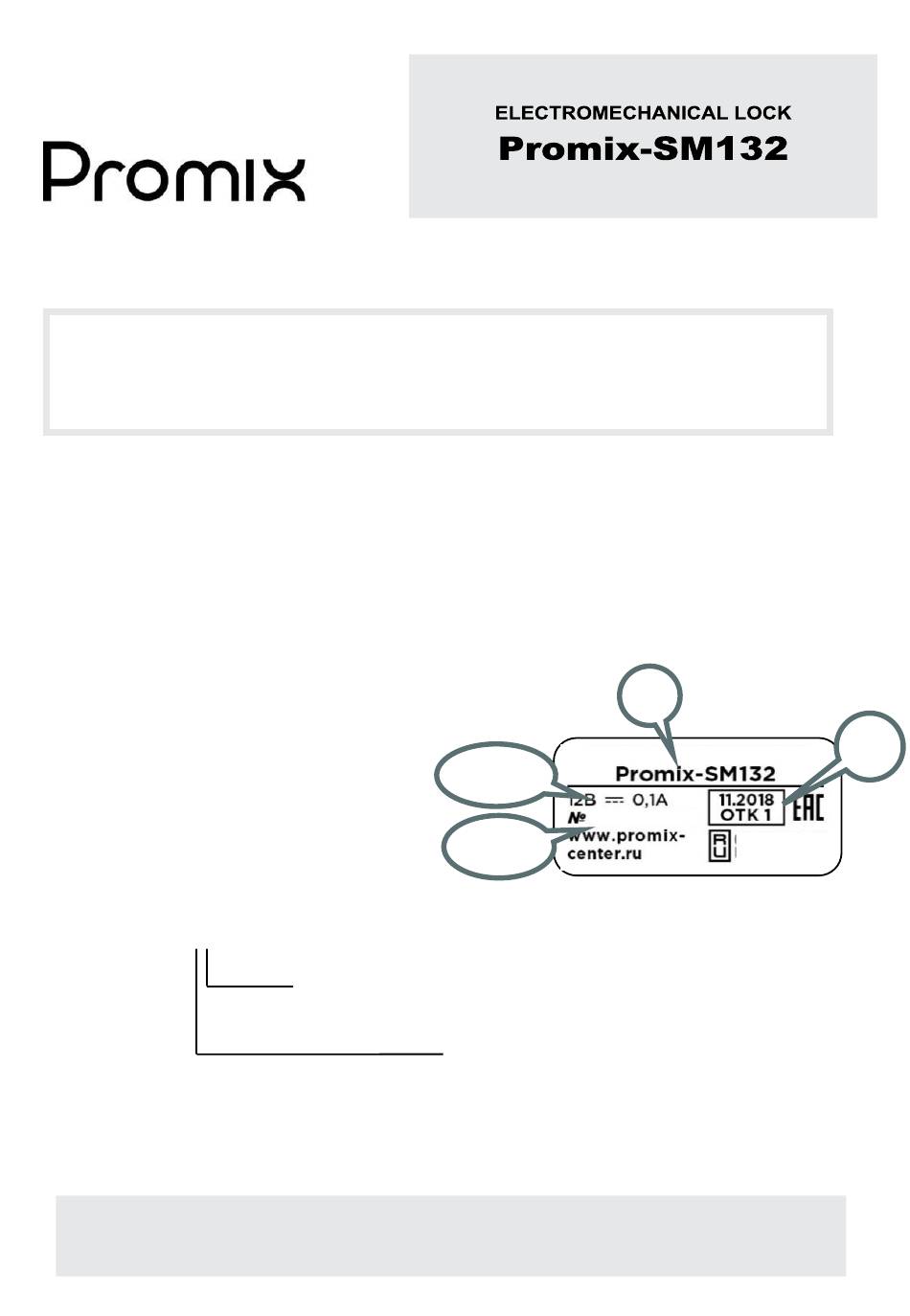

An example of information
layout on the label
4
MADE IN
RUSSIA
1
