- Page 1 QUICK START GUIDE S12ZVM 3-PHASE MOTOR CONTROL EVALUATION BOARD MCSXSR1CS12ZVM...

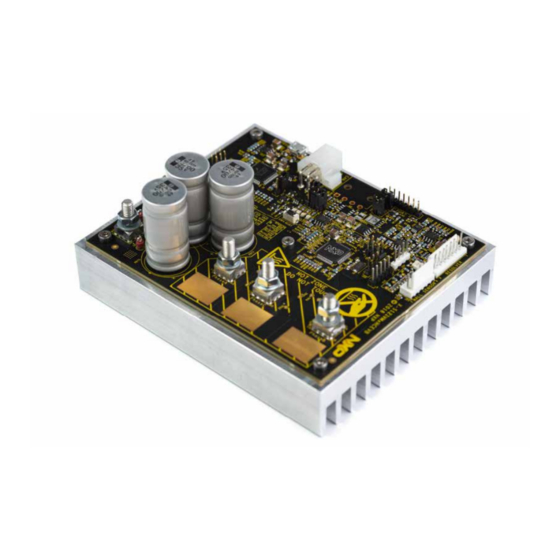

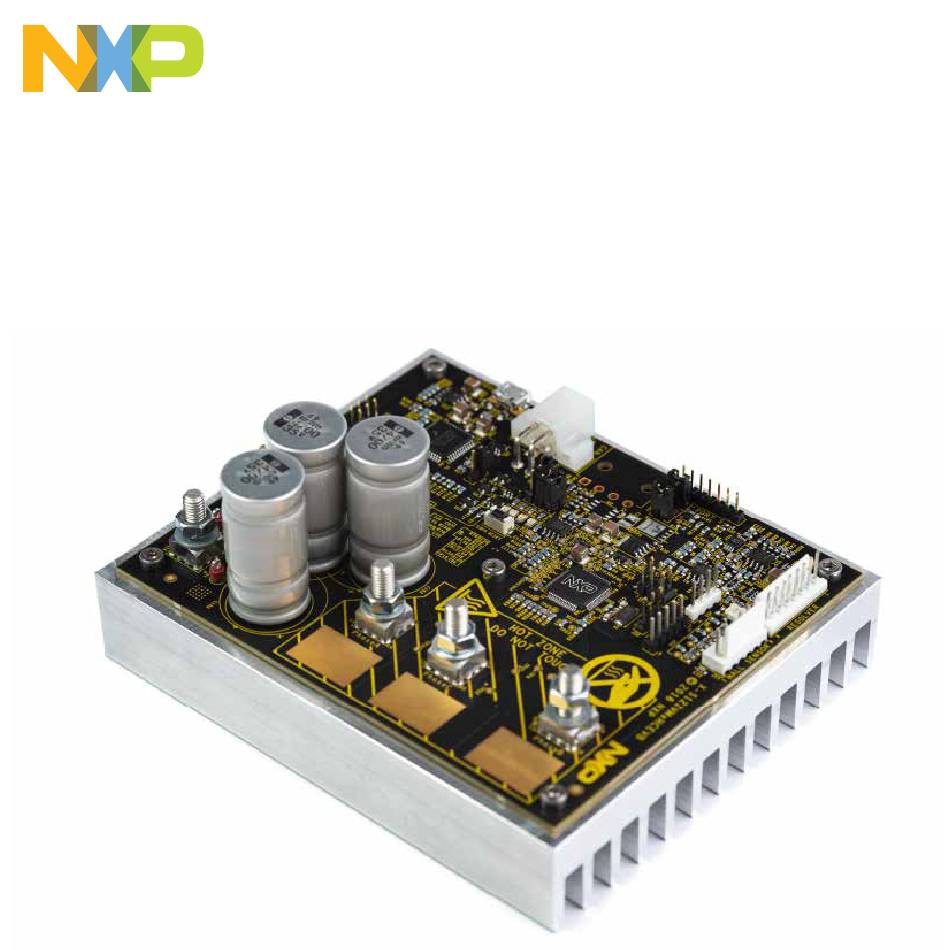

- Page 2 S12ZVM 3-PHASE MOTOR CONTROL EVALUATION BOARD Figure 1: S12ZVM 3-phase motor control evaluation board...
- Page 3 QUICK START GUIDE MCSXSR1CS12ZVM GET TO KNOW THE MCSXSR1CS12ZVM Resolver Sensor Resolver Sensor HALL Sensor HALL Sensor Connector J62 Connector J62 Connector J11 Connector J11 Port PP (J21), PT Port PP (J21), PT (J21) and PE (J22) (J21) and PE (J22)
- Page 4 HEADER/PINOUT MCSXSR1CS12ZVM is designed to control 3-phase AC motors up to 1 kW. Several configuration jumpers have to be set prior to the application FUNCTION S12ZVM PIN FUNCTION S12ZVM PIN VBAT BKGD BKGD J34-1 J34-2 J34-3 EVDD J11-1 U_RESET J34-4...
- Page 5 QUICK START GUIDE MCSXSR1CS12ZVM MCSXSR1CS12ZVM FEATURES HARDWARE SOFTWARE • MCSXSR1CS12ZVM —S12ZVM • Automotive Motor Control Algorithm Evaluation board for high power/high – Sensorless control of the 3-phase performance 3-phase motor control PMSM motor based on Field • Single PCB hardware design up to...
- Page 6 MCUs 11.x IDE Connect the USB Cable Download and install CodeWarrior for MCUs IDE version 11.0 or higher available Connect MCSXSR1CS12ZVM to the PC at nxp.com/codewarrior. using the USB cable. Allow the PC to automatically configure the USB drivers if Install needed.
- Page 7 QUICK START GUIDE MCSXSR1CS12ZVM STEP-BY-STEP INSTRUCTIONS CONTINUED Re-program the MCU using FreeMASTER 3.0 CodeWarrior for MCUs Setup Import the installed application software • Start the FreeMASTER application project in the CodeWarrior for MCUs: • Open FreeMASTER project <selected project> FreeMASTER_control\ •...
-
Page 8: Application Control
APPLICATION CONTROL Motor Control Application Tuning Start the application by pressing ON/ OFF button on the FreeMASTER (MCAT) tool – tool menu to display the application control page. When MCAT control page. the power supply is connected to the Set required speed by changing board, the application is in READY the Speed Required variable value state indicated by a blue LED on the... - Page 9 QUICK START GUIDE MCSXSR1CS12ZVM MCSXSR1CS12ZVM JUMPER OPTIONS JUMPER OPTION SETTING DESCRIPTION Open CAN VREG disabled (default) CAN VREG Short CAN VREG enabled (S12ZVMC version has to be populated) Open OSBDM Bootloader update disabled (default) OSBDM Bootloader Short OSBDM Bootloader update enable...
-
Page 10: Get Started
GET STARTED Download installation software and documentation at nxp.com/MCSXSR1CS12ZVM. SUPPORT Visit www.nxp.com/support for a list of support resources. WARRANTY Visit www.nxp.com/warranty for complete warranty information. www.nxp.com/MCSXSR1CS12ZVM NXP and the NXP logo are trademarks of NXP B.V. All other product or service names are the property of their respective owners.
