  • Page 1 Quick Start Guide MCIMX93-EVKPF09 i.MX 93 applications processor i.MX 93 EVKPF09 applications processor QSG...
  • Page 2 About the i.MX 93 EVKPF09 The i.MX 93 applications processor is the latest member of the i.MX 9 family. It excels in machine learning, vision, advanced multimedia and industrial IoT applications. Elevating edge intelligence, i.MX 93 processors are the solid foundation for products built for smart homes, smart cities, and industrial applications.
  • Page 3 Features SOM Module • Four channels for ADC • 6-axis IMU w/ I3C support • i.MX 93 applications processor with: • I2C Expansion connector – 2x Arm® Cortex®-A55 • Two 1 Gbps Ethernet – 1× Arm® Cortex®-M33 – Port1 supports TSN –...
  • Page 4 Get to know the i.MX 93 EVKPF09 LVDS / Back LVDS / Back MIPI DSI MIPI DSI Light Light MIPI CSI MIPI CSI C EXP C EXP M.2 slot M.2 slot <BOT side> <BOT side> PDM MIC PDM MIC GPIO EXPI...

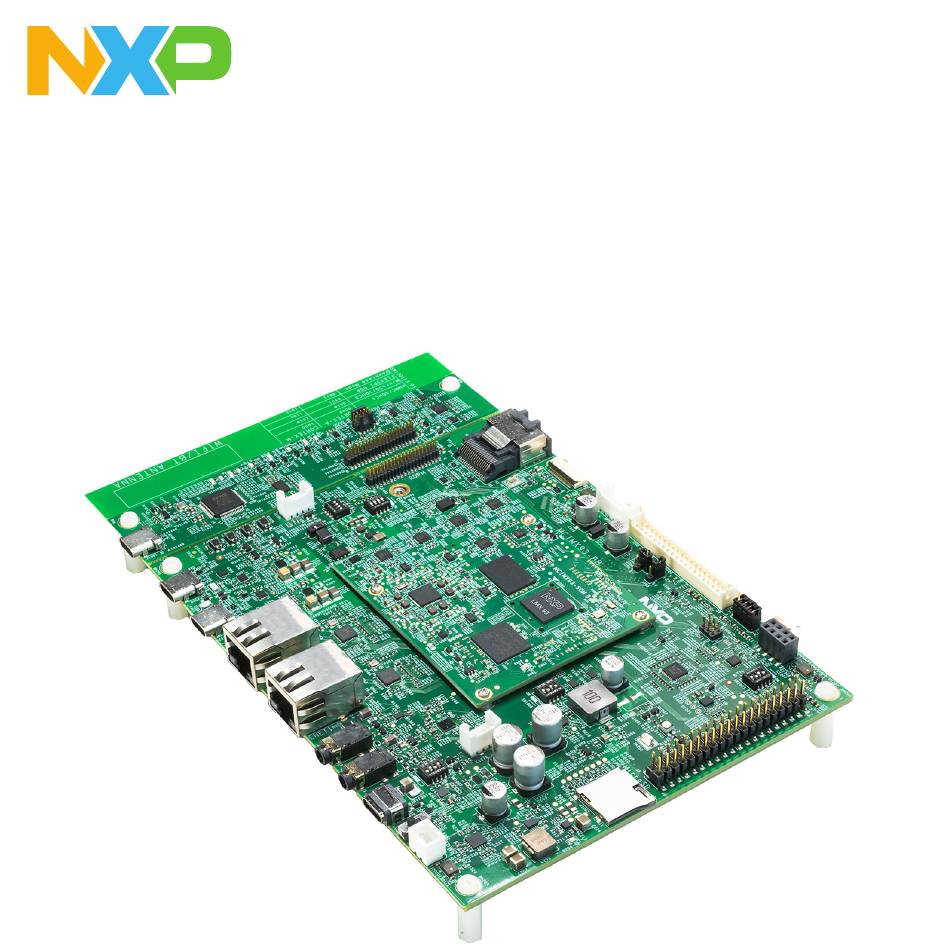

  • Page 5 Quick Start Guide MCIMX93-EVKPF09 Get to know the i.MX 93 EVKPF09 Continued M.2 slot (E-KEY) M.2 slot (E-KEY) Figure 2: Back view i.MX 93 11x11 EVKPF09 board...
  • Page 6: Getting Started

    Getting started Unpack the Kit The MCIMX93-EVKPF09 is shipped with the items listed in Table 1. Table 1 — Kit Contents Item Description MCIMX93-EVKPF09 i.MX 93 11X11 EVKPF09 board Power Supply USB C PD 45W, 5V/3A; 9V/3A; 15V/3A; 20V/2.25A supported USB Type-C Cable USB 2.0 C Male to USB 2.0 A Male Software...
  • Page 7 Table 3 — Software and Tools Item Description Schematics, layout and Gerber files Quick Start Guide Documentation Hardware Design Guide i.MX 93 EVKPF09 Board User Manual Power Consumption Measurement Software Development Linux BSPs Copy of the latest Linux images that are available to program ®...
  • Page 8: Setting Up The System

    Setting up the system The following will describe how to run the pre-loaded Linux image on the MCIMX93- EVKPF09 (i.MX 93). right COM port number and apply the Confirm Boot following configuration. Switches • Baud rate: 115200bps The boot switches should be set to boot •...
  • Page 9 Quick Start Guide MCIMX93-EVKPF09 Setting up the system Continued Board Connect Boot Up Power Supply As the board boots up, you will see Connect the USB C PD power supply to 4 penguins appear in the upper left- J301, then power up the board by SW301 hand corner of the monitor, and then switch.
  • Page 10: Additional Information

    Additional information Boot Switches SW1301[1-4] is the boot configuration switch, the default boot device is eMMC/ uSDHC1, as shown in Table 4. If you want to try other boot devices, you need to change the boot switches to corresponding values as listed in Table 4. Note: 1 = ON 0 = OFF...
  • Page 11 Quick Start Guide MCIMX93-EVKPF09 Table 4 — boot device settings Boot mode Boot core SW1301-4 SW1301-3 SW1301-2 SW1301-1 From internal fuses Cortex-A55 Serial downloader Cortex-A55 USDHC1 8-bit eMMC 5.1 Cortex-A55 USDHC2 4-bit SD3.0 Cortex-A55 FlexSPI serial NOR Cortex-A55 FlexSPI serial NAND Cortex-A55 2K page Infinite loop...
  • Page 12 Additional information Do more with Accessory Boards LVDS LCD: DY1212W-4856 IMX-MIPI-HDMI 12.1” (WXGA) TFT LCD (BOE EV121WXM-N10-1850) MIPI DSI output to HDMI adapter board 1280*800 RGB with Capacitive Touch Panel (CTP) Audio Board: MX93AUD-HAT WiFi/BT M.2 Module (LBES5PL2EL) Audio expansion board with Wi-Fi 6, IEEE 802.11a/b/g/n/ac + Bluetooth most of audio features 5.2 BR/EDR/LE, NXP IW612 chipset...
  • Page 13 Quick Start Guide MCIMX93-EVKPF09 Additional information Continued RPi-CAM-MIPI IAS camera to 22 Pin / 0.5mm pitch FPC camera adapter (AR0144 sensor)
  • Page 14: Warranty

    This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
