Additional GNDs
EasyAVR PRO v8 development board contains two exposed GND pins just
above the SiBRAIN card, which can be used to connect measurement or
testing equipment. These additional GND pins allow secure connection with
the instrumentation probes, avoiding loose cables or unreliable contacts that
might compromise the accuracy of the readings.
1
2

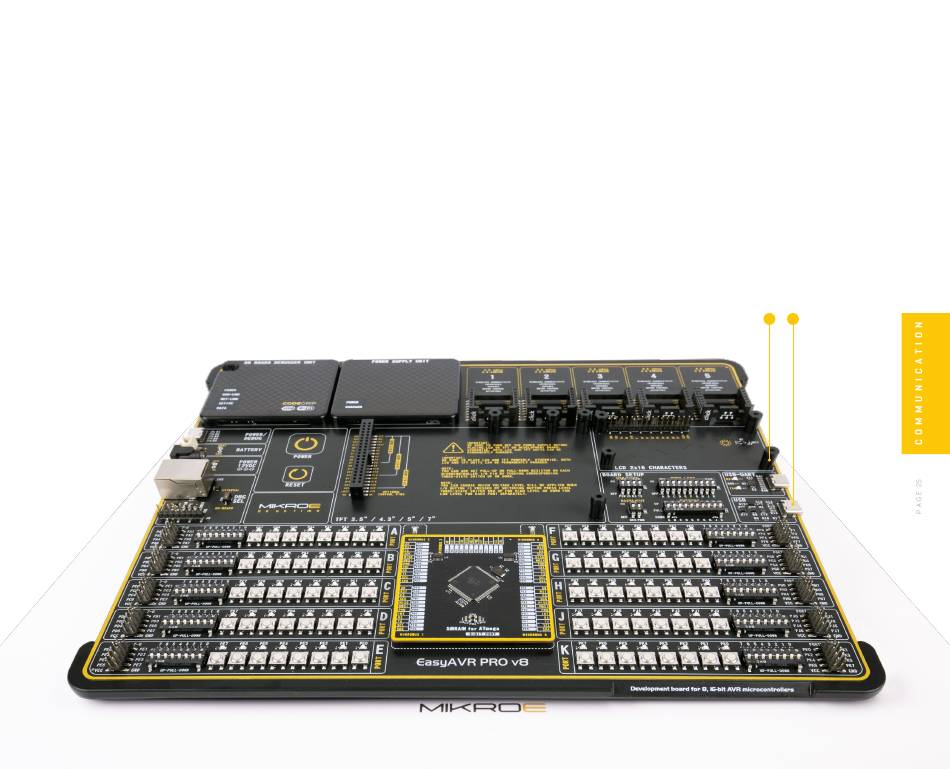

Figure 13: EasyAVR PRO v8 development board
E a s y A V R P R O v 8 M a n u a l
