mikroBUS
sockets
The superior connectivity features of the EasyAVR PRO v8 development
board are rounded up with five standardized mikroBUS
is a considerable upgrade for the board, as it allows interfacing with the vast
amount of Click boards .
™
mikroBUS ™ is the add-on board standard that offers maximum expandability
with the smallest number of pins.
More information at www.mikroe.com/mikrobus

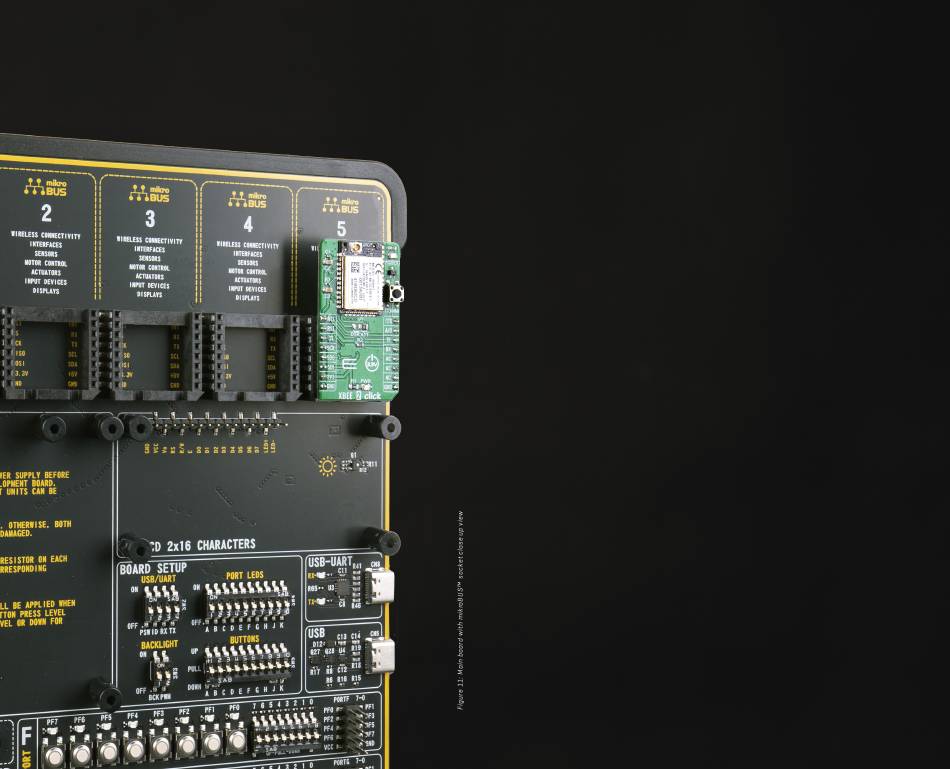

All the mikroBUS sockets are now redesigned and improved. They became
™
much sturdier, allowing a better grip of the Click board
horizontal supports between two 8-pin connectors, the right lower edge
is chamfered at the angle of 45°, the same as the Click board
seamlessly fit into the mikroBUS socket. The new mikroBUS
™
a fully-fledged, standardized monolithic component with all its pins clearly
labeled, offering very good grip for the Click board
or to be placed incorrectly.
The mikroBUS socket supports the following communication interfaces: SPI,
™
UART, and I2C. There are also single pins reserved for PWM, Interrupt, Analog
input, Reset, and SPI Chip Select. The mikroBUS
with the two power rails (3.3V and 5V), along with the GND pins.
Each SiBRAIN card has different pins routed to the mikroBUS
depending on the particular MCU. Therefore, each mikroBUS
labeled on the development board with its ordinal number, by which the
connector is referenced to in the MIKROE development environment, software
applications, tutorials, etc.
Also, each SiBRAIN card has the pins routed to the corresponding mikroBUS
clearly labeled on the SiBRAIN card itself, as described in the SiBRAIN section.
This allows users to instantly know which MCU pin is routed to a pin on the
specific mikroBUS socket.
™
™
host connectors. It
™
. In addition to added
™
, making it
™
socket is now
™
, preventing it to flip over
™
socket also contains pins
™
sockets,
™
socket is
™
™
