3 oscilloscope GND pins
are conveniently positioned
so each part of the board
can be reached with an
oscilloscope probe
E a s y M x
P R O v 7 a
U s e r M a n u a l

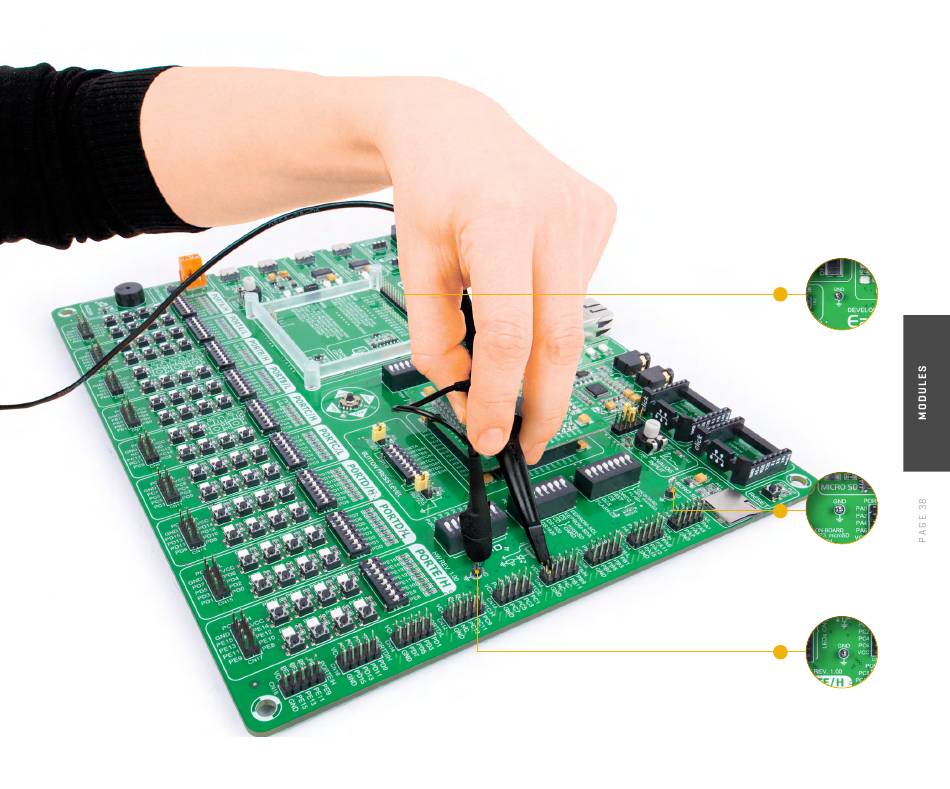

ADDITIONAL GNDs
EasyMx PRO v7a for STM32 contains three GND pins located in three different
sections of the board, which allow you to easily connect oscilloscope GND reference
when you monitor signals on microcontroller pins, or signals of on-board modules.
1
GND pin located
near the 4 digit
7-seg display
2
GND pin located
near the DIP28
socket and PORTD
3
GND pin located
near the DIP8 and
DIP18B socket
