Measurements in millimetres mm

Information updated July 2020

Tel 0345 873 8840

TECHNICAL DATA

CODE No UNIT

IF5000Dxx

Required top

Worktop see prevailing Crosswater catalogue

Recommended use: Domestic, residential

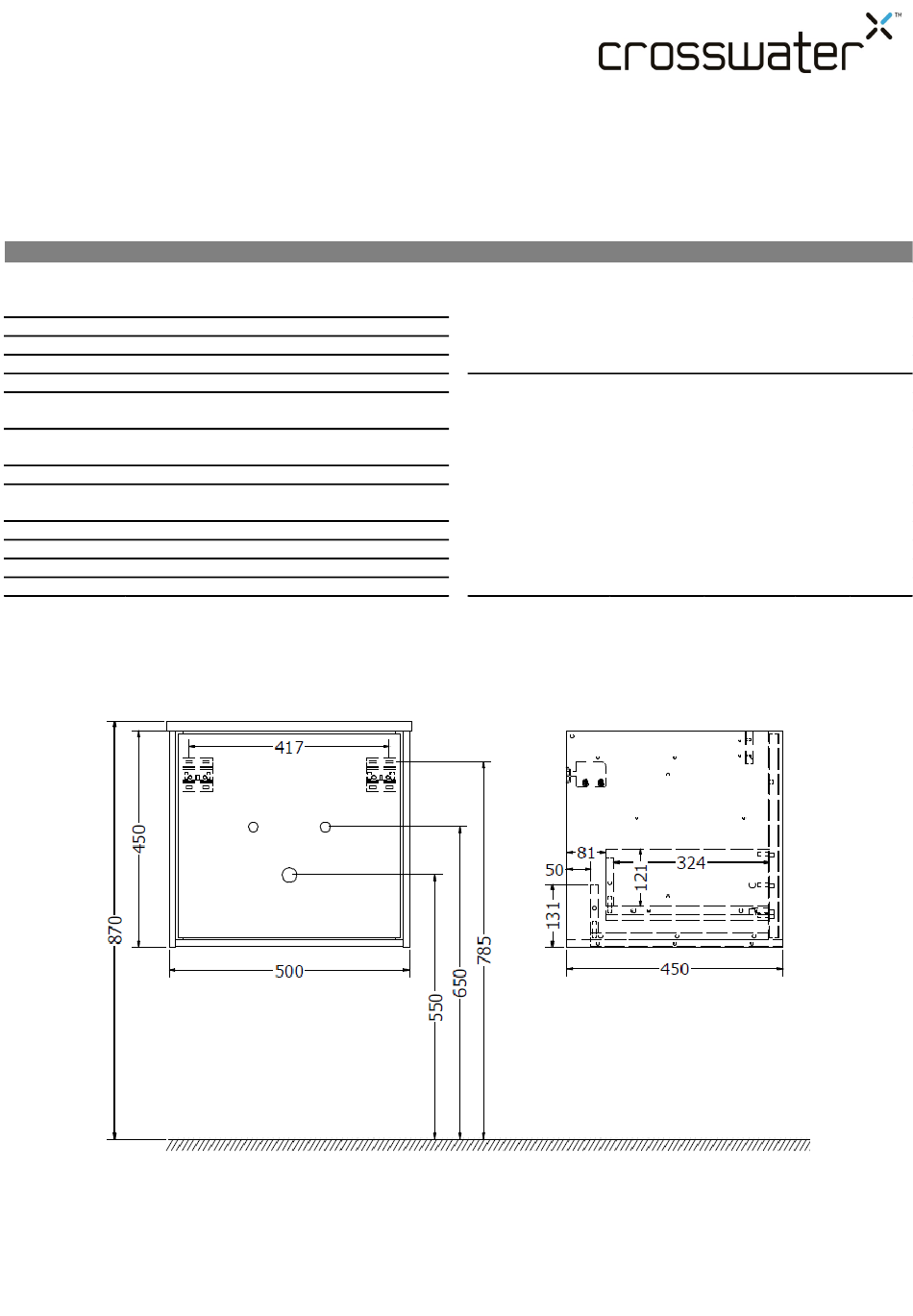

Dimension Unit

w 500 x d 450 x h 450mm

Installation:

Wall Hung

Materials:

Carcass and drawer front 18mm MDF

Drawer set 18mm MDF

Specification:

Full extension soft close drawers - 30kg weight capacity

Anti-tip wall hangers 170Kg capacity

Weight:

21kg

Fitting:

Wall hangers integrated into carcass

Wall brackets supplied

Required Fitting:

Compatbile to basin requirement

Advised Fitting:

Space saving 50mm seal trap BTR0510W

Option Accessories: Handles - see right. Interior drawer and LED light bar

Warranty

10 years on furniture

INFINITY 500mm FURNITURE

SPECIFICATION

Installation Information:

The intended installation wall needs to be strong

enough for the weight of the furniture and basin. Wall

fixings for solid walls included.

Laminate finishes/lacquer tested to ISO 22196

Measurement of antibacterial activity Graded Strong

value of anit-bacterial effect A>3

Furniture Colours:

Black Matt

IF5000DBM

Storm Grey Matt

IF5000DSG

White Gloss

IF5000DWG

Windsor Oak

IF5000DWO

Handle Colour options:

IF_HANDLEC

Chrome

IF_HANDLEBM

Matt Black

IF_HANDLEF

Brushed Brass effect

IF_HANDLEV

Stainless Steel Effect

EN622 type 5

Need help?

Do you have a question about the INFINITY 500mm FURNITURE and is the answer not in the manual?

Questions and answers

Summary of Contents for Crosswater INFINITY 500mm FURNITURE

Page 1 IF5000Dxx Installation Information: The intended installation wall needs to be strong Required top Worktop see prevailing Crosswater catalogue enough for the weight of the furniture and basin. Wall fixings for solid walls included. Laminate finishes/lacquer tested to ISO 22196 Recommended use: Domestic, residential...
Page 2 IF5000Dxx Installation Information: The intended installation wall needs to be strong Required top Worktop see prrvailing Crosswater catalogue enough for the weight of the furniture and basin. Wall fixings for solid walls included. Laminate finishes/lacquer tested to ISO 22196 Recommended use: Domestic, residential...
Page 3 Check the contents of the pack carefully before installation. lifting, and follow health and safety guidelines. It is recommended Crosswater will not be held responsible for any de-ﬁt / re-ﬁt costs that 2 people carry out the installation of larger basin/vanity units.
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS One Drawer Basin Unit & Basin Installation - 500 Basin Unit Step 1 Step 2 Plan unit position Decide on the position and height of the unit.The recommended basin height es between 860mm and 870mm from ﬂ oor to top of basin.
Page 5 Step 4 Step 5 Step6 Attach drawer handle Re-ﬁ t drawers: (should be after furniture assembly below (should be after re-ﬁ t drawer but before drawer adjustment) but before drawer adjustment) (pre-ﬁtted on inside of drawer) 1: Pull drawer runners fully out. Attach the handle to the 2: Set the drawer down onto the runners.
Page 6 INBATHROOM FURNITURE ASSEMBLY HANGING THE FURNITURE When installing two or more units, ensure the units are correctly positioned side by side, front to back and in height - the base of each unit should be level as shown in examples below. 50+50 20+50 50+20+50...
Page 7 DRAWER RUNNER ADJUSTMENT The weight capacity for drawer is 40Kg Each drawer is fully aligned and tested during production. If adjustment is required please follow the gui- delines below: Step 1 Front height adjusment Max. + 3.5 mm Front tilt adjustment Step 2 Max.
Page 8 Secure side cambolts ﬁ rst b. secure underside cambolt c. replace drawer correctly in carcass For any further information please contact Crosswater on: 0345 873 8840 Or visit our web-site at: www.crosswater.co.uk The manufacturer reserves the right to make technical...
Page 9 Check the contents of the pack carefully before installation. that 2 people carry out the installation of larger basin/vanity units. Crosswater will not be held responsible for any de-ﬁt / re-ﬁt costs where faulty product has been ﬁtted. Warning! ! Please check for any hidden pipes or electrical cables If any fault is found with materials or workmanship, it must be before drilling holes in the ﬂoor or walls.
Page 10 INSTALLATION INSTRUCTIONS One Drawer Basin Unit & Basin Installation - 500 Basin Unit Step 1 Step 2 Plan unit position Decide on the position and height of the unit.The recommended basin height es between 860mm and 870mm from ﬂ oor to top of basin.
Page 11 Step 4 Step 5 Step6 Attach drawer handle Re-ﬁ t drawers: (should be after furniture assembly below (should be after re-ﬁ t drawer but before drawer adjustment) but before drawer adjustment) (pre-ﬁtted on inside of drawer) 1: Pull drawer runners fully out. Attach the handle to the 2: Set the drawer down onto the runners.
Page 12 INBATHROOM FURNITURE ASSEMBLY HANGING THE FURNITURE When installing two or more units, ensure the units are correctly positioned side by side, front to back and in height - the base of each unit should be level as shown in examples below. 50+50 20+50 50+20+50...
Page 13 DRAWER RUNNER ADJUSTMENT The weight capacity for drawer is 40Kg Each drawer is fully aligned and tested during production. If adjustment is required please follow the gui- delines below: Step 1 Front height adjusment Max. + 3.5 mm Front tilt adjustment Step 2 Max.
Page 14 Secure side cambolts ﬁ rst b. secure underside cambolt c. replace drawer correctly in carcass For any further information please contact Crosswater on: 0345 873 8840 Or visit our web-site at: www.crosswater.co.uk The manufacturer reserves the right to make technical...
