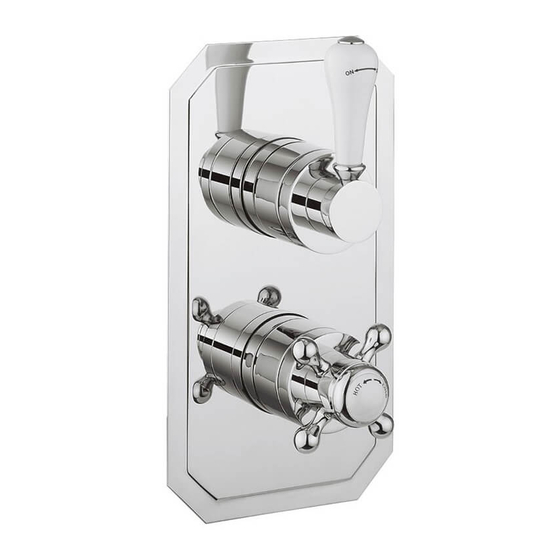

Crosswater 1000 Series Installation Instructions

1000/1500/2000/2500/3000
Shower Valve Trim Kits
US-ARCV34/US-ARCV35
US-BL1000/1500/2000/2500/3000
US-PRO1000/1500/2000/2500/3000
US-WF1000/1500/2000/2500/3000
US-WP1000/1500/2000/2500/3000
Installation Instructions

Introduction

The installation must comply with all plumbing codes including local
codes. NOTE: Image shows single-outlet trim kit, please follow the
same steps if you have a multi-outlet valve.
NOTE: These instructions also apply if you have a lever or cross
handle. (Please make sure you place in correct orientation if there are
etchings on the front of the handle.)
INSTALLATION: Turn off the main water supply before connecting to any
existing pipe work.
WARNING! Please check for any hidden pipes and cables, electric or
otherwise before drilling holes in a wall.
NOTE: Inspect for any damage that may have occurred during transport.
Damage claims cannot be made during or after installation.

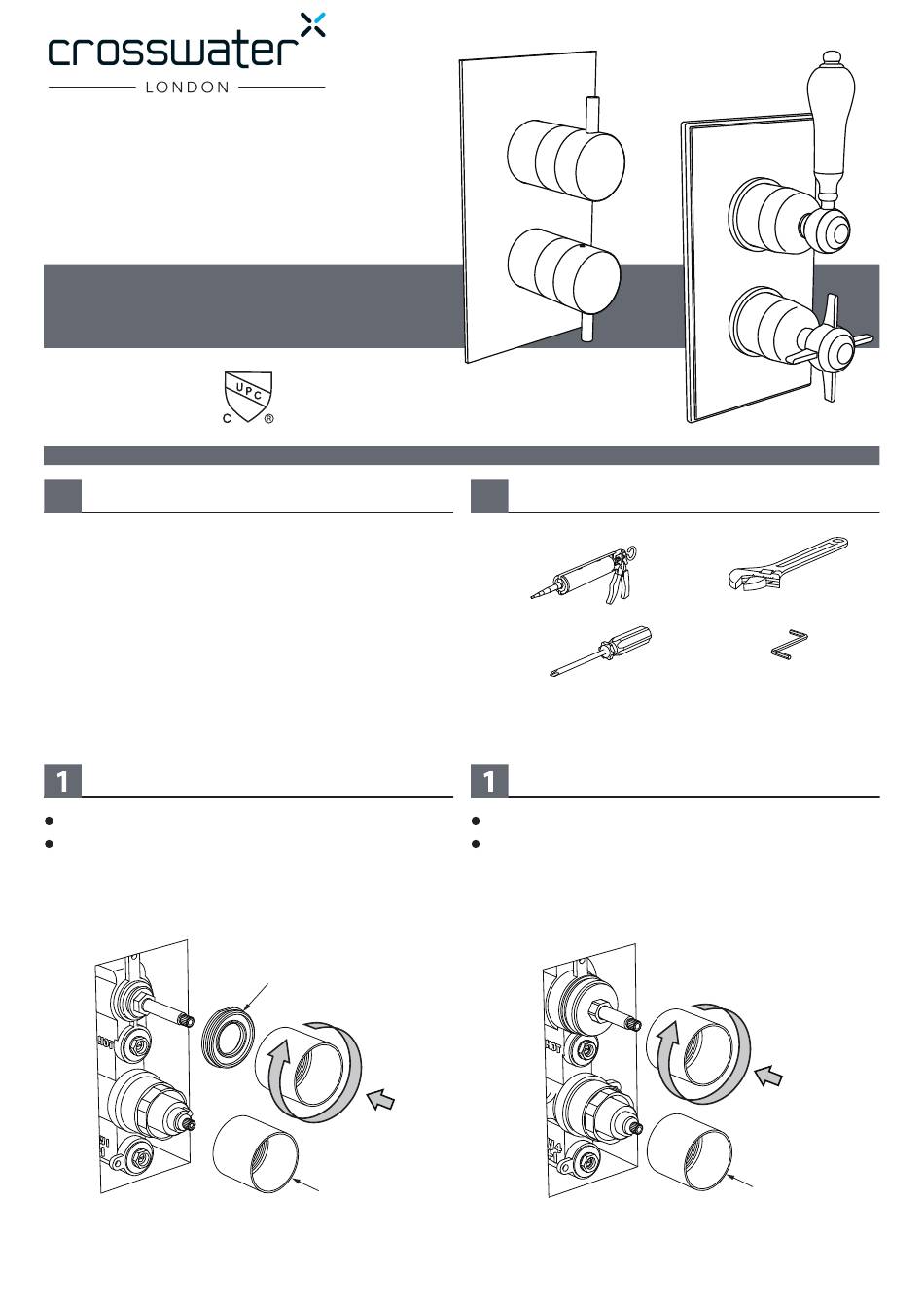

Installation 1000 rough

Follow install guide for US-WLBP1000 valve rough.
Attach collars by turning these into the valve.
COLLAR
ADAPTOR
COLLARS

Tools required

Clear silicone
adhesve caulk
Cross head
screwdriver

Installation 1500 rough

Follow install guide for US-WLBP1500 valve rough.
Attach collars by turning these into the valve.
Adjustable
wrench
Hexagonal
key
COLLARS
