Crosswater INFINITY Series Installation Instructions

BATHROOM FURNITURE RANGE
Worktop
Tools & equipment needed: Drill, 8mm Suitable drill bit, Screwdriver, Spirit level, Ruler/tape measure, Pencil, Silicone sealant (clear).
IMPORTANT - Advice and safety - Please read before installation
Please read these instructions carefully before starting
installation and keep in a safe place for future reference.
Check the contents of the pack carefully before installation.
Crosswater will not be held responsible for any de-fit / re-fit costs
where faulty product has been fitted.
If any fault is found with materials or workmanship, it must be
reported immediately to the manufacturer. Remedial action will
be taken, based on information received, on condition that:
1. Full details are supplied to the manufacturer; 2. The product
has not been modified or tampered with; 3. The manufacturer is
informed of any damage/shortages prior to installation.
We do not accept responsibility for any problems that may occur
through incorrect installation.
Advice & Safety
This product should only be installed by a suitably qualified
Plumber/installer. Should the installation be completed by a
non-qualified person any product guarantee maybe considered
invalid. For a claim made under our warranty written certification
of your installers qualifications can be required.
It is advised that all doors and drawers are removed prior to
fitting to avoid unnecessary damage occurring.
Ensure the room is well heated and ventilated.
It is recommended that walls are fully tiled before furniture and
accessory installation. This ensures that the product is installed
flat to the tile face and allows product to be easily removed if
required in the future.
InfinityFurniture
IF5100T
510mm
4Kg
IF7100T
710mm
6Kg
IF9100T
910mm
7Kg
IF1010T
1010mm
8Kg
IF1210T
1210mm
9Kg
IF1410T
1410mm
10Kg
To ensure full working use of the
drawers we recommend the use of
basin furniture trap BTR01410W.

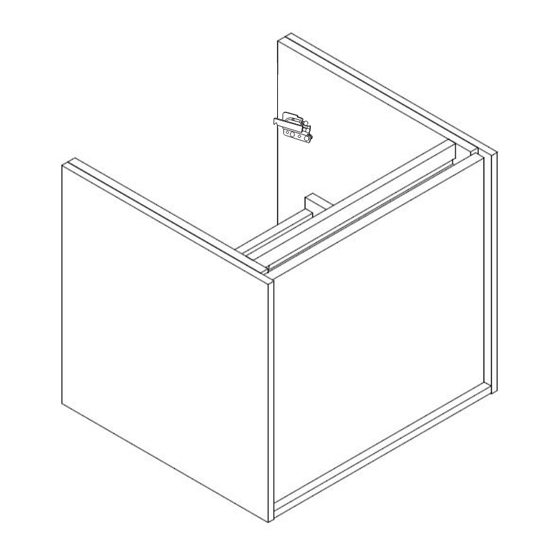

500 Basin Unit
IF5000D
20Kg
x8
x2
These instructions have been prepared for your guidance, you
must exercise due care always.
Please note that some units are heavy. Always take care when
lifting, and follow health and safety guidelines. It is recommended
that 2 people carry out the installation of larger basin/vanity units.
Warning! ! Please check for any hidden pipes or electrical cables
before drilling holes in the floor or walls.
When using power tools always follow the manufacturer's user
instructions.
Do not over tighten tap or waste fittings, doing so may result in
damaging the basin.
The vanity units CAN ONLY BE installed using the fitting brackets
supplied. Before installing a wooden bathroom product into a new
property, extension or recently plastered room we strongly advise
the building/room is completely dry, well ventilated and adequately
heated prior to installation.
Care & Cleaning.
NEVER use products containing bleach, cleaners of a gritty or
abrasive nature or so called "glass and mirror" cleaning products.
Use a well wrung chamois leather or microfiber cloth for furniture
carcasses.
Ceramic fine fire clay wash basins should only be cleaned with a
mild detergent or warm soapy water; in hard water areas a good
quality limescale remover can be applied.
If any maintenance is required, then it must be carried out by a
qualified Plumber.
INFINITY
200 Basin Unit
x2
IF2052
12Kg
x4
x2
