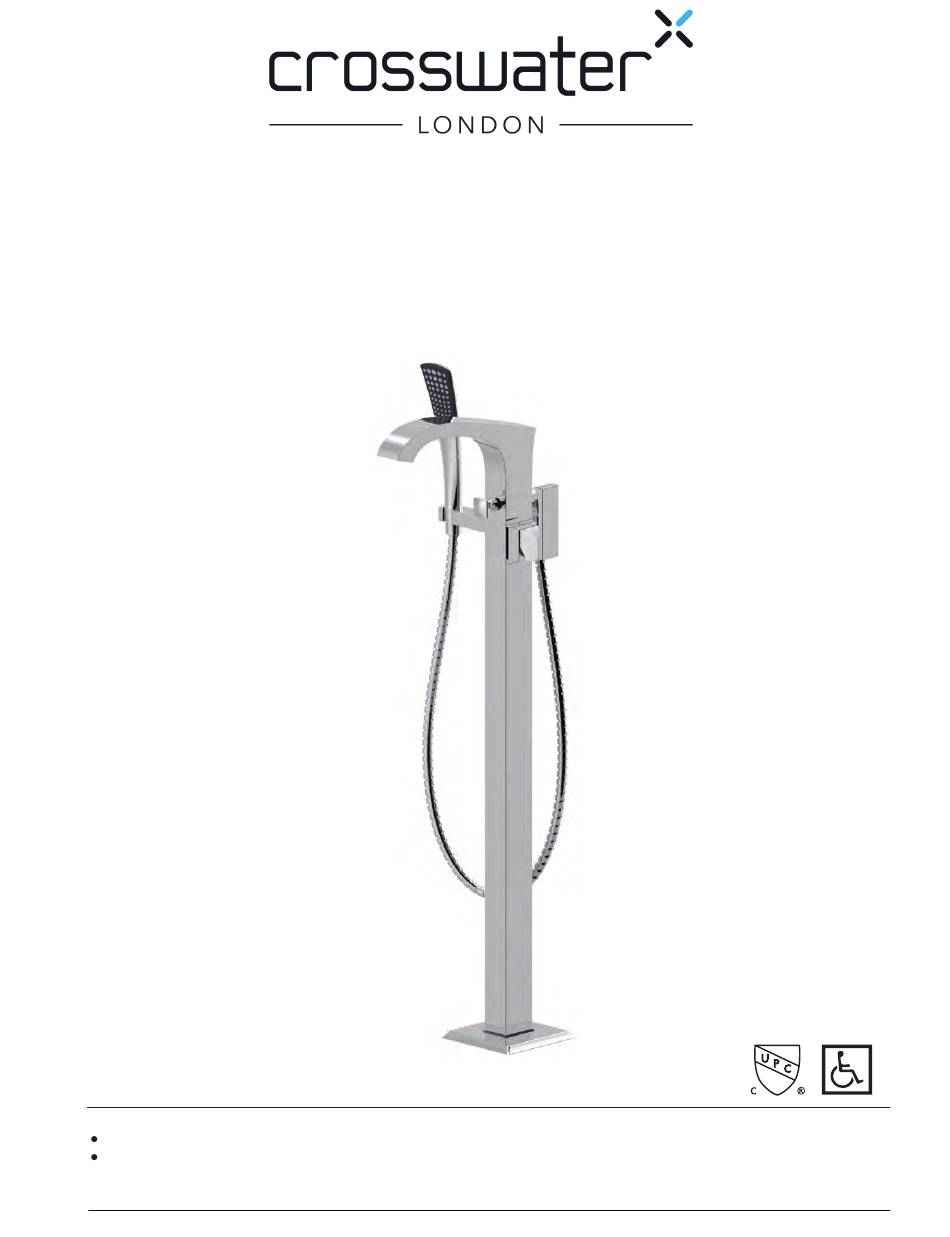

Leyden Floor-mount Tub Filler
14-05
Installation Instructions
For ease of installation you will need:
To read the installation instructions completely before beginning.
To read all warnings, care, and maintenance information.
Anti-scald protection is the responsibility of the installer
and according to applicable codes.
Before beginning installation, check for any damage that
may have occurred during transport.
Note: Damage claims cannot be made during or after
installation.
15122806
Advertisement
Table of Contents
Related Manuals for Crosswater Leyden 14-05
Summary of Contents for Crosswater Leyden 14-05
- Page 1 Leyden Floor-mount Tub Filler 14-05 Installation Instructions For ease of installation you will need: Before beginning installation, check for any damage that To read the installation instructions completely before beginning. may have occurred during transport. Note: Damage claims cannot be made during or after To read all warnings, care, and maintenance information.
- Page 2 14-05 Installation Instructions FRONT SEALING TAPE F R O COLD COLD Locate the position on the wood support where the Sweat together Hot and Cold Supply assemblies. Apply MANIFOLD MOUNTING BASE will be installed. Use the sealing tape to threaded connections. With the maximum MANIFOLD MOUNTING BASE as a guide to mark the four and minimum measurement in front, the hot supply is to be mounting hole locations.Drill pilot holes if required.
- Page 3 FINISHED FLOOR FINISHED FLOOR ROUGH FLOOR Complete the installation of the Finished Floor. Tile as close When you are ready to install the TUB FILLER cut the to the PLASTER GUARD as possible.Caulk between exposed part of the PLASTER GUARD flush with the Finished Floor and PLASTER GUARD.
- Page 4 APPLY SEALANT FOAM PROTECTOR 6mm HEX WRENCH 2.5mm HEX WRENCH Turn on water supplies and check all connections for leaks. Check MANIFOLD connections for leaks.Remove foam protector and apply sealant to under side edge on ESCUTCHEON . Slide ESCUTCHEON down to finish floor. Mount handheld bracket onto spout base.
- Page 5 14-05 Replacement Parts NO. Description Part No. 1 Hand Shower 5F0M0178 2 Aerator Assembly 5Q0M0025PL 3 Diverter Knob Assembly 9Q241700 Hand Shower Hose 51014603 Hot & Cold Supply 5G0M0237CC 13mm HEX WRENCH Mounting Base Screw 5T0F0143NT Mounting Assembly 9Q221900NT 6mm hex wrench 5T4000400ZZ0 Escutcheon 9Q241800...
- Page 6 3-3/4" 4-1/2" 2-15/16" Warranty - This Crosswater London product is covered by a limited lifetime warranty. For full details, terms and conditions please visit our website. www.crosswaterlondon.com For further information contact: Crosswater London, 393 Fortune Blvd., Milford, MA 01757 email: technical@crosswaterlondon.com...
