Fenmore

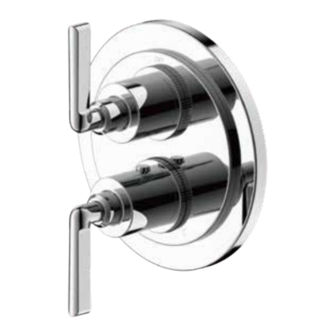

Dual Handle Thermostatic Trim With
Volume Control and Diverter
28-20-T
Installation Instructions
Adjustable Wrench
For ease of installation you will need:
● To read the installation instructions completely before beginning.
● To read all warnings, care, and maintenance information.
● To complete the valve rough-in prior to installing this trim kit.
Tools You Will Need
Adjustable Pliers
Before beginning installation, check for any damage
that may have occurred during transport.
Note: Damage claims cannot be made during or
after installation.
Screwdriver
15125627
Advertisement
Table of Contents
Related Manuals for Crosswater Fenmore 28-20-T
Summary of Contents for Crosswater Fenmore 28-20-T
- Page 1 Fenmore Dual Handle Thermostatic Trim With Volume Control and Diverter 28-20-T Installation Instructions Tools You Will Need Adjustable Wrench Adjustable Pliers Screwdriver For ease of installation you will need: Before beginning installation, check for any damage ● To read the installation instructions completely before beginning. that may have occurred during transport.
-
Page 2: Installation Instructions
28-20-T Installation Instructions NOTE: Make sure the hole in the Ensure that the valve installed Turn off the water supply and remove stem is facing straight up. (This sets correctly. the mud guard. the valve at 100ºF). Slide on top plate on the finished sleeve. - Page 3 Safety Temperature Turn on the water supply, with the Turn on the water supply. Remove all temperature control handle in the shower heads and/or hand showers. default position, measure the Turn off the water supply. Remove Turn the volume control/diverter temperature of the water.
-
Page 4: Cleaning Instructions
Reinstall handle, escutcheon. Installation completed. Reinstall the inner white temperature range control ring. Cleaning Instructions Rinse away any traces of soap and gently dry with a clean, soft cloth after each use. Rinse completely with water and dry any overspray. This will maintain the finish and avoid water spotting. -
Page 5: Replacement Parts
28-20-T Replacement Parts NO. Description Part NO. Handle Assembly 5Y0342300 O Ring 5R0R0294PL Spring＆Button＆Pin 9Q1112 Escutcheon 5L0073600 Washer 5R4003700PL0 Handle Assembly 5Y0342200 Hex Set Screw 9Q1356NT Dome 5L0C0865 Washer 5R4Q0036PL 10 Screw M4X80 5T0F0266NT Escutcheon Assembly 5Y0344700 12 Extension kit 9Q242000 13 Temperature Range Control Ring 5K202720PL... -
Page 6: Installation Dimensions
2-3/4 ＂ -3-1/4 ＂ 4 5/16 ＂ Warranty - This Crosswater London product is covered by a limited lifetime warranty. For full details, terms and conditions please visit our website. www.crosswaterlondon.com For further information contact: Crosswater London, 393 Fortune Blvd., Milford, MA 01757...
