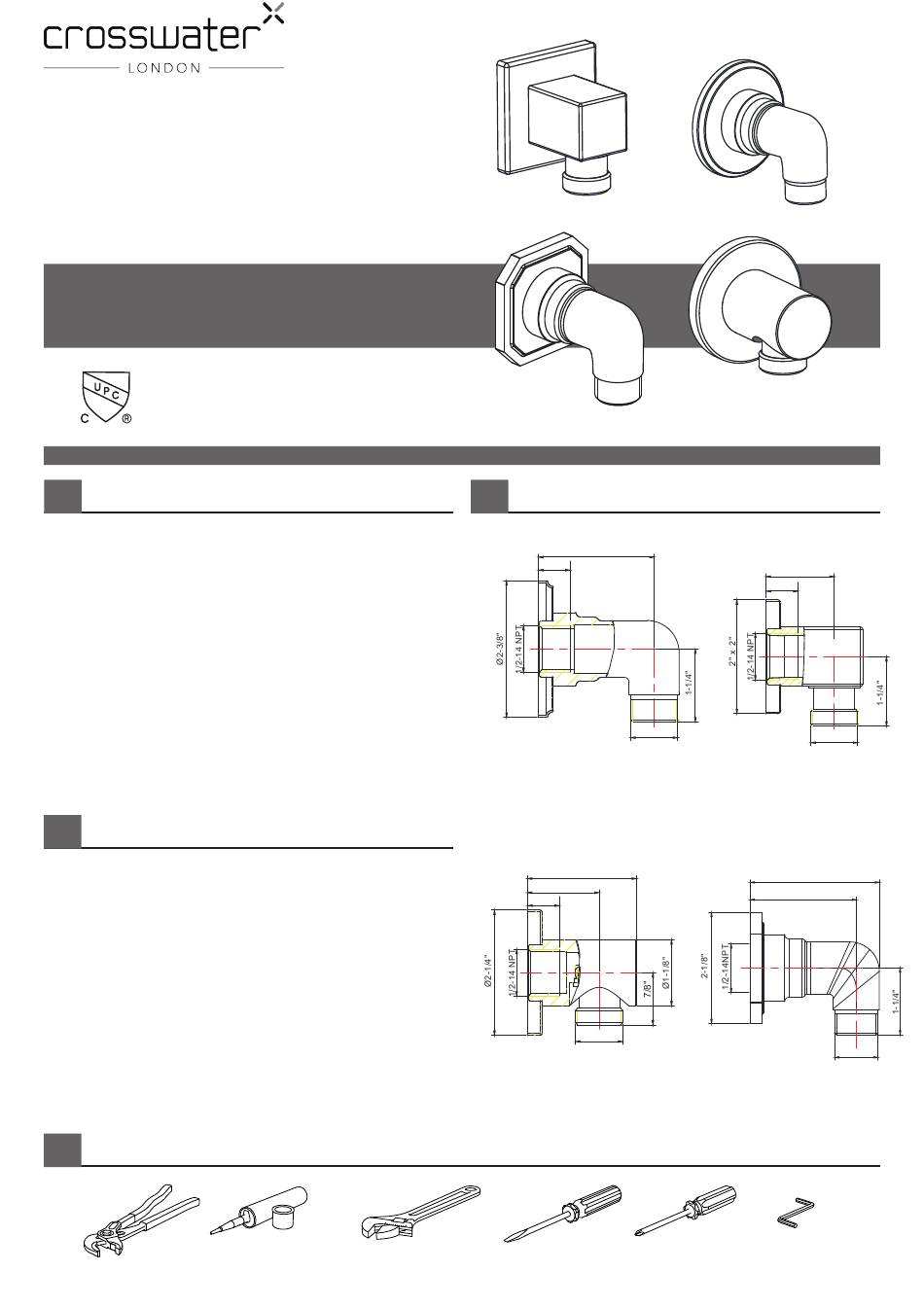

Crosswater US-ARC953 Installation Instructions

Wall Outlets
US-ARC953
US-WF953
US-WL952
US-WL953
Installation Instructions

Introduction

The wall outlet has been fully inspected throughout the production
process and only leaves our factory after a 15-step QC process.
Carefully remove the wall outlet from the box and check that all parts
have been supplied.
Before beginning installation, please check for any damage that may
have occurred during transport. Note: Damage claims cannot be
made during or after installation.
Improper installation shall result in loss of warranty in case of
damage caused by impacts or rubbing against rough surfaces.
Prior to installing the wall outlet, prepare a connection of water
inlet/outlet.
IMPORTANT: Please read these instructions carefully before
beginning and retain for future reference.
We do not accept responsibility for any problems that may occur
through incorrect installation.

Installation notes

The installation must comply with all plumbing codes including local
codes and be installed by a licensed plumbing contractor.
IMPORTANT! Before installing a new wall outlet it is essential that the
supply pipes are thoroughly flushed in order to remove any remaining
debris, solder or other impurities. Failure to carry out this simple
procedure can cause problems or damage to the working of the
wall outlet.
Installing shut-off valves on incoming supply lines is recommended
for ease of maintenance.
Turn off the main water supply before connecting to any existing
pipework or doing any maintenance.
WARNING! Please check for any hidden pipes and cables, electric
or otherwise, before drilling holes in a wall or floor.

Tools required

Channel
locks
Plumbers' putty Adjustable
or caulking wrench

Dimensions

2"
1/2"
G1/2"
US-ARC953
1-7/8"
1-1/4"
1/2"
G1/2"
US-WL953
Flat head Cross head
screwdriver screwdriver
1-1/4"
1/2"
G1/2"
US-WL952
2-3/8"
2"
G1/2"
US-WF953
Hexagonal
key
