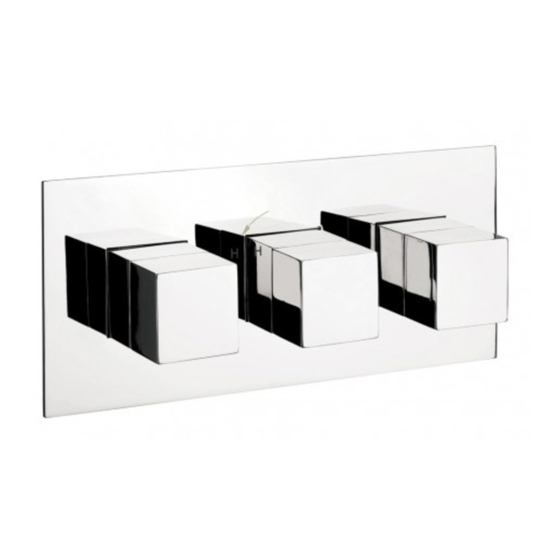

WS2001RC
THERMOSTATIC SHOWER VALVE
Installation INSTRUCTIONS
For any further information please contact
Crosswater on: 0845 873 8840
Or visit our web-site at www.crosswater.co.uk
The manufacturer reserves the right to make technical
modifications without prior notice.
P5-WS2001RC-E A/0
Advertisement
Table of Contents
Related Manuals for Crosswater WS2001RC
Summary of Contents for Crosswater WS2001RC
- Page 1 WS2001RC THERMOSTATIC SHOWER VALVE INSTALLATION INSTRUCTIONS For any further information please contact Crosswater on: 0845 873 8840 Or visit our web-site at www.crosswater.co.uk The manufacturer reserves the right to make technical modifications without prior notice. P5-WS2001RC-E A/0...
- Page 2 WS2001RC INTRODUCTION DIMENSIONS This thermostatic valve is suitable for use with all water systems up to a maximum 45X45 45X45 45X45 operating pressure of 5.0 bar, (beyond which we recommend pressure reducing valves to be fitted). The thermostatic valve has two outlets that can be controlled simultaneously.
- Page 3 WS2001RC INSTALLATION INSTALLATION NOTES: FIXING LUGS Please read these instructions carefully and keep in a safe place for future reference. The installation must comply with all Local/National Water Supply Authority Regulations/Bye laws and Building and Plumbing Regulations (UK: BS6700). This valve is a mixing device and therefore requires the water supplies to be...
- Page 4 WS2001RC TEMPERATURE SETTING MAINTENANCE To set the temperature, remove the FILTERS/CHECK VALVES handle and unscrew the centre screw of The check valves stop cross flow the thermostatic control cover. Rotate the between the hot and cold supplies. exposed thermostatic spindle (clockwise for cold, and anti-clockwise for hot) until the To clean the Check Valves.
