Teladoc Health Lite 4 Quick Reference Manual

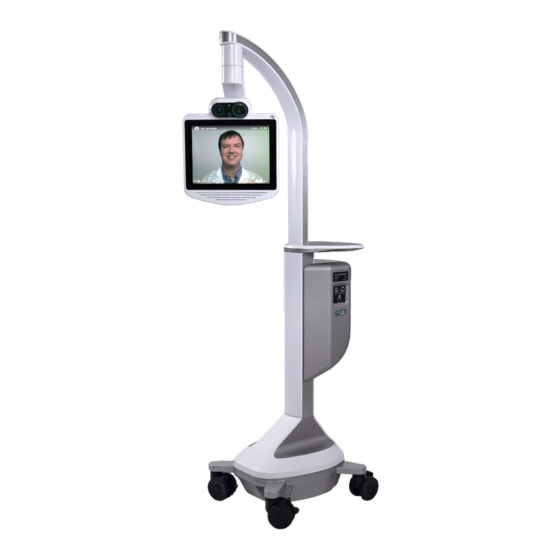

Teladoc Health™ Lite
1

Directional Microphone

2 Dual High Definition Cameras Captures remote video for viewing at the Provider Access .
3

Thermal Camera (Optional)

4

Touch Sensitive Display

5

Battery Charging Status

6

Expansion Panel

7 Tray
8

Handle

9 Power Cord
10 Storage Compartment
11

Wheel Locks

12

Air Vents

13 Back of Touch Display
14 Device Nameplate
15

Power Button

16

Privacy Handset

17 Serial Number Plate
18 Neck
19

Speakers

4 Quick Reference Guide
®
Used to pickup audio in a narrow zone.
Used to view, measure and record heat patterns and variations.
Touch sensitive display enables local controls and shows Provider Access
Displays the power and charging status of the Lite 4.
Includes ports for approved USB peripheral devices, HDMI output, optional HDMI input, and
Ethernet.
Work surface for a laptop or other items
Easily maneuver the Lite 4.
Used to power the Lite 4 and recharge the battery.
Holds miscellaneous items.
Locks each wheel in place when stationary (four wheels).
Air vents help maintain a safe operating temperature for the device.
Power button and additional USB ports.
Nameplate detailing the device's serial number and regulatory information.
Used to toggle the power for the Lite 4.
Used for conversations requiring privacy or intelligibility in loud environments.
Contains the device's serial number and support contact phone number.
Can be raised from 64.5" to a height of 85.5" by way of lifting or lowering the display.
Used during sessions to hear the person connected to the device.
(Do not cover)
24/7 Technical Support (877) 484-9119
P/N: MA-20082-004—©2020 Teladoc Health
