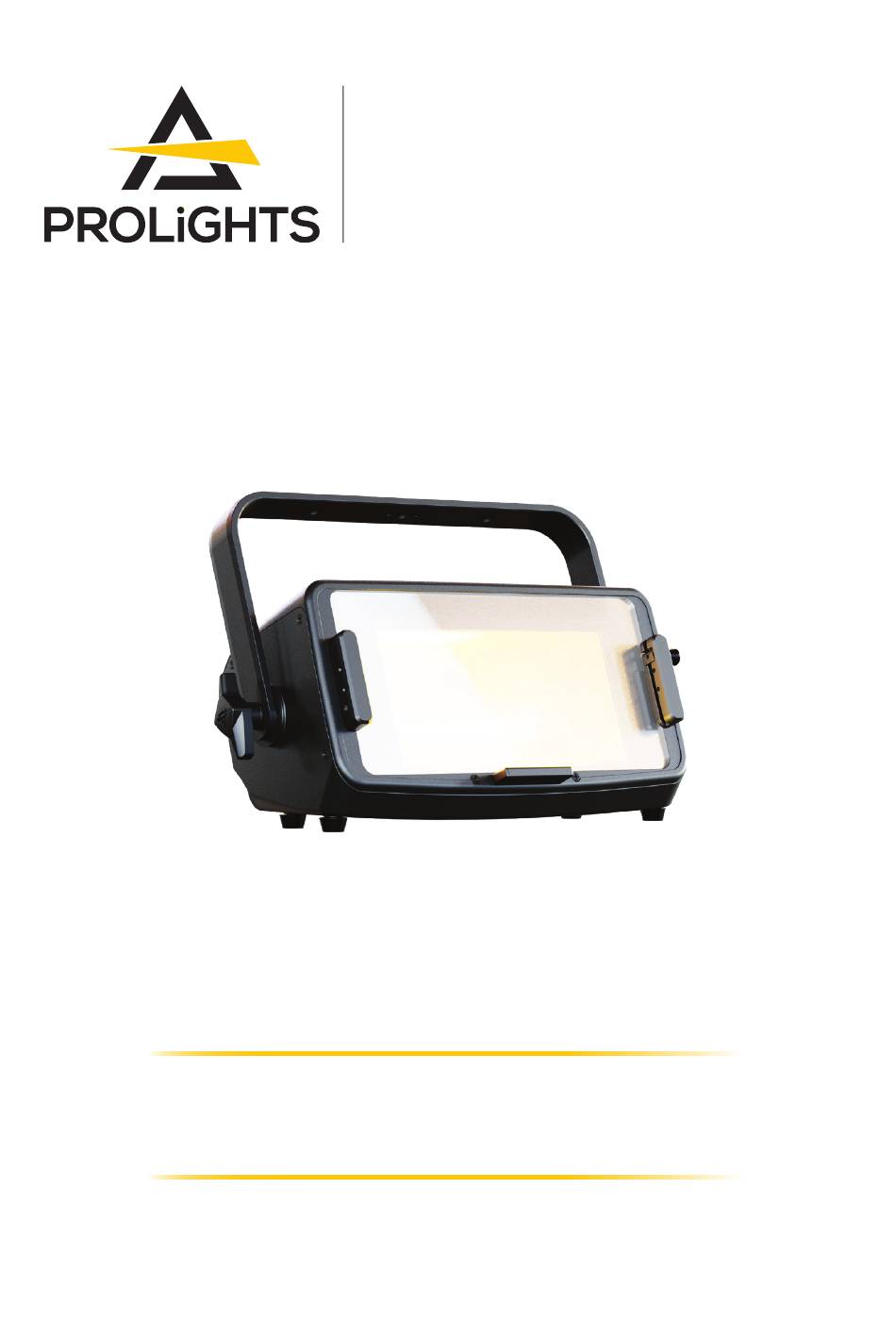

- Page 1 EclExpo Flood300FC 300W Full Colour RGB+WarmWhite asym- metric LED floodlight USER MANUAL English version REV.01-04/23 - PRELIMINARY...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
-
Page 3: Table Of Contents
FILTER FRAME (CODE ECLEXPOFL300FCFFB/W - OPTIONAL) ........29 BARNDOOR (CODE ECLEXPOFL300FCBDB/W - OPTIONAL) ........30 15 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............31 REPLACING THE FUSE ....................31 VISUAL CHECK OF PRODUCT HOUSING ..............31 TROUBLESHOOTING ..................... 32 PROLIGHTS - EclExpo Flood300FC... -
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •... - Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
- Page 6 • This device complies with Part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Other approvals PROLIGHTS - EclExpo Flood300FC...
-
Page 7: Packaging
• C6002A/B: slim aluminium clamp, 200 kg loading, 48-51 mm tubes, M10 bolt, silver/black. • SPGM10: 28mm spigot for fixtures, M10 bolt. • SPGM12: 28mm spigot for fixtures, M12 bolt. 2 - TECHNICAL DRAWING Weight: 5.2 kg / 11,46 lbs Fig. 01 PROLIGHTS - EclExpo Flood300FC... -
Page 8: Installation
Do not use any type of clamp that does not completely encircle the structure when fastened. C6002 RSR0630A/B clamp steel security cable 391 mm [15.4 in] 160 mm [6.3 in] 35 mm [1.4 in] Ø13 mm [0.5 in] Fig. 02 337 mm [13.3 in] PROLIGHTS - EclExpo Flood300FC... -
Page 9: Connection To The Mains Supply
• In case you wish to run the product through an external battery, then connect the product to an external battery (24-36V) into the dedicated XLR4p socket; to disconnect power, disconnect the Battery from the socket. PROLIGHTS - EclExpo Flood300FC... -
Page 10: Product Overview
8. DMX IN (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C. 9. DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C. 10. ANTENNA of Wireless DMX Receiver internal module. Fig. 03 PROLIGHTS - EclExpo Flood300FC... -
Page 11: Dmx Connection
... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 05 - Example 15 DMX channels configuration PROLIGHTS - EclExpo Flood300FC... -
Page 12: Construction Of The Dmx Termination
5. Ensure that the receiver units are not connected to any other transmitter. Please refer to "Reset the receiver" paragraph. 6. Enable TX LINK to ON to link transmitter to receivers (please note that TX LINK will be avaible only if WDMX mode is set to Transmitter). PROLIGHTS - EclExpo Flood300FC... -
Page 13: Unlinking The Transmitter
• The wireless icon on the receiver display indicates the received signal strength. WDMX TO DMX (RX) This function enable or disable the retransmission of the wireless DMX signal received throught the DMX port on the receiver side. PROLIGHTS - EclExpo Flood300FC... -
Page 14: Control Panel
The product is equipped with rotatory knobs for manual control of the product, those are enabled only in Stand Alone mode and they enable access to control certain attributes according to the selected STAND ALONE mode as indicated below. PROLIGHTS - EclExpo Flood300FC... -
Page 15: Menu Structure
<0-255> BASIC BASIC 16BIT STANDARD EXTENDED ADVANCED SETUP SCREEN BACKLIGHT Allows you to select the timing after that display will switch auto- matically off when unactive. FLIP Allows you to rotate the display DISPLAY by 180°. PROLIGHTS - EclExpo Flood300FC... - Page 16 ( ONLY READ) To check the current working hours of the unit. PARTIAL (READ AND RESET) SOURCE HOURS TOTAL ( ONLY READ) To see the total operating hours of the LED source. PARTIAL (READ AND RESET) PROLIGHTS - EclExpo Flood300FC...
- Page 17 Fade to black will be automati- cally actived… When FADE OUT TIME is 0, fade to black will be disactivated automatically… The effects can be considered as CHASE, once last color has fin- ished playing the sequence will start again PROLIGHTS - EclExpo Flood300FC...
- Page 18 4000K 4500K 5000K 5600K 6000K 6500K 7000K 8000K 9000K 10000K MANUAL <000-255> Available also using knobs RED | COLORS GREEN / BLUE | WHITE ; ENTER GREEN <000-255> button to switch parameters. BLUE <000-255> WHITE <000-255> PROLIGHTS - EclExpo Flood300FC...
-
Page 19: Rdm Functions
DMX_PERSONALITY 0x00E0 Setup DMX_PERSONALITY_DE- DMX512 0x00E1 SCRIPTION Setup DMX512 DMX_START_ADDRESS 0x00F0 Setup DMX512 SLOT_INFO 0x0120 Setup DMX512 SLOT_DESCRIPTION 0x0121 Setup DMX512 DEFAULT_SLOT_VALUE 0x0122 Setup DMX512 DMX_BLOCK_ADDRESS 0x0140 Setup DMX512 DMX_FAIL_MODE 0x0141 Setup DMX512 DMX_STARTUP_MODE 0x0142 Setup PROLIGHTS - EclExpo Flood300FC... - Page 20 Lamp Set- 0x0403 tings Power/ LAMP_ON_MODE Lamp Set- 0x0404 tings Power/ DEVICE_POWER_CYCLES Lamp Set- 0x0405 tings Display DISPLAY_INVERT 0x0500 Settings Display DISPLAY_LEVEL 0x0501 Settings Configura- LOCK_PIN 0x0640 tion Configura- LOCK_STATE 0x0641 tion LOCK_STATE_DESCRIP- Configura- 0x0642 TION tion PROLIGHTS - EclExpo Flood300FC...
- Page 21 MANUAL RED 0-255 rer PIDs Manufactu- MANUAL GREEN 0-255 rer PIDs Manufactu- MANUAL BLUE 0-255 rer PIDs Manufactu- MANUAL WHITE 0-255 rer PIDs 0: ON Manufactu- SPEKTRA 0 - 2 1: PURE COLORS rer PIDs 2: OFF PROLIGHTS - EclExpo Flood300FC...
-
Page 22: Shortcuts
[TEMPERATURE TOO HIGH] the led has been switched OFF by the product protection system. Need to be done standard maintenance and also reset of elapsed [MAINTENANCE TIME] time [DMX ACTIVE] Transfer configuration is used with dmx signal connected PROLIGHTS - EclExpo Flood300FC... -
Page 23: Dmx Charts
18CH MODE PARAMETER UNO DUO BASIC BASIC 16BIT STANDARD EXTENDED ADVANCED DIMMER DIMMER FINE CCT FINE TINT CROSSFADE RED FINE GREEN GREEN FINE BLUE BLUE FINE WHITE WHITE FINE COLOR MACRO CTO ON COLORS STROBE CONTROL PROLIGHTS - EclExpo Flood300FC... - Page 24 4600 4700 16384 17294 4700 4800 17294 18204 4800 4900 18204 19114 4900 5000 19114 20025 5000 5100 20025 20935 5100 5200 20935 21845 5200 5300 21845 22755 5300 5400 22755 23665 5400 5500 23665 24576 PROLIGHTS - EclExpo Flood300FC...
- Page 25 9100 9200 57343 58253 9200 9300 58253 59164 9300 9400 59164 60074 9400 9500 60074 60984 9500 9600 60984 61894 9600 9700 61894 62804 9700 9800 62804 63715 9800 9900 63715 64625 9900 10000 64625 65535 PROLIGHTS - EclExpo Flood300FC...
- Page 26 16 bit value Function Note From From Default @ 255 / 0 - 100% 65535 65535 White 8 bit value 16 bit value Function Note From From Default @ 255 / 0 - 100% 65535 65535 PROLIGHTS - EclExpo Flood300FC...
- Page 27 Deep Golden Amber Medium Blue Bright Pink Mauve Dark Green Lee Green Dark Blue Light Blue Steel Blue Medium Blue-Green Peacock Blue Magenta Dark Pink Middle Rose Light Salmon English Rose Light Rose Orange Deep Amber PROLIGHTS - EclExpo Flood300FC...
- Page 28 Straw Tint Medium Yellow Lee Minus Green Pale Gold Orange Deep Straw Rose Purple Deep Purple Soft Green Reserved for future use 2700K 2800K 3000K 3200K 3400K 3600K 3800K 4000K 4200K 4400K 4600K 4800K 5000K 5200K 5400K PROLIGHTS - EclExpo Flood300FC...
- Page 29 DIMMER SPEED MEDIUM DIMMER SPEED SLOW SPEKTRA CALIBRATION ON SPEKTRA CALIBRATION PURE COLORS SPEKTRA CALIBRATION OFF LED MODE HIGH QUALITY LED MODE HIGH BRIGHTNESS LED FREQUENCY 600HZ LED FREQUENCY 1200HZ LED FREQUENCY 2000HZ LED FREQUENCY 4000HZ PROLIGHTS - EclExpo Flood300FC...
- Page 30 STAND ALONE MASTER DMX STAND ALONE MASTER NO STAND ALONE SLAVE STAND ALONE EFFECTS STAND ALONE FIXED COLORS STAND ALONE CCT STAND ALONE WHITE PRESETS STAND ALONE COLOR MACROS STAND ALONE MANUAL COLORS Reserved Reset all channel controlled Reserved PROLIGHTS - EclExpo Flood300FC...
-
Page 31: Accessories Installation
Insert the anti-glare louvre into the slot (DETAIL 1). Pull the knob out (DETAIL 2) and insert the acces- sory filter frame from the top into the guide on the hardware of the unit (DETAIL 3). Then release the knob (DETAIL 3). NOTE: To remove the accessory, reverse the procedure. Fig. 08 PROLIGHTS - EclExpo Flood300FC... -
Page 32: Barndoor (Code Eclexpofl300Fcbdb/W - Optional)
Unscrew the knob of the barndoor accessory (DETAIL 1). Then mount the barndoor by screwing the knob with the hole on the unit hardware (DETAIL 2). NOTE: To remove the accessory, reverse the procedure. Fig. 09 PROLIGHTS - EclExpo Flood300FC... -
Page 33: Maintenance
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. -
Page 34: Troubleshooting
• Check if the Fuse is intact and eventually replace it if fault. necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in... - Page 36 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
