Summary of Contents for International Concepts C-465A

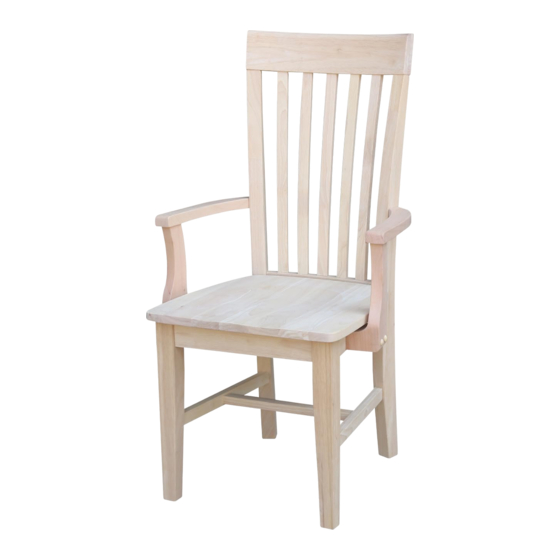

- Page 1 ASSEMBLY INSTRUCTIONS Description : TALL MISSION ARM CHAIR Item No. : C-465A ITEM NO.: C-465A Printed in Vietnam REVISED DEC 27, 2018 - 1 -...
-
Page 2: Before Assembly
Remove all wrapping material, including staples & packing straps before you start to assemble. DO NOT tighten all screws, bolts until completely assembled. Keep all hardware parts out of reach of children. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: C-465A Printed in Vietnam REVISED DEC 27, 2018 - 2 -... -
Page 3: Part List
Description Sketch Description Sketch Chair Back Seat Frame Front Leg Chair Seat (L-R) Side Stretcher Middle (L-R) Stretcher Arm Support (L-R) (L-R) ITEM NO.: C-465A Printed in Vietnam REVISED DEC 27, 2018 - 3 -... -
Page 4: Hardware List
(6.5 x 19mm) Allen Key Hexagon nut (M4 x 30mm x110mm) (M6 x 10mm) Wrench Small Flat Washer (10mm) (6.5 x13mm) Wood Plug Long Bolt (14.5) (M6 x 100mm) ITEM NO.: C-465A Printed in Vietnam REVISED DEC 27, 2018 - 4 -... - Page 5 Note: DO NOT tighten any of the bolts, until the chair is assembled, then put on a flat level surface to make sure the chair is level and then tighten the bolts. ITEM NO.: C-465A Printed in Vietnam REVISED DEC 27, 2018...
- Page 6 Allen key (9). Then use nuts (10), and washers (7) and (8) as shown below. Tighten with the wrench (11). Attach arms (H) to the back with screws (6) as shown below. Tighten with a screwdriver. ITEM NO.: C-465A Printed in Vietnam...
- Page 7 Attach the seat (C) to top of the seat frame (B) with screws (5) as shown below. Tighten with a screwdriver. Then insert wood plugs (13) over bolts to cover them. ITEM NO.: C-465A Printed in Vietnam REVISED DEC 27, 2018...
