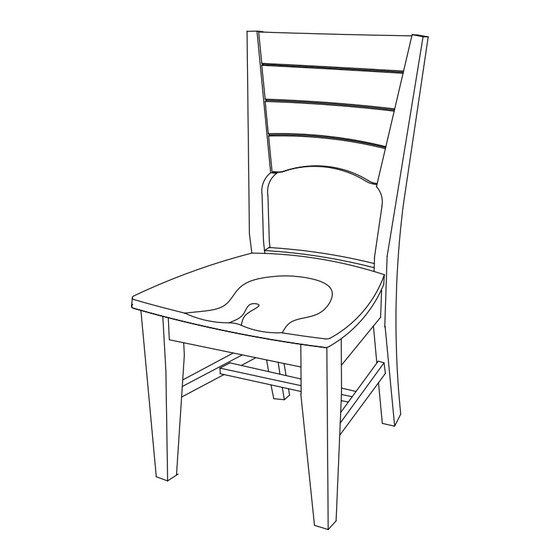

- Page 1 ASSEMBLY INSTRUCTIONS : CANYON FULL CHAIR Description : C-48 Item No. ITEM NO.: C-48 Printed in Vietnam REVISED AUG 27, 2018 - 1 -...
-
Page 2: Before Assembly
BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect. -
Page 3: Part List
PART LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following parts: Description Sketch Description Sketch Chair Back Seat Frame Front Leg Chair Seat (L-R) Side Stretcher Middle (L-R) - Page 4 STEP 1 Attach seat frame (B) to the back (A) with bolts (1) and (3), and washers (7) and (8), as shown below. Tighten with Allen key (9). Note: DO NOT tighten any of the bolts, until the chair is assembled, then put on a flat level surface to make sure the chair is level and then tighten the bolts.
- Page 5 STEP 3 Attach the seat (C) to top of the seat frame (B) with screws (5) as shown below. Tighten with a screwdriver. ITEM NO.: C-48 Printed in Vietnam REVISED AUG 27, 2018 - 5 -...
