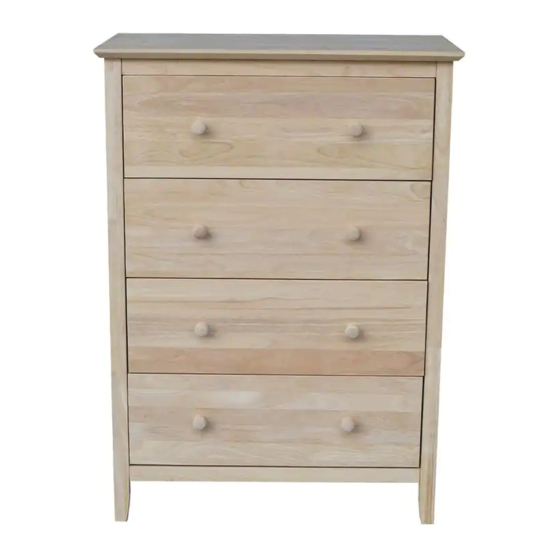

- Page 1 Serious or fatal injuries can occur from furniture tip over. Use tip over restraint (steel band included) to secure this product to the wall. Description : BROOKLYN 4 DRAWER CHEST Item No. : BD-8004 ITEM NO.: BD-8004 Printed in Vietnam REVISED DEC 07, 2016 - 1 -...
- Page 2 Protect the surface of the product with cloth if you are using any product with rubber feet or base. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: BD-8004 Printed in Vietnam REVISED DEC 07, 2016 - 2 -...
- Page 3 Sketch Description Sketch Side panel (L-R) Center panel Bottom panel Support bar Drawer front Drawer side (L-R) Drawer back Back panel Drawer bottom upper Back panel lower ITEM NO.: BD-8004 Printed in Vietnam REVISED DEC 07, 2016 - 3 -...
- Page 4 (M4 x 35mm) (M4 x 30mm) Wooden knob Medium screw (30 x 30mm) (M4 x 30mm) Short screw Steel band (M3 x 15mm) NOTE: WARNING LABEL (INCLUDED) ITEM NO.: BD-8004 Printed in Vietnam REVISED DEC 07, 2016 - 4 -...
- Page 5 (C), and center panel (D) and top (A) to the other side panel (B) with bolts (2), and washers (3) and (4) as shown below. Tighten with Allen key (1). ITEM NO.: BD-8004 Printed in Vietnam REVISED DEC 07, 2016...
- Page 6 Attach drawer back (H) to drawer sides (G) with screws (5) as shown below. Tighten with a screwdriver. STEP 5 Attach support bars (E) to bottom of drawers with screws (8) as shown below. Tighten with a screwdriver. ITEM NO.: BD-8004 Printed in Vietnam REVISED DEC 07, 2016...
- Page 7 Drill 1/8-inch (3mm) diameter hole(s) into the wood stud(s) located in the wall, where you marked with the pencil. Properly attach steel bands to the wall with screws (5) and tighten screw(s) firmly into the wall. ITEM NO.: BD-8004 Printed in Vietnam REVISED DEC 07, 2016...
