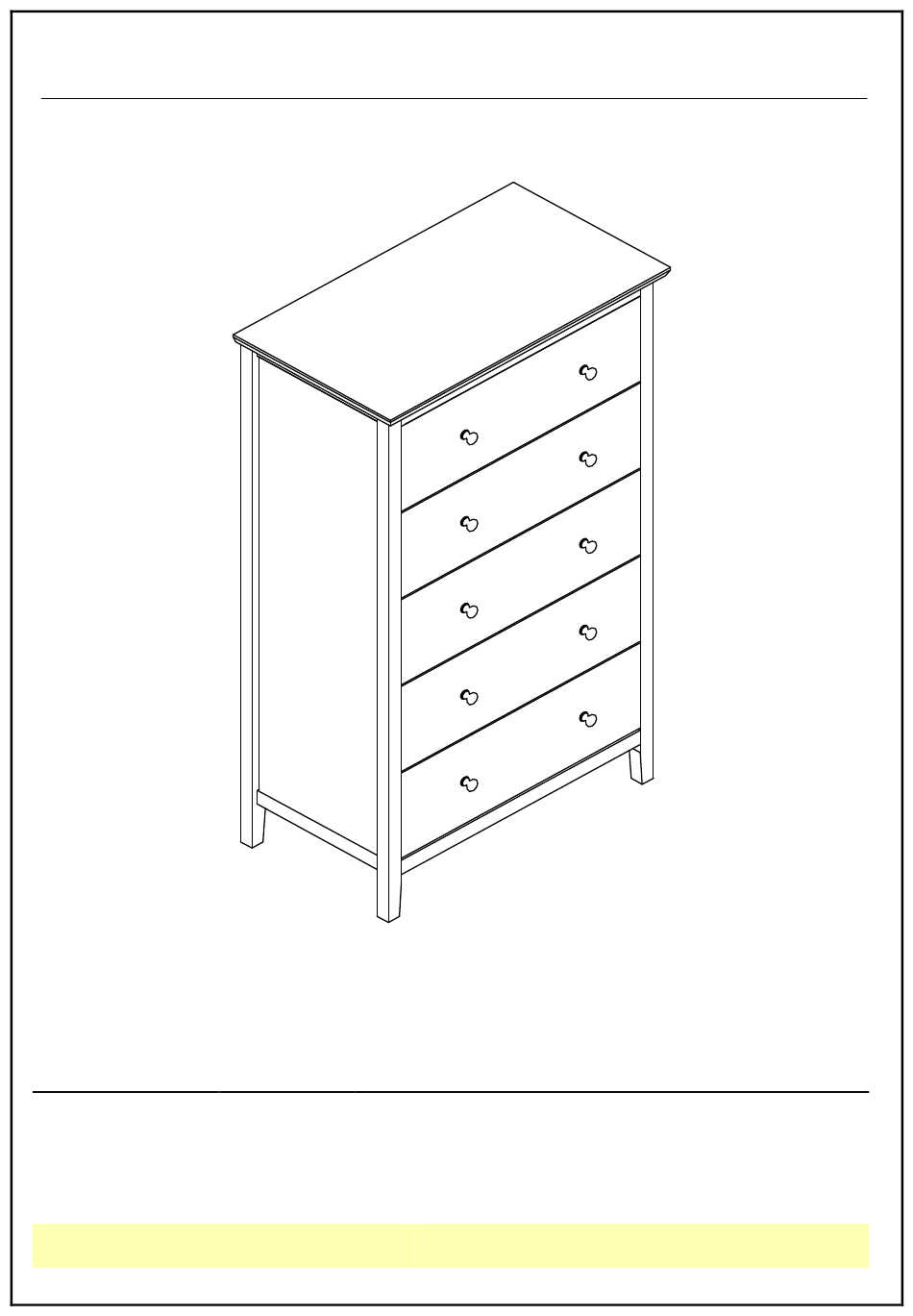

- Page 1 ASSEMBLY INSTRUCTIONS WARNING! Serious or fatal injuries can occur from furniture tip over. Use tip over restraint (steel band included) to secure this product to the wall. Description : BROOKLYN 5 DRAWER CHEST Item No. : BD-8005 ITEM NO.: BD-8005 Printed in Vietnam REVISED DEC 07, 2016 - 1 -...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect.
- Page 3 PART LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch Side panel (L-R) Bottom panel Center panel Back rail Back panel Drawer front Drawer side (L-R)
- Page 4 HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch Description Sketch Allen key Bolt (M4 x 30mm x 110mm) (M6 x 30mm) Spring washer Flat Washer (6.5 x 11mm)
- Page 5 STEP 1 Attach top (A), and center panel (D) and bottom panel (C) to side panel (B) with bolts (2), and washers (3) and (4) as shown below. Tighten with Allen key (1). Slide back panels (F) and back rails (E) into the grooves as shown below. STEP 2 Attach bottom panel (C), and center panel (D) and top (A) to the other side panel (B) with bolts (2), and washers (3) and (4) as shown below .Tighten with Allen key (1).
- Page 6 STEP 3 Attach back rails (E) to side panels (B) with screws (5) as shown below .Tighten with a screwdriver. STEP 4 Attach drawer sides (H) to drawer front (G) with screws (5) as shown below. Tighten with a screwdriver. Insert drawer bottom (J) into the grooves at bottom of drawer sides (H) and drawer front (G) as shown below.
- Page 7 STEP 5 Attach drawer back (I) to drawer sides (H) with screws (5) as shown below. Tighten with a screwdriver. STEP 6 Attach support bars (K) to bottom of drawers with screws (8) as shown below. Tighten with a screwdriver. ITEM NO.: BD-8005 Printed in Vietnam REVISED DEC 07, 2016...
- Page 8 STEP 7 Attach knobs (7) to front of drawers with pan head screws (6) as shown below. Tighten with a screwdriver. Carefully put the drawers into the unit. STEP 8 Attach steel bands (9) to the unit with screws (10) as shown below. (to secure the product to the wall and reduce the risk of tipping over).
