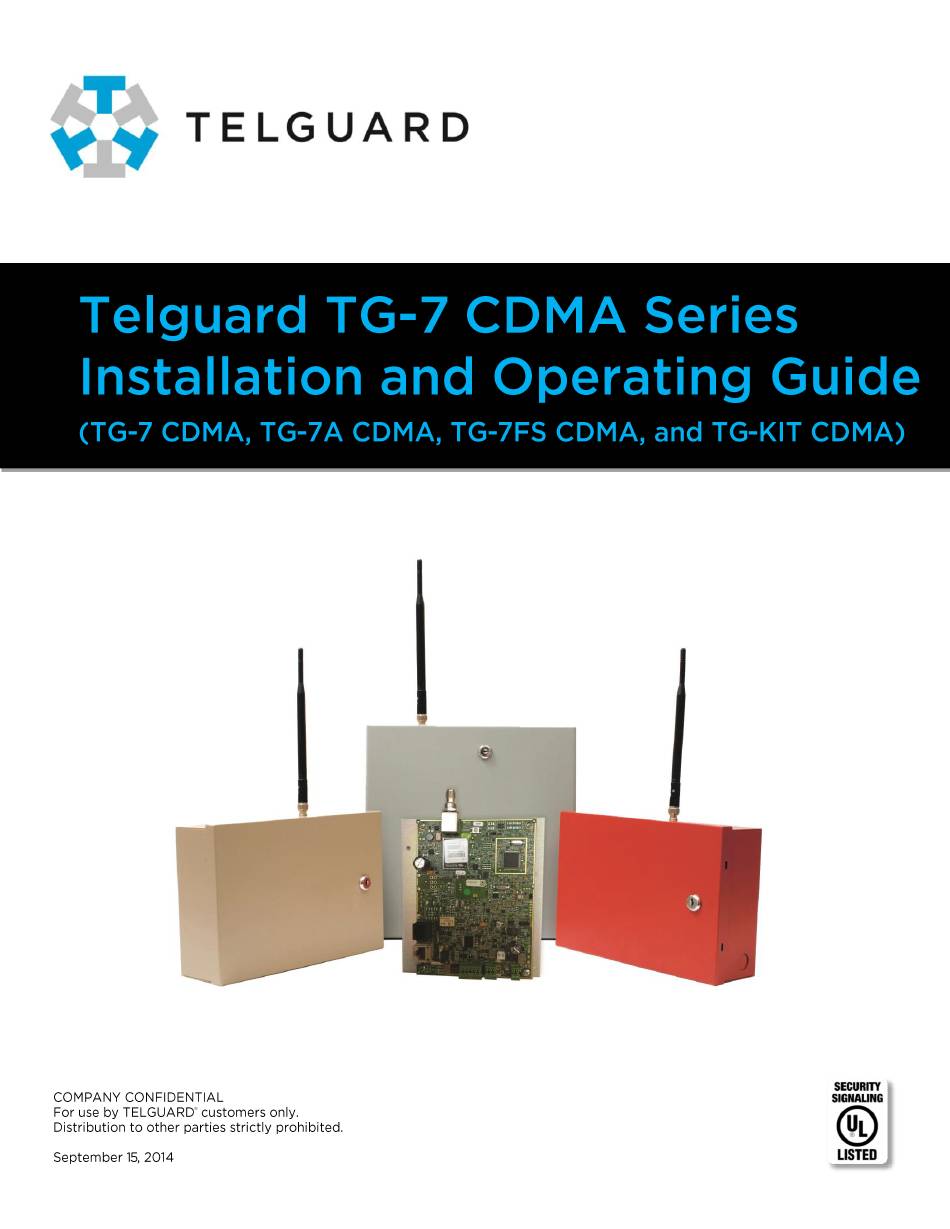

Telguard TG-7 CDMA Series Installation And Operating Manual
  1. Manuals
  2. Brands
  3. Telguard Manuals
  4. Security System
  5. TG-7 Series
  6. Installation and operating manual

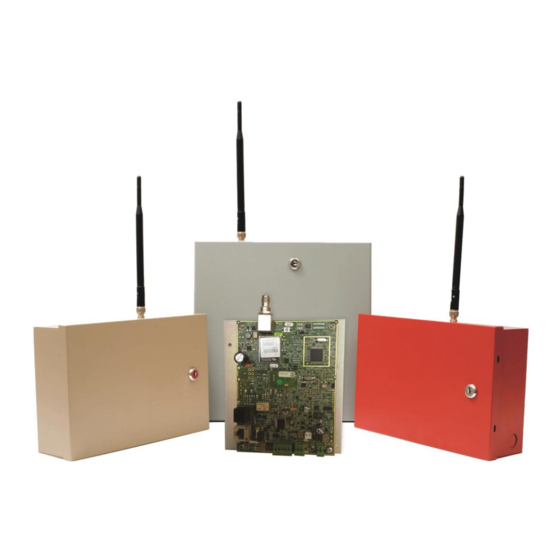

Telguard TG-7 CDMA Series Installation And Operating Manual

Hide thumbs Also See for TG-7 CDMA Series:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TG-7 CDMA Series and is the answer not in the manual?

Questions and answers

Related Manuals for Telguard TG-7 CDMA Series

Summary of Contents for Telguard TG-7 CDMA Series

  • Page 2 It is our goal at Telguard to always supply accurate and reliable documentation. If a discrepancy is found in this documentation, please mail or fax a photocopy of the corrected material to:...
  • Page 3 Telguard Cellular Alarm Communicator. Repair of this equipment should only be referred to qualified technical personnel. Telguard will repair or replace (our option) inoperative units for up to two years from date of manufacture. This excludes damage due to lightning or installer error. Unauthorized modifications void this warranty.
  • Page 4 PARTIES’ USE OR OPERATION OF THE PRODUCT: (i) FOR MISUSE OR IN A MANNER NOT CONTEMPLATED BY YOU AND TELGUARD OR INCONSISTENT WITH THE PROVISIONS OF THIS MANUAL; (ii) IN AN ILLEGAL MANNER OR AGAINST PUBLIC POLICY; (iii) IN A MANNER SPECIFICALLY UNAUTHORIZED IN THIS MANUAL;...

  • Page 5: Table Of Contents

    Pre-Installation Checklist Installation Summary Step 1: Register the Telguard Unit Step 2: Locate Unit and Measure Signal Strength (RSSI) Step 3: Verify Panel sends alarms over the Telco Connection for Back-up Path Step 4: Program, Activate & Transmit Alarms over Cellular Network...
  • Page 6 Configuring the TG-7FS Configuring a Sole Path at the Panel Appendix 4 – Compliance for UL Listed Installations Appendix 5 – Detailed Specifications Dialer to Interface Electronics Power Digital Cellular Radio Telco Interface Appendix 6 – Accessories 56047301 © 2014 Telguard...

  • Page 7: General Description And Operation

    The Telguard TG-7 CDMA Series has its own power supply which keeps the Telguard battery charged. The UL Listed equipment at the TCC plays a key role in the operation of every Telguard. All Telguard units utilize the TCC due to the panel alarm signal format encoding and decoding requirements used in packet-data transmissions over the digital cellular network.

  • Page 8: Features

    Note: The Telguard unit’s default program setting is for auto detection of the panel alarm format. Auto Format Detect feature allows the Telguard to adapt to receive any listed format. If the alarm panel’s format is changed for whatever reason, the Telguard will adjust to accept the new format.

  • Page 9: Link Supervision And Standard Line Security

    If this continually happens for a specified number of times within a specific time period, then the Telguard seizes the line and takes over as the main communication path for the alarm panel. If the Telguard goes into CFC, then it will not allow the panel to communicate via Telco again until the panel has been on-hook for 10 consecutive minutes.

  • Page 10: Complete Power Supervision

    CF is AC power failure followed by a complete discharge of the backup battery. The STC1 and STC2 trip outputs are activated and the visible indication is loss of all LED activity. Total loss of power to the Telguard does not prevent transmission of alarm messages from the alarm panel “through”...

  • Page 11: Telguard Remote Query Capability

    The query signal is held in the Telguard database at the TCC for review and is not forwarded on to the central station.

  • Page 12: Getting Ready

    Note: During high traffic periods, some cellular network providers may experience a delay in activation for up to 30 minutes. It is important that you register the Telguard device prior to leaving for the job site to ensure that the TG-7 CDMA Series is fully functional when installed.

  • Page 13: Installation

    Note: During high traffic periods, some cellular network providers may experience a delay in activation for up to 30 minutes. It is important that you register the Telguard device prior to leaving for the job site to ensure that the TG-7 CDMA Series is fully functional when installed.
  • Page 14 Connect Antenna and Temporarily Place Unit The Telguard unit is supplied with an antenna. In most cases the antenna can be mounted directly to the unit. If necessary, the antenna may be moved to a better signal location using optional cable and bracket accessories.

  • Page 15: Step 3: Verify Panel Sends Alarms Over The Telco Connection For Back-Up Path

    Special LED Indications during Activation If the Telguard fails the activation process, it will be displayed on the LEDs. If LED 1 and LED 4 are flashing, the Telguard has failed activation. The serial number is not in the database at ...
  • Page 16 Setup & Programming the Operating Parameters in the Telguard When the Telguard is received from the factory and is powered up for the first time, it is ready for installation, provided the default settings are what you want. The STC LED 2 will flash to indicate any failure conditions.
  • Page 17 5 = 90 seconds 2 = 60 seconds 4 = 80 seconds 6 = 99 seconds 0 = disabled, 1 = 10 seconds, 2=20 PPFC Delay seconds, … 15=150 seconds 0-24 hours, default = 2 hours AC Failure Delay 56047301 © 2014 Telguard...
  • Page 18 1-5 from the Telguard Programming Steps listed above. Then press 850, the Telguard will respond with 1 beep, then press 63, the Telguard will respond with 2 beeps, then press *, you will hear 2 beeps then hang up (this will change STC 1 trip output to report all system trouble conditions).

  • Page 19: Step 5: Connect Supervisory Trip Outputs

    If both a local signal and a control trip input are required, then external relays are needed to provide additional uncommitted contacts. NOTE: UL Listed installation of the TG-7 CDMA Series will at a minimum have the trip output to the alarm panel to indicate low A/C (ACFC) and low battery (LBC) conditions.

  • Page 20: Step 6: Connect And Test The Trip Input (Optional)

    When the trip input functionality is being used, closing the trip contact will cause the Telguard to send a message to the TCC, which in turn will cause the TCC to send a message to the central station. If the Telguard is configured to report restorals, the contact opening will also be reported.

  • Page 21: Step 7: Complete The Telguard Installation

    The message that is sent from the TCC to the central station is configurable in Telguard Online, or by a Telguard Customer Service Representative. The Telguard will automatically be configured with a unit template that allows configuration of the trip input feature, including the message that is sent to the central station. There is a default event configured for each alarm format, so that if the Telguard is configured with the butt-set to send trip input events to the TCC, a default notification will be sent to the central station.

  • Page 22: Appendix 1 - Connection Guide

    Appendix 1 – Connection Guide Wiring Diagrams The following wiring diagrams are for the Telguard TG-7 CDMS Series used for: Back-up path (Telco Primary & Cellular Back-up)  Primary path (Cellular Primary & Telco Back-up)  Sole path (Cellular Transmission Only) ...
  • Page 23 Used when the TG-7 CDMA unit is working in a system that involves a Telco connection. In this case, the Telco is connected through the Telguard unit, and it is the TG-7 CDMA that monitors the Telco and cellular connection. It is the TG-7 CDMA that makes the decision of which communication path to use for signal delivery.
  • Page 24 TAMPER 1 2 3 SWITCH EARTH GROUND NOTE Battery (12V 800MA) Conne ctor TRIP INPUT NOTE: Since there is no Telco connection, there is a single connection for communication—between the Alarm Panel and the TG-7 CDMA. 56047301 © 2014 Telguard...
  • Page 25 Installation Using Conduit COVER 8 IN. 8 IN. 6 IN. FRONT VIEW SIDE VIEW LISTED PULL BOX WITH LISTED OUTLET BOX AND RECEPTACLE LISTED PULL BOX WALL LISTED TRANSFORMER LISTED OUTLET BOX AND RECEPTACLE ULTPDE.VSD 56047301 © 2014 Telguard...

  • Page 26: Jack Assignments

    Digital Dialer 2 = Blue Connects alarm panel to STC LED 2 will flash 7 input/output of 4 = Green R (Ring) TG-7 CDMA Series for J16 (Black) times when alarm host alarm 5 = Red T (Tip) transmitting alarms to panel is not detected panel.

  • Page 27: Compatible Alarm Panels

    Compatible Alarm Panels Any UL Listed alarm panel that supports one of the following formats is compatible and may be used with the TG-7 CDMA Series: Pulse Formats:  3+1 pulse; 10pps, Double Round, 1400 Hz ack 3+1 pulse; 20pps, Double Round, 2300 Hz ack 3+1 pulse;...

  • Page 28: Appendix 2 - Troubleshooting Guide

    System Trouble Condition – RFC 6 Flashes* System Trouble Condition – DTF 7 Flashes* System Trouble Condition – PPFC Alarm panel idle (Telguard is primary or Sole Path) LED 3 MODE Yellow Flash *(1 sec) Alarm panel off-hook to transmit signals over cellular...

  • Page 29: Led Indicator Guide - Rssi Mode

    LED 5-3 = on, LED 2 = off  -80 dBm (Minimum signal strength when used as a Sole Path) 3½ LED 5-3 = on, LED 2 = slow flash  -70 dBm LED 5-2 = on  -60 dBm 56047301 © 2014 Telguard...

  • Page 30: Troubleshooting Quick Reference Table

    Return unit for repair Tone Failure on RMA. PPFC STC LED 2 flashes cont. 7 times. Wait for PPF restoral. The Telguard will not function Not Activated Activation LED 1 off. None until it is activated Press RSSI button twice to Activation Failed LED 1 and LED 4 flashing.

  • Page 31: Appendix 3 - Commercial Fire Sole Path Communicator Installation

    Insure Optimal Signal Strength Installation instructions for the Telguard TG-7 Series indicate that a signal strength of -90dBm is sufficient. While this is suitable for “normal” use, i.e. daily, weekly or monthly supervision, an additional level of signal integrity will minimize the false alarms supervision failures caused by interference and atmospheric fading.
  • Page 32 If this method is used, the installer must take care to ensure that dual path reporting is not enabled on the panel, or else simultaneous alarm reports from the two Telco connections may interfere with each other. TIP1 RING1 TIP2 RING2 56047301 © 2014 Telguard...

  • Page 33: Appendix 4 - Compliance For Ul Listed Installations

    7ah. 7ah. 7ah. 7ah. 7ah. backup requirement. * Must be connected to alarm panel UL Listed for Bank and Vault ** Use Mercantile Listed bell and bell housing O=Optional (Not Required) Y=Yes (Required) N=No (Not Allowed) 56047301 © 2014 Telguard...

  • Page 34: Appendix 5 - Detailed Specifications

    Appendix 5 – Detailed Specifications Dialer to Interface Electronics The patented integrated interface by Telguard, allows digital dialers to dial into the cellular radio network. Line voltage: -30 VDC into standard telephone device when on-hook.  Dial tone: Precision 350 + 440Hz +/- 1%. 10 digits dial out capability.

  • Page 35: Appendix 6 - Accessories

    35 feet of low loss high performance antenna cable and mounting bracket ACD-50 50 feet of low loss high performance antenna cable and mounting bracket ACD-100 100 feet of low loss high performance antenna cable and mounting bracket HGD-0 High Gain Directional Antenna EXD-0 External Omni-Directional Antenna 56047301 © 2014 Telguard...

This manual is also suitable for:

Tg-7 cdmaTg-7a cdmaTg-7fs cdmaTg-kit cdma
