Telguard TG-4 Quick Install Manual
  1. Manuals
  2. Brands
  3. Telguard Manuals
  4. Security System
  5. TG-4
  6. Quick install manual

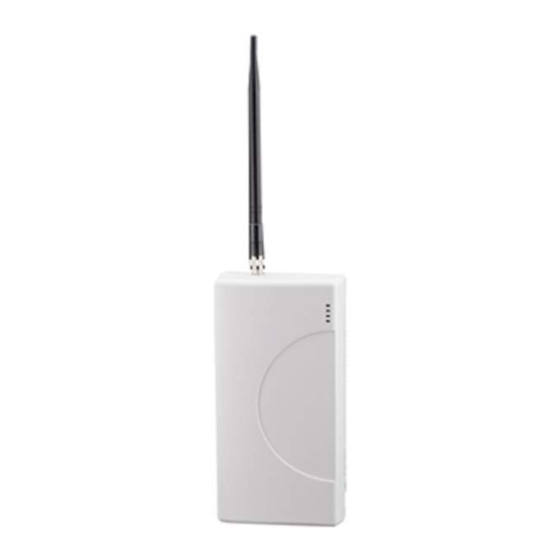

Telguard TG-4 Quick Install Manual

Cdma, residential & small business cellular alarm communicator
Hide thumbs Also See for TG-4:
1
2
3
4
5
6
7
8
Table of Contents
