Telguard T-1630M Classic Quick Installation Manual

TEST MODE 55# PROGRAMMING
(MOTOROLA CELLULAR HANDSET REQUIRED)
1. Power down unit and insert jumper JP0 (upper left-hand corner of
PCB).
2. Power up unit without the cellular handset being attached.
3. Wait about 30 seconds for unit to completely power up.
4. Attach cellular handset to the transceiver and power handset up.
5. The handset will display randomly flashing numbers.
6. Press the # key, the handset will display US', now press 55 #.
7. The handset will display the System ID (SID) Number.
Typically, the only programming changes required are as follows:
Entry 01 5 Digit System ID.
Entry 03 10 Digit Cellular Phone Number.
Entry 06 2 Digit Group ID Mark.
The star key (*) advances you through the programming locations.
Numbers in BOLD are Factory Defaults.
NAM Location:
01 - System ID Number (SID)
02 - A Option Byte
03 - 10 Digit Cellular Phone Number
04 - Station Class Mark (SCM)
05 - Access Overload Class (AOC)
06 - Group ID Mark (GIM)
07 - Security Code
08 - Unlock Code
09 - Service Level
10 - B Option Byte
11 - C Option Byte
12 - Initial Paging Channel (IPCH)
13 - Initial Paging Channel for System A
14 - Initial Paging Channel for System B
15 - Number of Dedicated Paging Channels
16 - D Option Byte
8. The handset will display " / " in the upper right-hand corner of the
display.
9. Power down the handset and unplug it.
10. Put jumper JP4 In for B carrier. Put jumper JP4 Out for A carrier.
11. Remove jumper JP0 and reset unit by powering it down and back up
again.
TELGUARD QUICK INSTALLATION GUIDE.DOC 05/21/98
Example:
00042 Press *
10101001 Press *
941-910-9911 Press *
08 Press *
15 Press *
10 Press *
000000 Press *
123 Press *
004 Press *
00000101 Press *
00000000 Press *
0333 or 0334 Press *
0333 Press *
0334 Press *
021 Press *
10111011 Press *
TELGUARD CLASSIC
QUICK INSTALLATION GUIDE
MODELS: T-1630M, T-1630MA, T-1110M, T-1210M, T-3100UL

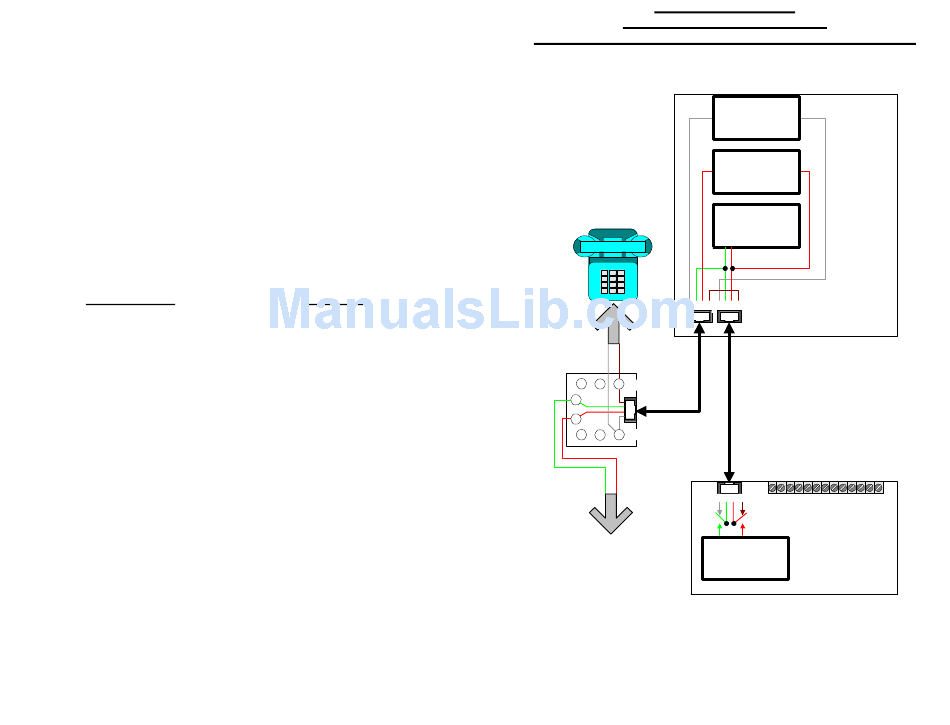

WIRING DIAGRAM
PREMISE
PHONES
T1 T R
R1
J1
RJ31X
6 7 8
R1
BROWN
5
T
GREEN
4
R
RED
3 1
2 T1
GREY
INCOMING
TELCO
The TELGUARD has to be the first device on the incoming telco line. No
telco device can be in front of or in parallel with the TELGUARD or a Line Fault
condition will occur.
TELULAR CORPORATION
Technical Support: 8:00AM – 5:00PM EST
House Phone
Current
Measurement
Dialer Current
Measurement
Telco Voltage
Measurement
TELGUARD
T1 T R
R1
J2
T1 T R R1
HOST C/C
Internal Circuitry
Telco Dialer
SIGPATH0.VSD
800-229-2326
