8.9.2.2 Assembly
Follow the directions above in reverse order.
Important:
Loosen the lower hinge pin's locking screw to let the hinge pin enter the
corresponding hole in the cabinet.
8.9.3

E-lock replacement

8.9.3.1 Removal
1. Disconnect the cables from the E-lock.
2. Remove four nuts and remove the E-lock. A small box spanner (10 mm) is
required to remove the lower E-lock due to limited space.
8.9.3.2 Assembly
Ensure that the dowel pin (see arrow) mates with the locking latches.
Page 94 CWT Compact Touch Installation and Maintenanace Manual

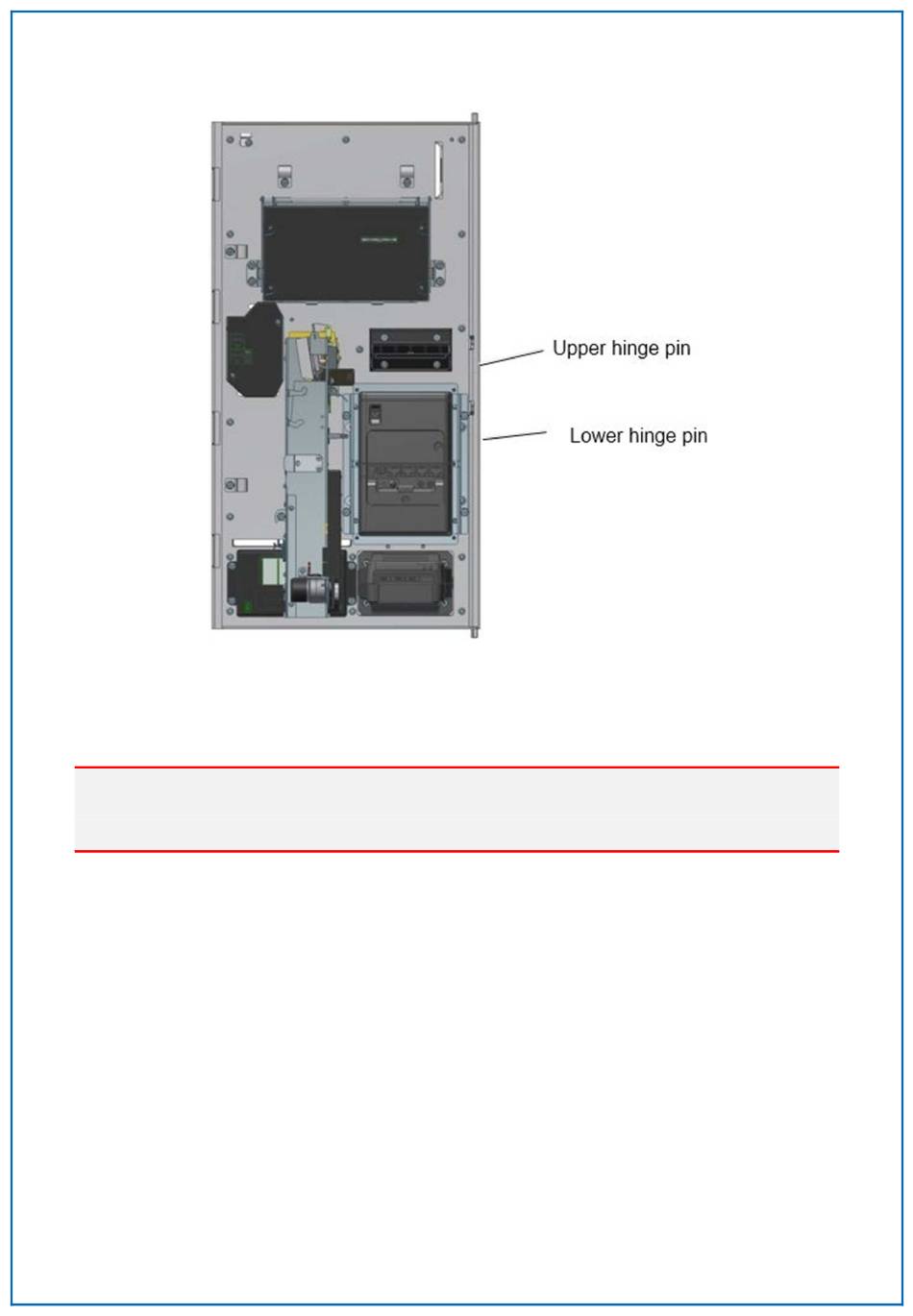

Figure 60, The door hinge mechanism.
