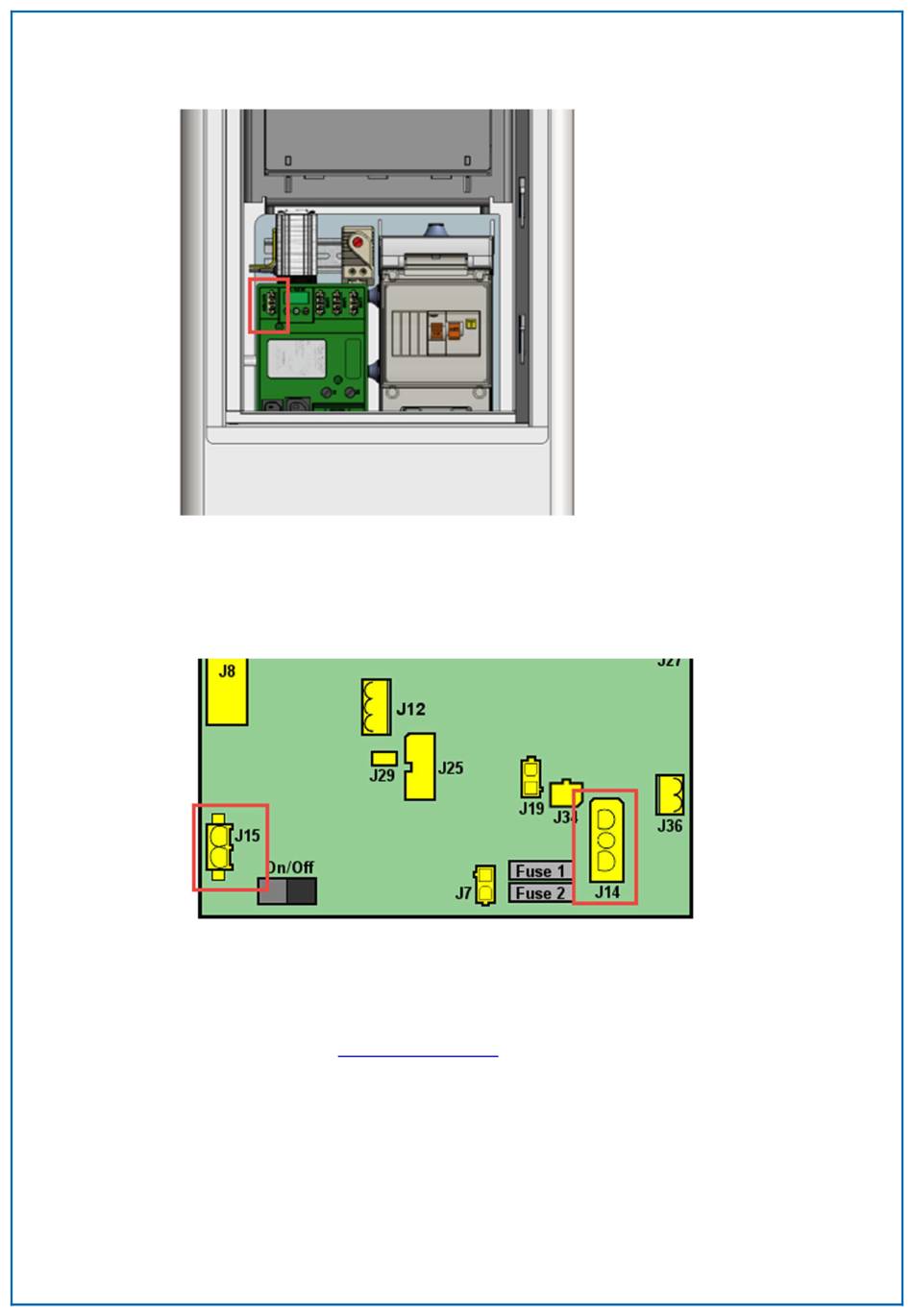

Figure 46, Connection of battery to 12V distribution panel
in a solar or battery-only powered terminal
Connect the 12 V supply cable from connectors J5 and J14 on the CPU board to
the battery.
5.2.4

Connecting to the mains power grid

Connect the incoming power cable to the terminal block (automatic residual
current device or fuse socket) in the pedestal (design may vary due to customer
requirements). See
Secure the cable using the strain relieving clamp. See Figure below.
Page 62 CWT Compact Touch Installation and Maintenanace Manual
Installing the battery.
Issue 13
