8.5
Coin verifier replacement
Removal
8.5.1
1. Ensure that there is sufficient free length of the verifier cable. Loosen more of
the cable from the cable clamp if necessary.
2. Keep the locking latch pulled out while you lower the coin verifier a bit and
remove it.
3. Disconnect the cable at the back of the verifier.

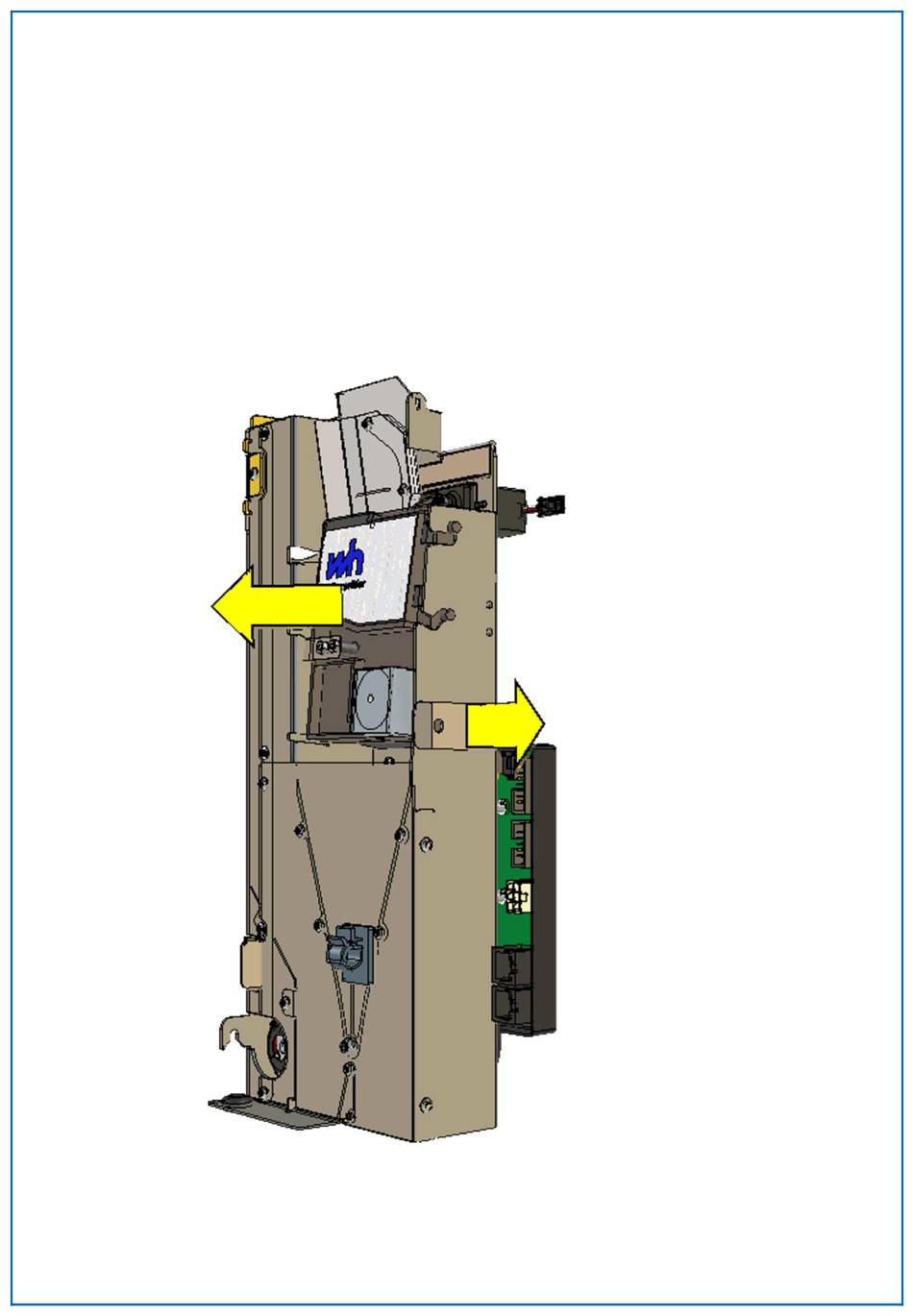

Figure 58, Removing the coin verifier Assembly
Install in reverse order.
Page 84
CWT Compact Touch Installation and Maintenanace Manual
Issue 13
