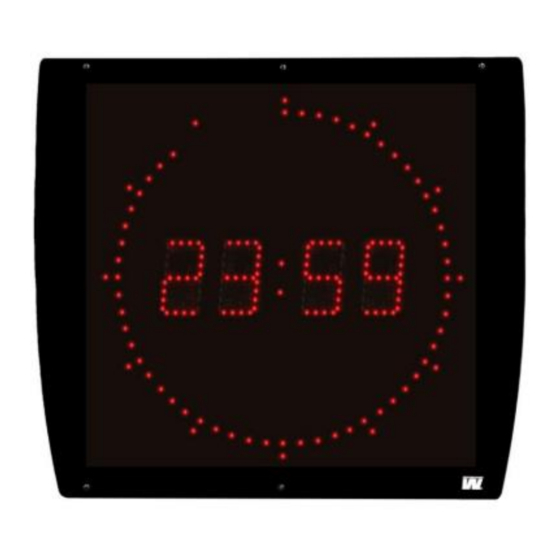

WESTERSTRAND CIRCLE LINE NTP User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Westerstrand Urfabrik AB
Box 133, SE-545 23 Töreboda
Tel.: +46 506 48000
User Manual
Westerstrand Tid System
User Manual
CIRCLE LINE
NTP
190420-01
DOK11108en02
2023-03-31
www.westerstrand.se
info@westerstrand.se

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CIRCLE LINE NTP and is the answer not in the manual?

Questions and answers

Related Manuals for WESTERSTRAND CIRCLE LINE NTP

Summary of Contents for WESTERSTRAND CIRCLE LINE NTP

  • Page 1 User Manual DOK11108en02 Westerstrand Tid System 2023-03-31 User Manual CIRCLE LINE 190420-01 Westerstrand Urfabrik AB Box 133, SE-545 23 Töreboda www.westerstrand.se Tel.: +46 506 48000 info@westerstrand.se...

  • Page 2: Table Of Contents

    DOK11108en02 2023-03-31 2 (28) Index General ..............................3 Safety ............................... 3 Functional description ..........................4 Synchronisation ............................4 Installation ............................... 5 Connection .............................. 6 Configuration using a WEB browser ...................... 11 Firmware Download / Wunser ......................25 Technical specification .......................... 27 Abbreviations ............................

  • Page 3: General

    DOK11108en02 2023-03-31 3 (28) General Digital clock is for indoor application with time display that has 4 digits and colon as time. The digits consist of 7 segments. The Digital clock can be configured to show the time/date/temperature alternately in 0- 25sec intervals.

  • Page 4: Functional Description

    DOK11108en02 2023-03-31 4 (28) Functional description Start up When the power is switched on, the clock will display the time from the internal timekeeper. If no correct time, the display will show lines. After some seconds, the clock tries to receive a correct time message from an NTP server and then display correct time.

  • Page 5: Installation

    DOK11108en02 2023-03-31 5 (28) Installation Wall mounted • Unscrew 4 screws, 2 pieces on each side. Remove the front and mount the back plate on the wall, using 4 screws suitable for the wall. We recommend Ø4mm and 30mm long screws.

  • Page 6: Connection

    DOK11108en02 2023-03-31 6 (28) Connection • The connecions are made on the inside of the back plate. Unscrew the cover and put aside without damaging the wire. • If operated by synchronisation, check the strapping according to the drawing page 6. Connect the cables according the schema page 5 and 6.
  • Page 7 DOK11108en02 2023-03-31 7 (28) Connection temperature sensor or temperature/ humidity sensor (option). Temperature sensor connection 1. Brown 2. Black 5. Screen...
  • Page 8 DOK11108en02 2023-03-31 8 (28) Programming Configuration of network settings, light intensity and other parameters is done via a WEB- browser. Some of the parameters can also be set using three buttons located at one side of the clock. Please note if default settings are used no configuration is needed. The programming is made with push buttons placed on the side of the clock (see below).
  • Page 9 DOK11108en02 2023-03-31 9 (28) Manuel programming time ti ne Push [F] until display shows: yy 95 Push [P] display shows: year Push [P] until desired year (00-99) Accept with [F]. nn 1 Display show: month Push [P] until desired month (1-12). Accept with [F].
  • Page 10 DOK11108en02 2023-03-31 10 (28) Setting light intensity The light intensity for the digits can be adjusted in 8 levels. An automatic dimmer function regulates the light intensity. di sp Push [F] until display shows: Push [P] di 1 Display shows: .

  • Page 11: Configuration Using A Web Browser

    DOK11108en02 2023-03-31 11 (28) Configuration using a WEB browser Login It is possible to login as administrator or guest. The administrator has the rights to read and to write/change configuration. A guest can read only. Username admin or guest. Password Enter a password.
  • Page 12 DOK11108en02 2023-03-31 12 (28) Status The status of the watch is shown on the first page of the function menu. Name Symbolic name. The name is set in function General UTC/LT Current time Timezone Offset to UTC during normal time (=winter time). The clock IP address Netmask Shows the netmask setting...
  • Page 13 DOK11108en02 2023-03-31 13 (28) Alarms Shows if the Clocks has any alarms. The following alarm texts can be displayed. No Alarms = Clock OK. Not synchronised = The Clock is not synchronised. 5-minute limit = The received time message is more than 5 minutes wrong compared to internal time.
  • Page 14 DOK11108en02 2023-03-31 14 (28) Network Enter general network parameters.
  • Page 15 Syslog: Syslog server IP address. Send syslog messages if checked. Identity access: Identify access is used in combination with application software Wunser. Wunser is a PC program that is used for finding and doing light configuration on Westerstrand Ethernet products. Firmware updates are also handled by Wunser.
  • Page 16 Trap type v2 = Trap according to SNMPv2 NTP settings General Description Westerstrand NTP Clients has several features to achieve a reliable and accurate time. The configuration of the different facilities is flexible, and the features can be selected or deselected depending on each customer’s individual needs.
  • Page 17 DOK11108en02 2023-03-31 17 (28) DHCP option 042 Ask for time using the server IP addresses received from the DHCP server (DHCP option 0042). Maximum 2 NTP servers are set automatically by option 0042. Broadcast Accept broadcast/multicast time messages. Broadcast address: 255.255.255.255 Multicast Accept multicast time messages.
  • Page 18 DOK11108en02 2023-03-31 18 (28) Remove time at alarm This function is used to define how the clock should behave during a NTP synchronization alarm. See Alarm timeout below. If the checkbox is checked the clock will show --:-- in case of synchronization alarm.
  • Page 19 DOK11108en02 2023-03-31 19 (28) NTP advanced Advanced NTP settings Client mode FIRST. Always use the first server in the list if available. If not available take next one. This suits installations where it is more important to know exactly from where the clients get time than to have the most accurate time.
  • Page 20 DOK11108en02 2023-03-31 20 (28) Clock Used to configure general clock parameters. Leading zero Time: not checked; " 8:29",checked; "08:29". Date: not checked; " 7.9 ", checked "07.9 " (Sep 7). 12h clock Show e.g. " 2:49" (12h clock) instead of "14.29" (24h clock). Show Time Loop-time in seconds for time.
  • Page 21 DOK11108en02 2023-03-31 21 (28) Show Humidity Loop-time in seconds for humidity. (Use if sensor is used.) Show Temp Loop-time in seconds for temperature. Temp Offset Adjust the temperature reading (-9 to +9 °C). Alarm Set temperature bounds. The temperature alarm “Temp is out of bounds” will be active when the temperature reading is below the min value, or above the max value.
  • Page 22 DOK11108en02 2023-03-31 22 (28) General Used to configure general parameters. Name Symbolic name, maximum 64 characters. This name is shown in the status menu and is also included in SNMP and Syslog messages. Example: Digital Clock, reception. Contact Contact person. This information is included in SNMP messages. Location The place where the clocks is located.
  • Page 23 DOK11108en02 2023-03-31 23 (28) Firmware Download Function to enable firmware download. See also section Firmware Download. Restart Restart the Clock. Backup/Restore Backup Save the clock configuration to a file. The clock suggests the Name field as filename (here MyLanur229.txt). Click [Backup]. Passwords are not saved.
  • Page 24 DOK11108en02 2023-03-31 24 (28) Advanced Functionality to configure hardware settings for the clock, and to do a factory reset of the clock. Changing the hardware settings may cause the clock to function improperly. Display type Set type of display. (For Circle Line chose “Circle Line”) With Second Set whether the clock has second digits.

  • Page 25: Firmware Download / Wunser

    The Clock has support for firmware upgrade via the network. The utility program Wunser is used for firmware upgrade. Wunser can be downloaded using the following link: http://www.westerstrand.com/archives/download.htm If checkbox Firmware Download is clicked, then the application jumps to a boot-loader. If no firmware upgrade take place within 60 seconds, then the old application is restarted again with the current firmware.
  • Page 26 DOK11108en02 2023-03-31 26 (28) Reset Button At a normal start (Reset Button is not pressed) then the green LED is flashing about 2 seconds. Then the green LED is turned off. When the clock is synchronized the green LED is turned on. Action when the Reset Button is pressed: Power up The application stays in boot-loader mode for ever and waits for...

  • Page 27: Technical Specification

    DOK11108en02 2023-03-31 27 (28) Technical specification General Art. no.: 190420-01 Denomination: Circle Line NTP Mounting/Installation: Single sided, wall mount Digits: Single line red LED. Indicating time in HH:MM Digit height: 50 mm Synchronisation: Accuracy 0,1 sec/24 h at 22 C (free-running mode)

  • Page 28: Abbreviations

    DOK11108en02 2023-03-31 28 (28) Abbreviations Daylight Saving Time DHCP Dynamic Host Configuration Protocol Domain Name System. The Internet's system for converting alphabetic names into numeric IP addresses. Light Emitting Diode Local time Physical address (Media Access Control) Network Time Protocol PING Packet Internet Grouper SNMP...
