WESTERSTRAND LUMEX 7 User Manual

Hide thumbs Also See for LUMEX 7:
Table of Contents

Advertisement

Quick Links

Download this manual
Digital Clock ........................................................................................................................................................... 1
User Manual ............................................................................................................................................................ 1
General ................................................................................................................................................................ 2
Installation ........................................................................................................................................................... 2
Synchronisation ................................................................................................................................................... 5
NTP ..................................................................................................................................................................... 5
Stand alone .......................................................................................................................................................... 5
Configuration using R F P buttons ...................................................................................................................... 6
Configuration using a WEB browser ................................................................................................................... 9
Firmware Download / Wunser .......................................................................................................................... 22
Reset Button ...................................................................................................................................................... 22
Technical specification ...................................................................................................................................... 23
Abbreviations .................................................................................................................................................... 24
WESTERSTRAND URFABRIK AB
P.O. Box 133
SE-545 23 TÖREBODA
WESTERSTRAND

User Manual

Digital Clock

LUMEX 7 NTP PoE
Tel. +46 506 48000
Fax. +46 506 48051
Internet::
http://www.westerstrand.se
E-mail:
info@westerstrand.se
Document: DOK18274en02
Author: PM
Date: 2019-11-08
Page: 1 of 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUMEX 7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WESTERSTRAND LUMEX 7

Summary of Contents for WESTERSTRAND LUMEX 7

  • Page 1: Table Of Contents

    Document: DOK18274en02 WESTERSTRAND Author: PM Date: 2019-11-08 Page: 1 of 24 User Manual Digital Clock LUMEX 7 NTP PoE Digital Clock ................................1 User Manual ................................1 General ................................2 Installation ................................2 Synchronisation ..............................5 NTP ..................................5 Stand alone ................................5 Configuration using R F P buttons ........................

  • Page 2: General

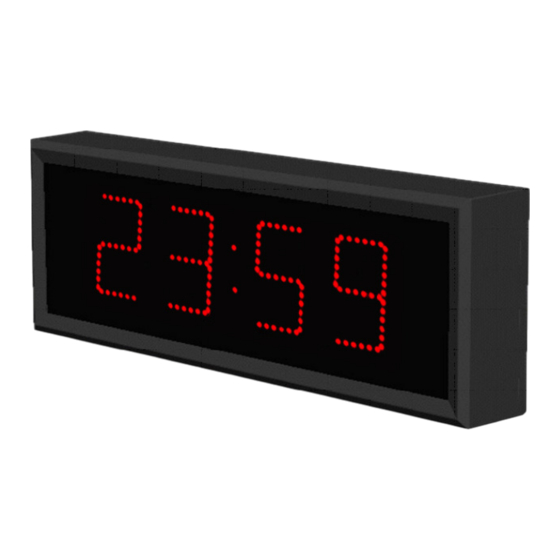

    General LUMEX 7 is a Digital Clock for indoor use, displaying time in hours, minutes and seconds. The time can be displayed in either 12 or 24 hour format. The clock can also be configured to show the time and date alternately.
  • Page 3 Use either 4.2 x 16 or 4.2 x 22 depending on the cable diameter. • Connect the flat ribbon cable and assemble the front part, using the 6 black screws. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA...
  • Page 4 Green = Clock synchronised from Black = Clock is unsynchronised NTP server POWER Power indication Green = Power OK Black = No power WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se...

  • Page 5: Synchronisation

    The colon between hours and minutes will flash when the clock is in sync and the time message is accepted. Stand alone If the clock does not have an external synchronisation, it operates standalone. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se...

  • Page 6: Configuration Using R F P Buttons

    Push [P] until desired date (1-31). Accept with [F]. hh 12 Display shows : hour. Push [P] until desired hour (0-23). WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se...
  • Page 7 Display shows: Light intensity 1 (weakest), 8 (strongest). Push [P] for desired light intensity. Accept with [F]. Push [R] for entering base mode or push [F] for next function. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA...
  • Page 8 168 Push [F]. Push [F]. In this example the IP address is 192.168.2.51 Push [R] for entering base mode or push [F] for next function. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax.

  • Page 9: Configuration Using A Web Browser

    A guest can read only. User name admin or guest. Password Enter a password. Default password is password. Efter login visas en funktionsmeny: WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se...
  • Page 10 5-minute limit = The received time message is more than 5 minutes wrong compared to internal time. The message is not accepted. Authentication = The MD5 authentication has failed. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se...
  • Page 11 TO= Timeout in minutes before NTP alarm. The clock goes to 12:00. Clock Clock [14:24] = Current data on display Dimmer=7/8:Just now dimmer value 4. Maximum 8 Sensor=22808: Current light sensor data 0-65535. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA...
  • Page 12 Document: DOK18274en02 WESTERSTRAND Author: PM Date: 2019-11-08 Page: 12 of 24 Network Enter general network parameters WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se...
  • Page 13 Westerstrand Ethernet products. Firmware updates are also handled by Wunser. Wunser uses UDP port 9999 when communicating with other Westerstrand products and UDP port 69 when downloading new firmware. These ports can be open, closed or prepared for encrypted communication.
  • Page 14 In addition to these rules there are some more features such as synchronization limits and a special clock discipline algorithm. This algorithm measures the oscillators drift over a longer period and makes compensations for the drift. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se...
  • Page 15 Ask for time using the server IP addresses received from the DHCP server (DHCP option 0042). Maximum 2 NTP servers are set automatically by option 0042. Broadcast Broadcast: Accept broadcast/multicast time messages. Broadcast address: 255.255.255.255 WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA...
  • Page 16 Saving Time (see below) is checked it will also and adjust for DST (Daylight Saving Time) automatically. Daylight Saving Time If checked then this timezone uses DST (Daylight Saving Time). WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se...
  • Page 17 Check box = On ; synchronise only if time server is operating on Stratum 1 level. Authentication If authentication is activated: Use MD5 authentication. Server ID/Key: Authentication data for the external NTP servers configured in the NTP server list. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se...
  • Page 18 Time: not checked; " 8:29",checked; "08:29" Date: not checked; " 7.9 ", checked "07.9 " (Sep 7) 12h clock Show e.g. " 2:49" (12h clock) instead of "14.29" (24h clock) WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se...
  • Page 19 Current sensor value 0..65535 to the right. Disable buttons Disable buttons on the clock. When the buttons are locked the only thing that can be done using the buttons is to read the IP-address. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se...
  • Page 20 Used to configure general parameters. Name Symbolic name, maximum 64 characters. This name is shown in the status menu. Use underscore ( _ ) between words. Example: Digital_Clock_Front_Desk WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA...
  • Page 21 Restore Select file ([Välj fil]). Here file myLanur229.txt was selected. Click [Restore]. The clock restarts. Refresh the page. The MAC- and IP-address never are restored. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax.

  • Page 22: Firmware Download / Wunser

    Cold reset. The application restarts immediately in DHCP mode. If no DHCP server exist, the clock will take default address 192.168.3.10 after 60 seconds. All parameters except the MAC address will take default values. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se...

  • Page 23: Technical Specification

    Web-Based (requires web browser) or via Telnet Additional info.: Support for DNS Power supply PoE version: IEEE 802.3af / 15W alt. 12V DC battery eliminator Only battery eliminators approved by Westerstrand may be used. Environmental Temperature range: -20 ºC till +55 ºC. Housing Housing:...

  • Page 24: Abbreviations

    Physical address (Media Access Control) Network Time Protocol PING Packet Internet Grouper SNMP Simple Network Management Protocol Coordinated Universal Time WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail:...
