WESTERSTRAND mini WDP-Y User Manual

Quartz master clock
Hide thumbs

Advertisement

Quick Links

Download this manual
General
Options
Installation
Configuration
DCF synchronisation
RDS/GPS synchronisation
Minute impulse synchronisation
Programming
General
Functions
Manual control
Set time– function F1
Set slave clock time– function F2
Relay output programming – function F3
Relay impulse length programming – function F4
Setting of impulse length for slave clock output – function F5
Setting of synchronisation source – function F6
Special functions
Program reset
Technical data
Programming form
WESTERSTRAND URFABRIK AB
Box 133
SE-545 23 TÖREBODA
WESTERSTRAND
User manual
Quartz master clock
WDP-Y mini
121346-00
R
L
N
Tel. +46 506 48000
Fax. +46 506 48051
F
P
Internet::
http://www.westerstrand.se
e-mail:
Document: 1632en03.doc
Author: CAn
Date: 2003-09-03
Page: 1 of 12
2
2
3
4
4
4
4
5
5
5
5
6
7
8
9
9
10
10
10
11
12
info@westerstrand.se

Advertisement

loading
Need help?

Need help?

Do you have a question about the mini WDP-Y and is the answer not in the manual?

Questions and answers

Related Manuals for WESTERSTRAND mini WDP-Y

Summary of Contents for WESTERSTRAND mini WDP-Y

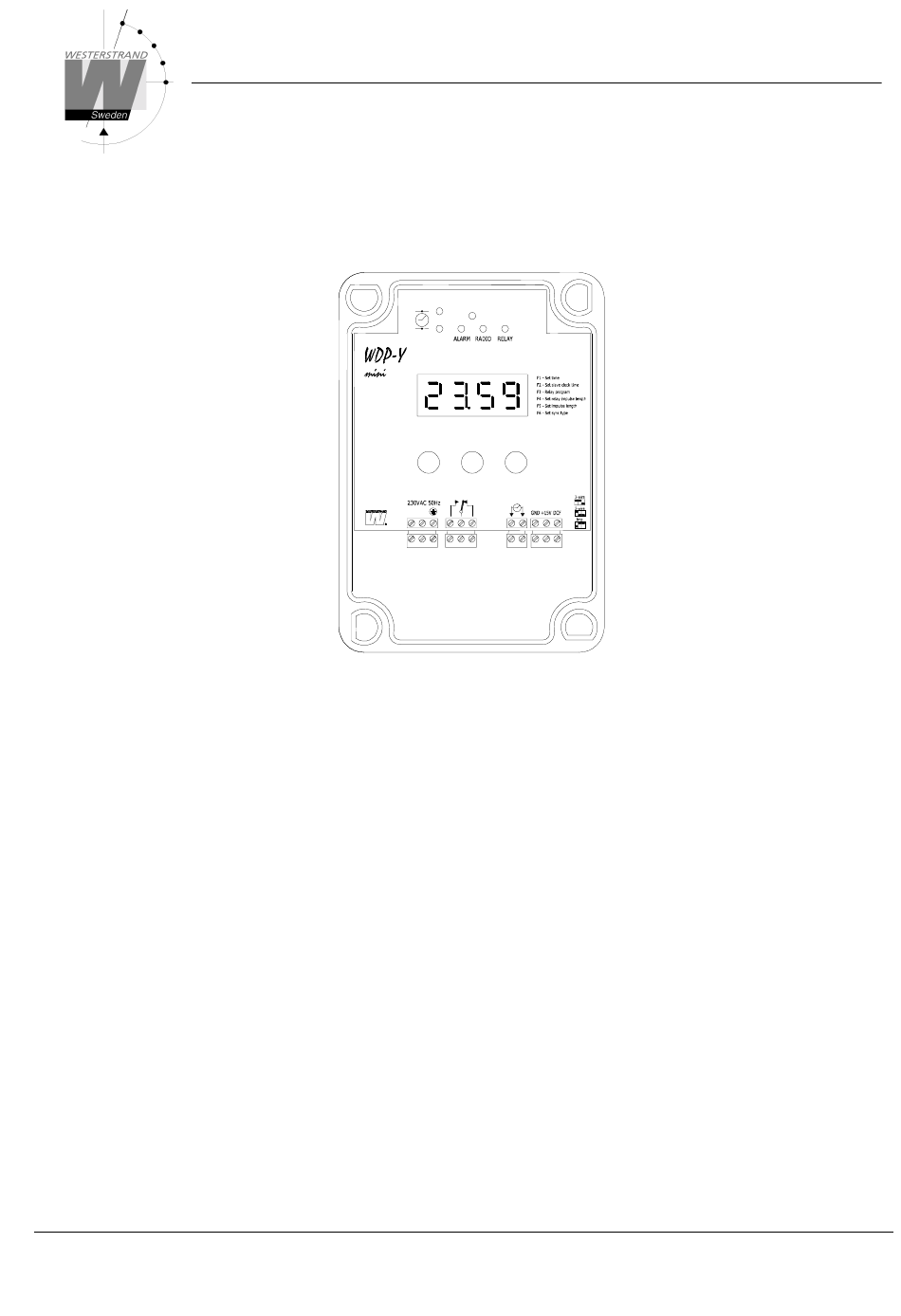

  • Page 1 Setting of impulse length for slave clock output – function F5 Setting of synchronisation source – function F6 Special functions Program reset Technical data Programming form WESTERSTRAND URFABRIK AB Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax.
